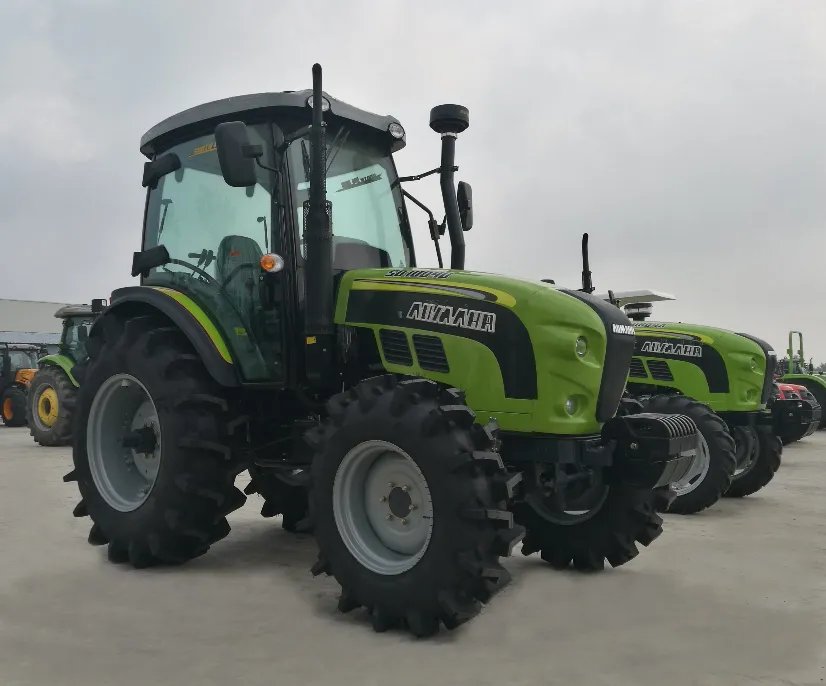

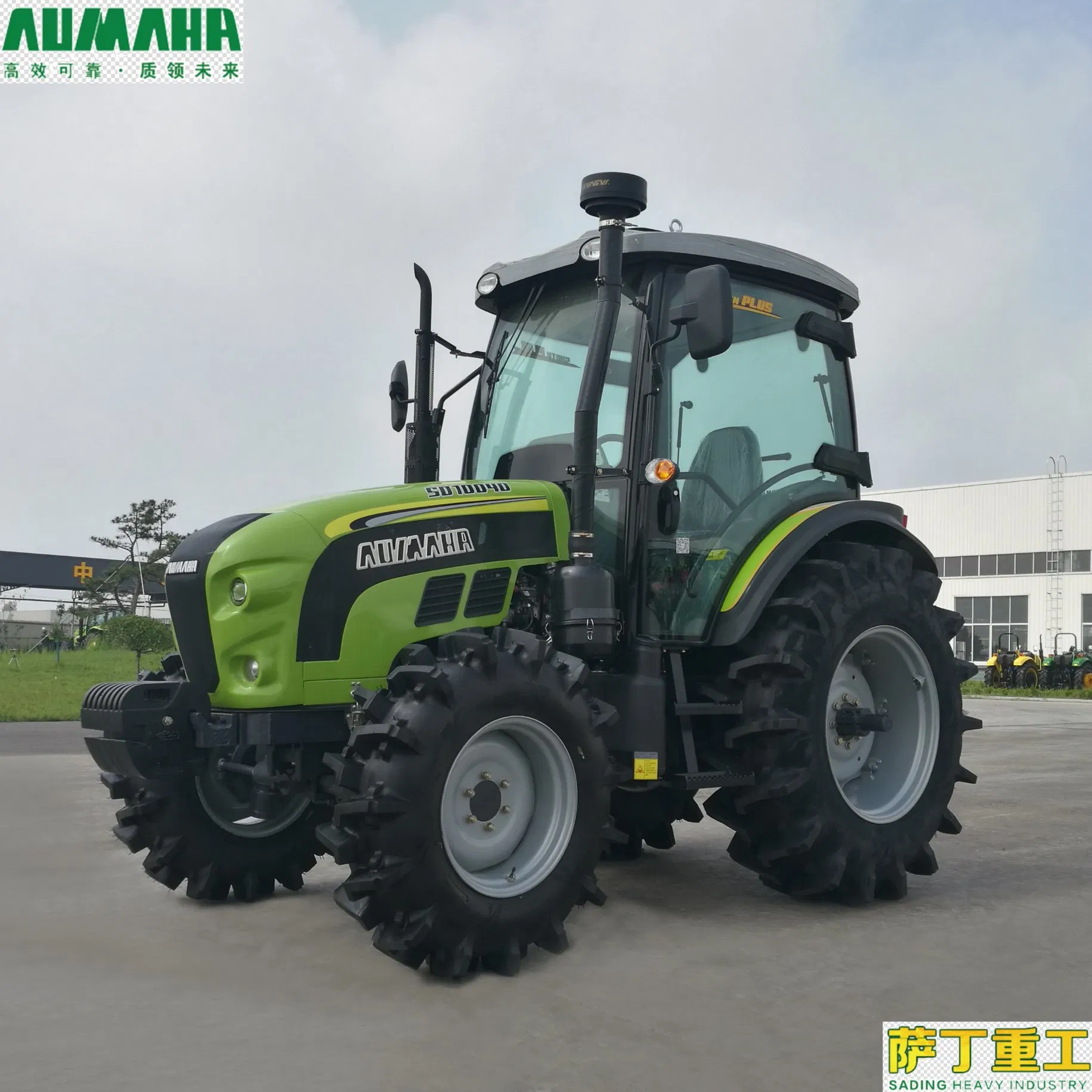

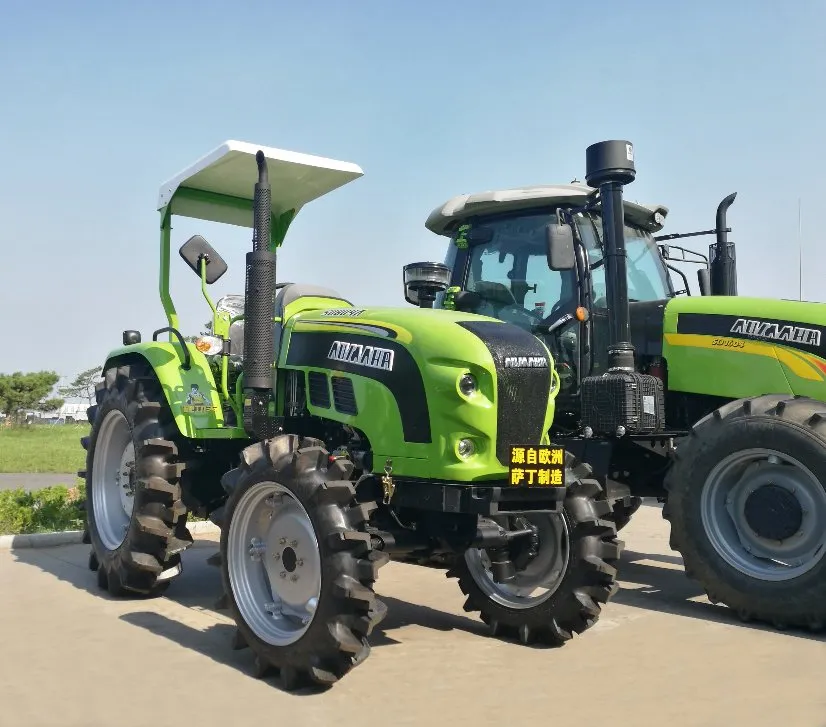

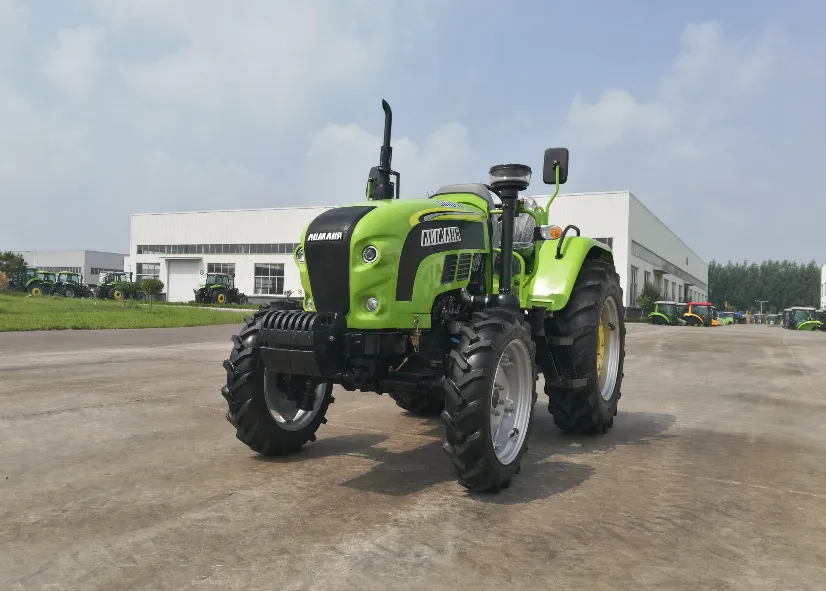

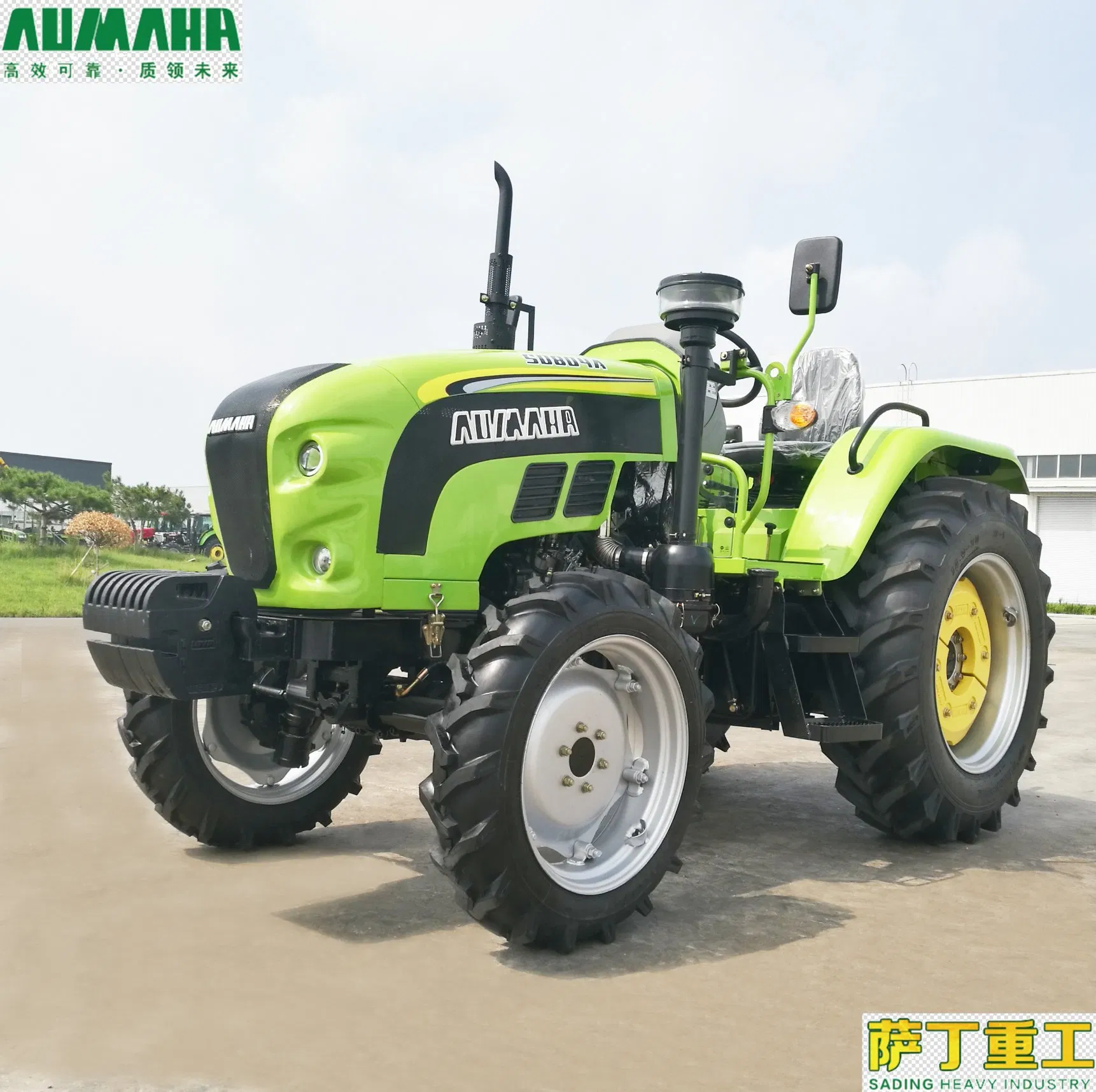

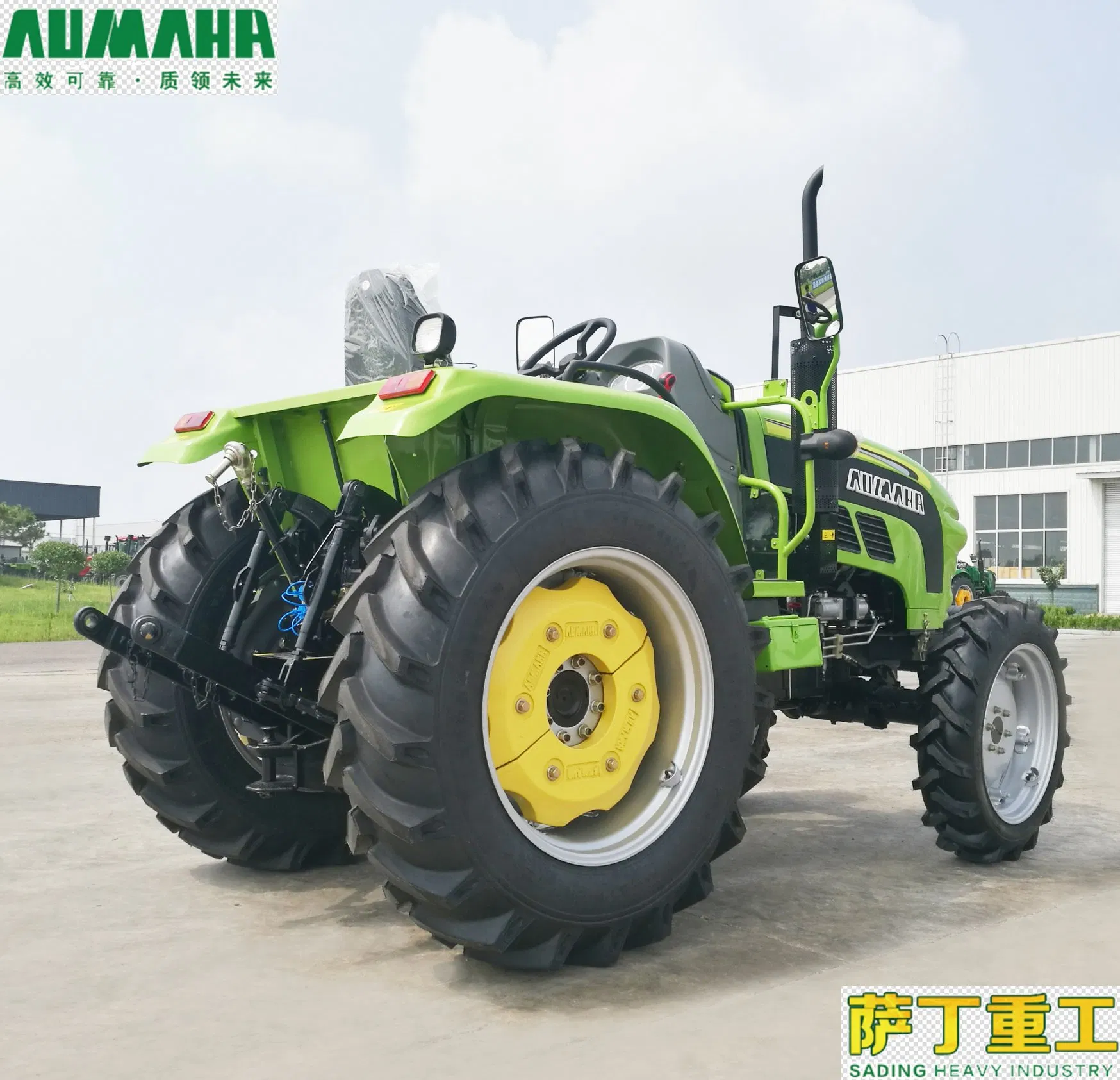

Wood Farm 80/90/100HP Paddy-Field Tractor Farm Agriculture Tractor
1. Famous brand four-cylinder direct injection diesel engines with sound fuel efficiency and high torque output;2. Center console with simple structure, high cost efficiency and easy maintenance, side console for driving and riding comfort;3. Double-stage clutches for different needs and operation; ......
Send Inquiry
Product Description
1. Famous brand four-cylinder direct injection diesel engines with sound fuel efficiency and high torque output;
2. Center console with simple structure, high cost efficiency and easy maintenance, side console for driving and riding comfort;
3. Double-stage clutches for different needs and operation;
4. Special ceramic material for friction plates with high reliability as well as low use and maintenance cost;
5. Brand-new 12F+12R shuttle-type gear shifting with quick forward and
reverse gear shifting;
6. Farmland tires, grass tires, engineering tires and many other tires to meet needs of different working conditions.
| Items | Unit | Parameter |
| Model | SD804/904/1004 | |
| Name | Wheel tractor | |
| Drive type | 4WD | |
| Usage | Farm, Transport | |
| Overall dimension: | mm | 4050×1820×2610 |
| Cabin | ||
| Type | Latest safe cabin , Optional: Fan or Heater or A/C | |
| Engine: | ||
| Type | 4 cylinder, in-line, water cooled, four-stroke | |
| Aspiration | Natural | |
| Cylinder | 4 | |
| Bore x stroke | mm | ø108×125 |
| Displacement | L | 4.578/ |
| Compression ratio | 17.5:1 | |
| Rated power | Kw(hp) | 58.8/66.1/71.9(80/90/100) |
| Rated Rev. | r/min | 2300 |
| Steering, Brake system | ||
| Steering type | Hydraulic | |
| Brake type | Oil bath type | |
| Transmission system | ||
| Clutch | Double-stage | |
| Transmission box | 4x3x(1+1) combined type | |
| Shift gear mode | Engagement sleeve | |
| Running system | ||
| Frame type | New enhanced frameless | |
| Tire (Front/Rear) | 8.3-24-/14.9-30, Optional: 12.4-24/ 18.4-30 | |
| Tire pressure | kPa | 150/180 |
| Working device | ||
| Suspension system mode | Split type | |
| Suspension device type | Post-position three point suspension | |
| Category of suspension system | II category | |
| Adjusting way | Force and position | |
| Gear pump | CB-F316 | |
| Hydraulic output device | Double-way valve | |
| Safety valve open pressure | Mpa | 17.5-18 |
| PTO shaft type | Post-position, Semi-Independent | |
| PTO shaft spline | 6/8 | |
| PTO shaft spline diameter | ø35/ ø38 | |
| PTO shaft rev. | 540/760, Optional: 540/1000 | |
| Engine cover | AUMAHR streamline | |
Pre-sales service
1. 24 hours online. Anything will be quickly replied.
2. Professionally and humanization modern design.

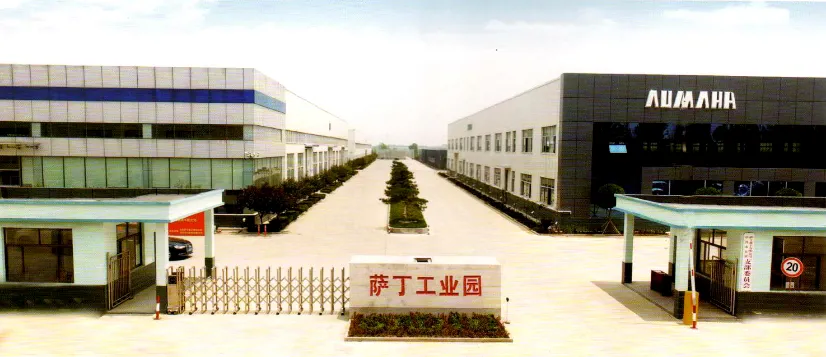

3. Welcome to visiting our factory, products and design center.
Selling service
1.Test and inspect every tractor carefully and seriously.
2. Send the tractor photos of your order before packing for your confirmation

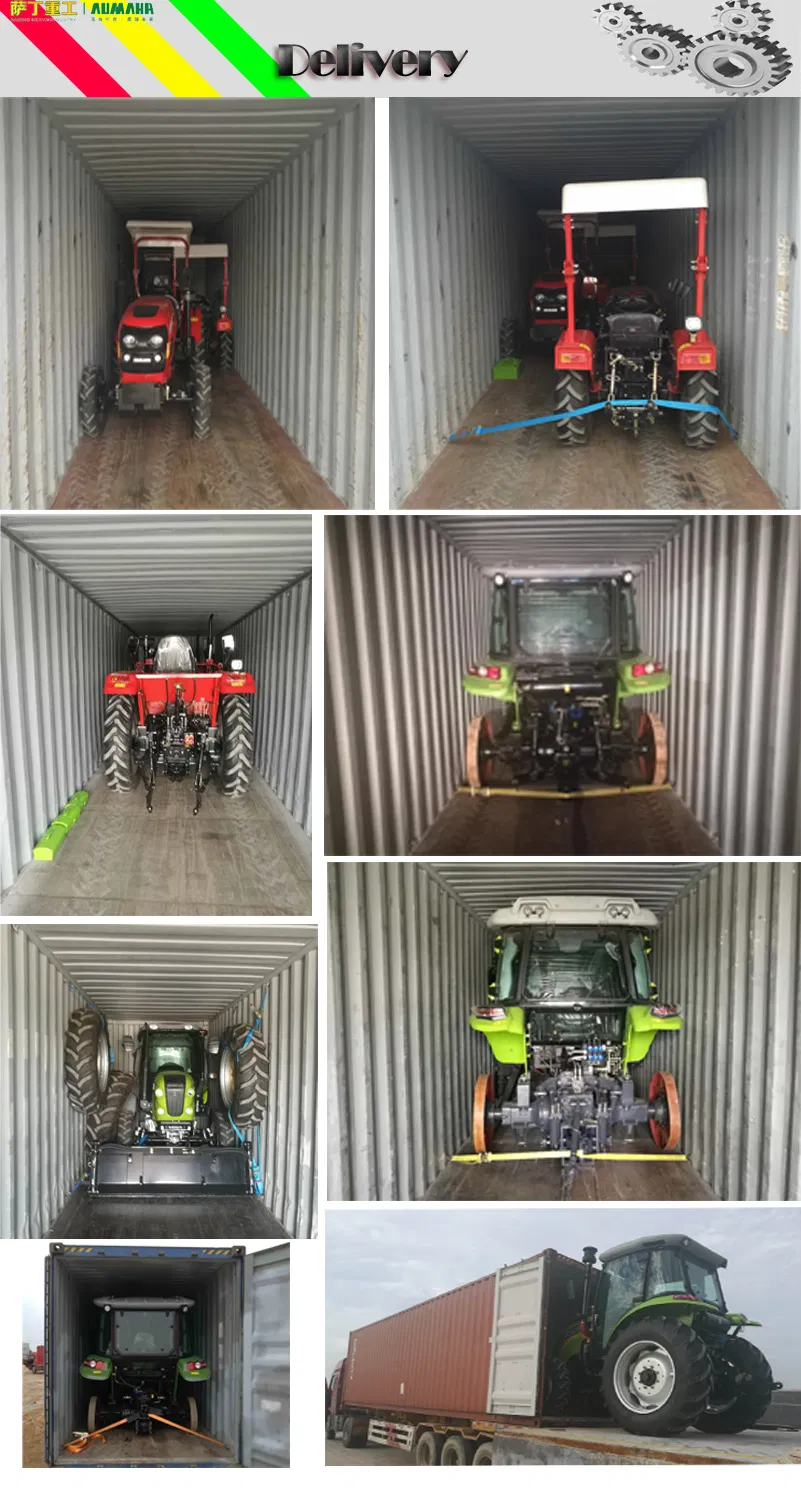

3. After loaded we will send you the transport information and arrival time. Finally, send all original documents to you by Express or Telex release.
After-sales service
1. 24 hours online to solve any problem.
2. English manual, Spare parts catalogue and technical support.
3. Free training for how to install the machine and maintenance.
