John Deere 100HP 1004 Farm Tractor
john deere 100hp 1004 farm tractor specific technical information :Mode No.5E-1004Engine model No.John deere 4045Engine power(kw)73.6Rated engine speed 2300Fuel system High pressure common rail Gearbox Dry clutch,12F+4RPTO (r/min)Standard 840,optional 650/840Power output (kw)63.5Traction (kw)&ge......
Send Inquiry
Product Description

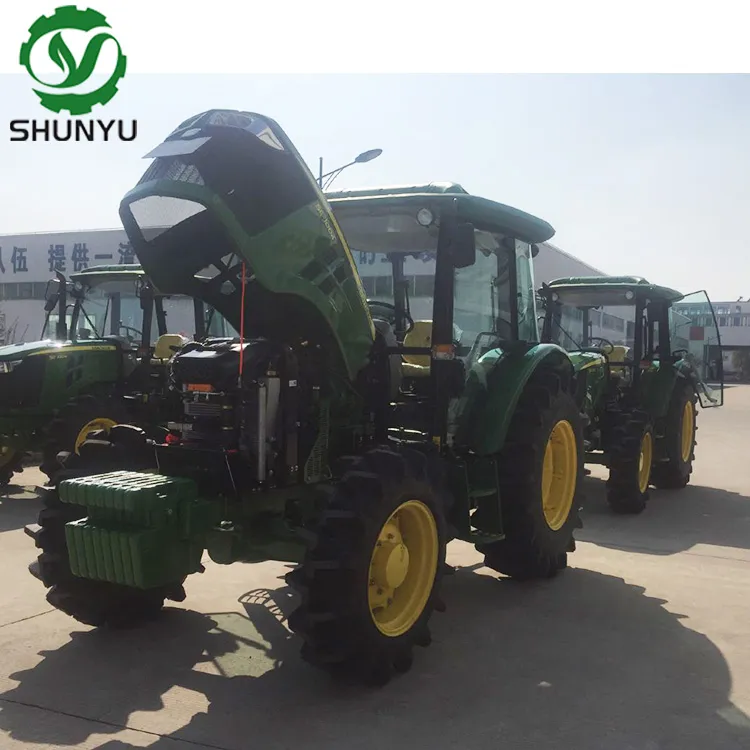

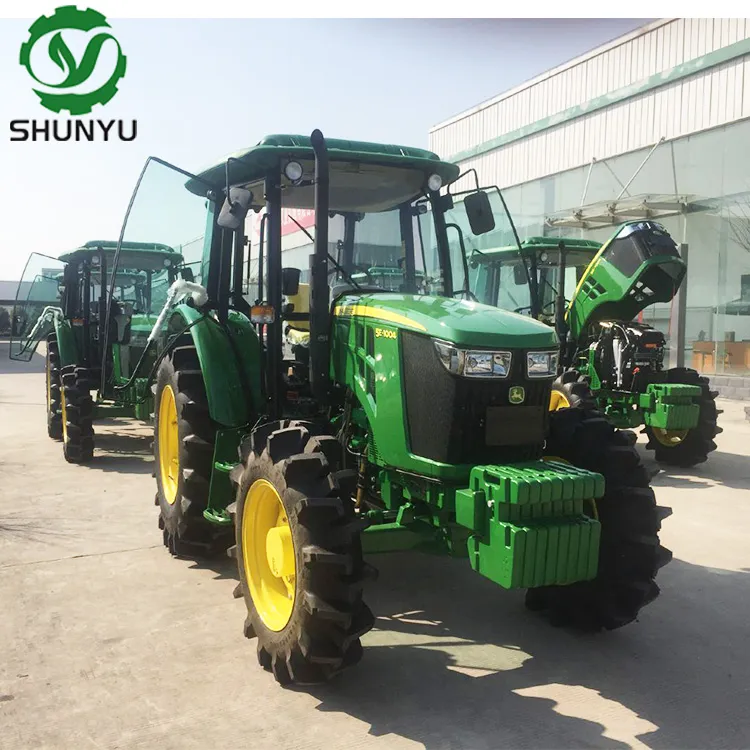

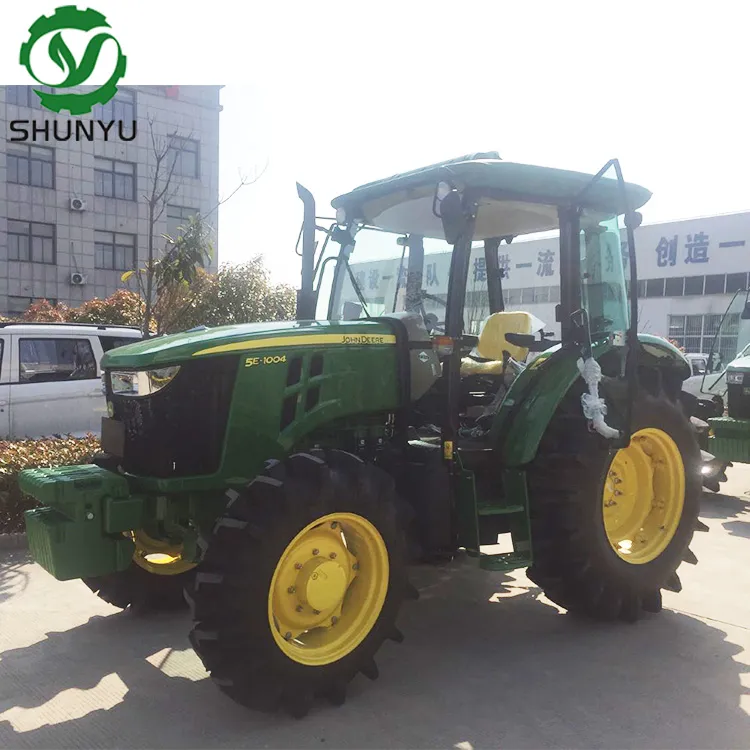

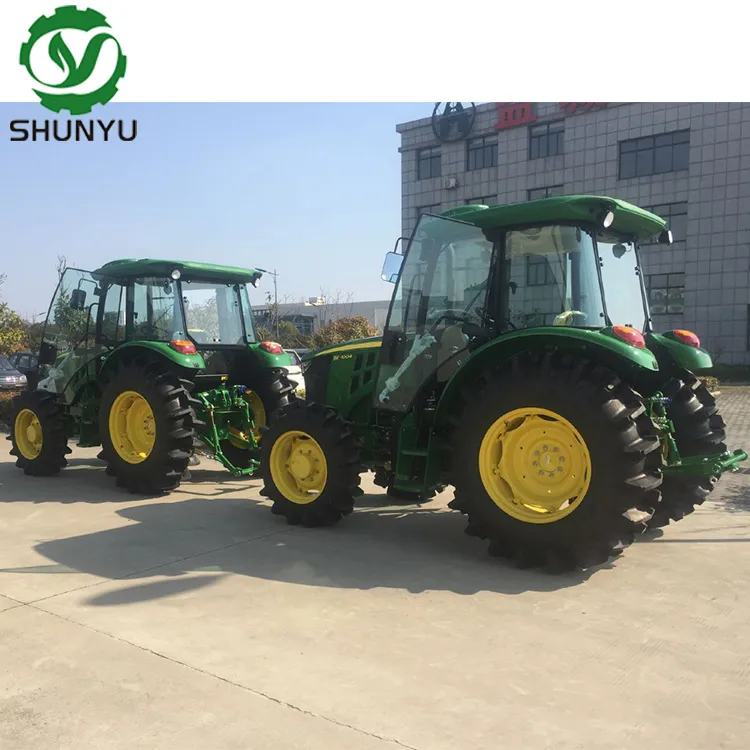

john deere 100hp 1004 farm tractor
specific technical information :

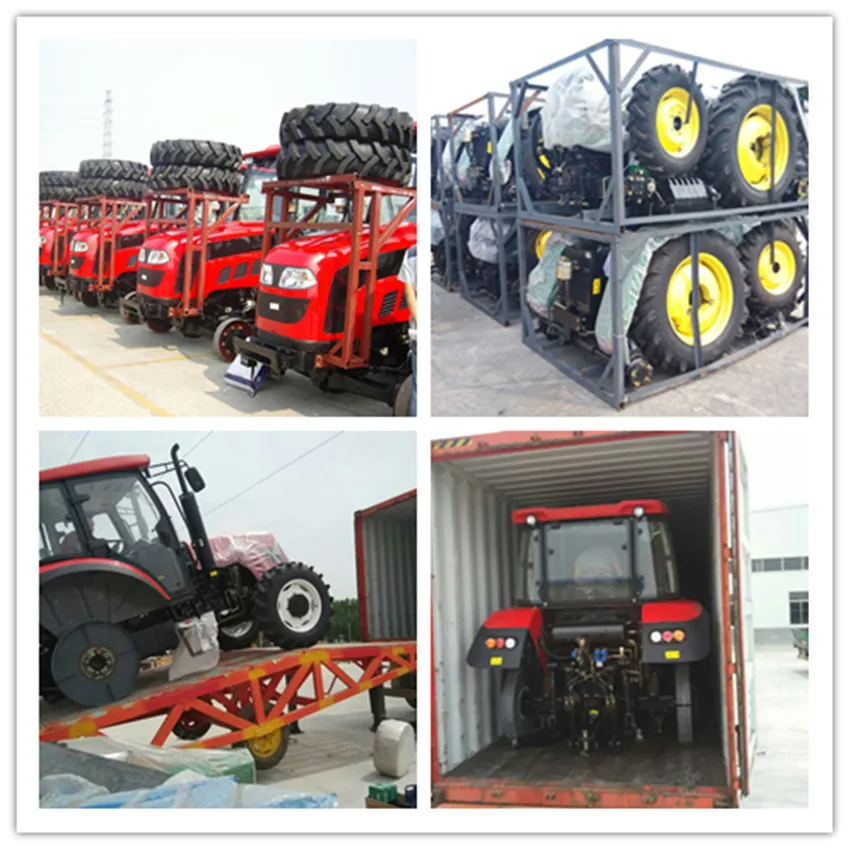

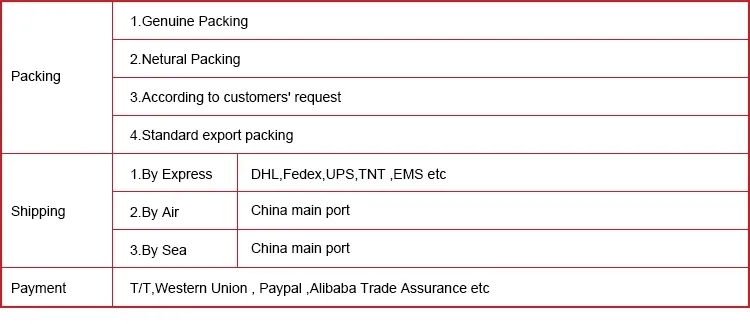

packing and delivery:
releated product :
company profile :
specific technical information :
| Mode No. | 5E-1004 |
| Engine model No. | John deere 4045 |
| Engine power(kw) | 73.6 |
| Rated engine speed | 2300 |
| Fuel system | High pressure common rail |
| Gearbox | Dry clutch,12F+4R |
| PTO (r/min) | Standard 840,optional 650/840 |
| Power output (kw) | 63.5 |
| Traction (kw) | ≥31 |
| No. Of hydraulic output valve sets | 2 type |
| Tillage depth adjustment method | Force adjustment,bit adjustment,floating adjustment |
| Wheel base (mm) | 2230 |
| Minimum turning radius (m) | 4.3 |
| Suspension rod type | II type |
| Fuel capacity (L) | 140 |
| Front wheel tread(mm) | 1556-1845 |
| Rear wheel tread(mm) | 1512-1851 |
| Maximum front counterweight (kg) | 320 |
| Maximum rear counterweight (kg) | 440 |
| Minimum usable mass (kg) | 4414 |
| Dimension (mm) | 4260*1890*2713 |
releated product :
company profile :
