100HP Bia 1004 Tractor with Agriculture Machine
100HP BIA 1004 Tractor with Agriculture machinewelcome to contact with us to get more products information, special customized for you.Product DescriptionClutch-friction plateImported material powder, metallurgical processing technology. The friction plate is more wear-resistant and has a longer l......
Send Inquiry
Product Description

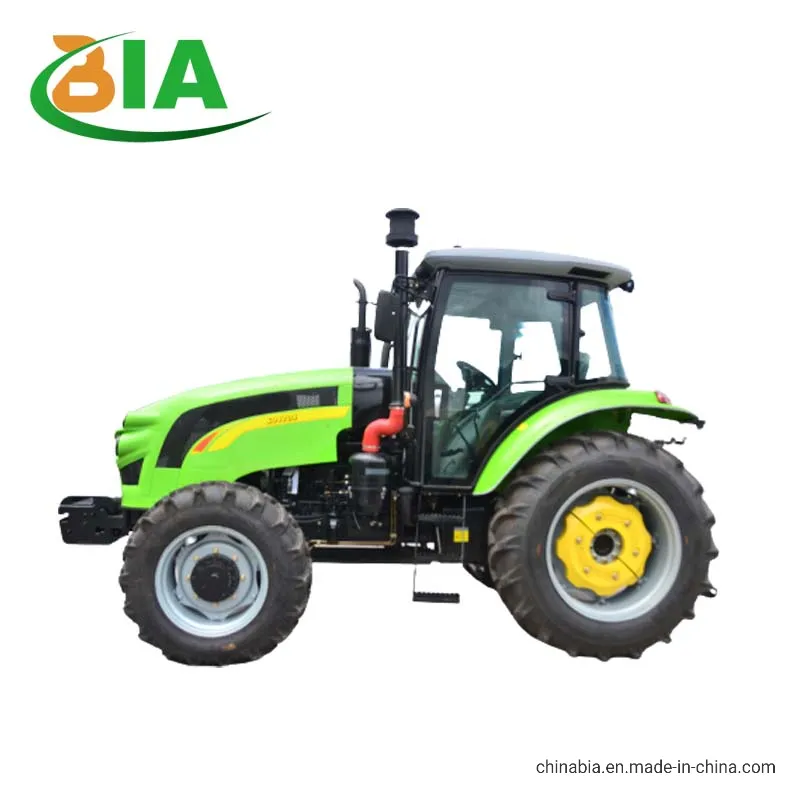

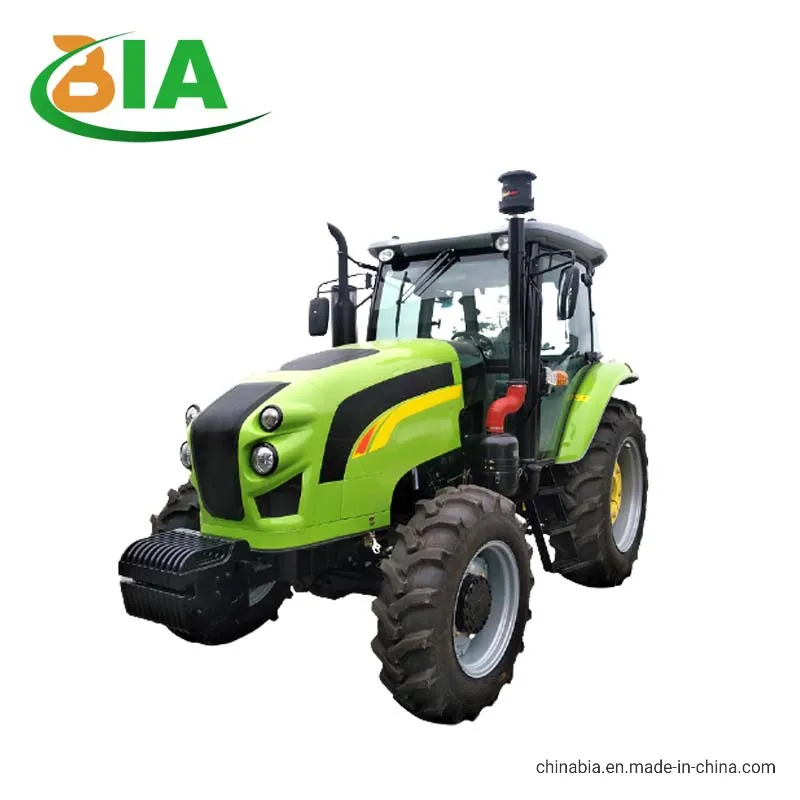

100HP BIA 1004 Tractor with Agriculture machine
welcome to contact with us to get more products information, special customized for you.
Clutch-friction plate
Imported material powder, metallurgical processing technology. The friction plate is more wear-resistant and has a longer life!
Gearbox
The "Fiat" partition wall has good rigidity, high strength and low noise. The material is upgraded to HT250 (gray cast iron)
Adopt independent full hydraulic steering system with high reliability
The new integral fully sealed front axle, the front axle adopts double-cylinder steering front axle, the steering is easier, more flexible and the left and right steering are consistent!
| Items | Unit | Tractor Parameter |
| Model | BIA 804/904/1004 | |
| Name | Wheel tractor | |
| Drive type | 4WD | |
| Usage | Farm, Transport | |
| Overall dimension: | mm | 4050×1820×2610 |
| Cabin | ||
| Type | Latest safe cabin , Optional: Fan or Heater or A/C | |
| Engine: | ||
| Type | 4 cylinder, in-line, water cooled, four-stroke | |
| Aspiration | Natural | |
| Cylinder | 4 | |
| Bore x stroke | mm | ø108×125 |
| Displacement | L | 4.578/ |
| Compression ratio | 17.5:1 | |
| Rated power | Kw(hp) | 58.8/66.1/71.9(80/90/100) |
| Rated Rev. | r/min | 2300 |
| Steering, Brake system | ||
| Steering type | Hydraulic | |
| Brake type | Oil bath type | |
| Transmission system | ||
| Clutch | Double-stage | |
| Transmission box | 4x3x(1+1) combined type | |
| Shift gear mode | Engagement sleeve | |
| Running system | ||
| Frame type | New enhanced frameless | |
| Tire (Front/Rear) | 8.3-24-/14.9-30, Optional: 12.4-24/ 18.4-30 | |
| Tire pressure | kPa | 150/180 |
| Working device | ||
| Suspension system mode | Split type | |
| Suspension device type | Post-position three point suspension | |
| Category of suspension system | II category | |
| Adjusting way | Force and position | |
| Gear pump | CB-F316 | |
| Hydraulic output device | Double-way valve | |
| Safety valve open pressure | Mpa | 17.5-18 |
| PTO shaft type | Post-position, Semi-Independent | |
| PTO shaft spline | 6/8 | |
| PTO shaft spline diameter | ø35/ ø38 | |
| PTO shaft rev. | 540/760, Optional: 540/1000 | |
Bulk order we will using Iron box to packing, before packing will disasemble the tyres,ROPS,silencer and so on, Let the container can loading more. If only one or three tractor will be loading in whole body, becuase if disassemble it the client will be hardly to assembly it, influence the working efficiency.
 |  |  |  |

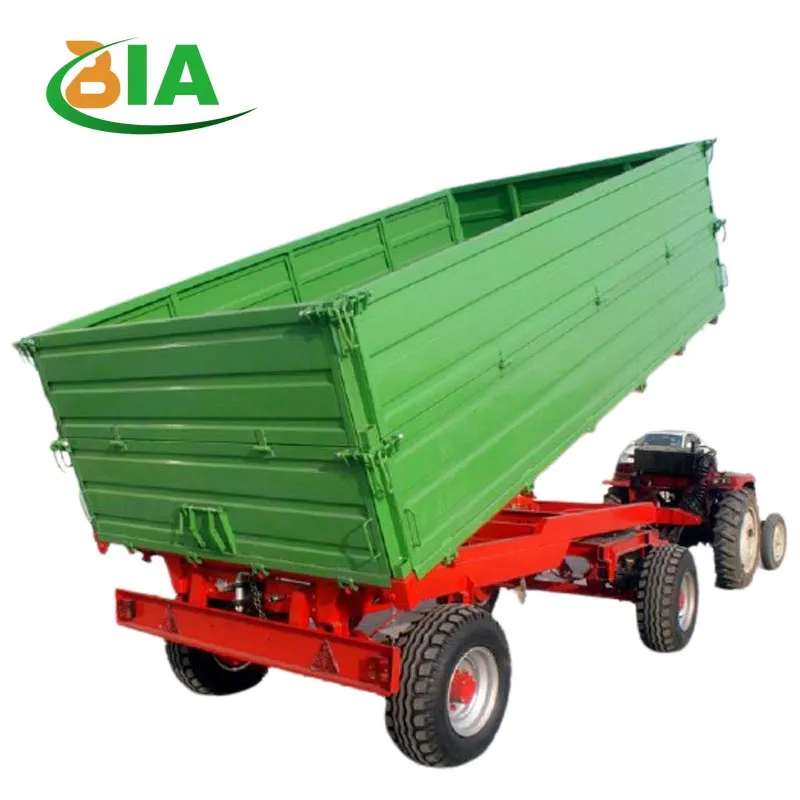

| tractor Trailer |
1. Q: What 's the price of this products?
A: Dear client, please let me know which model or which tractor you want equipped, we will according to your need to choose the most suitable model send you the price list, hoping our service can let you sertisfied.
2. Q: Business terms
A: Shipment time: 20-30days after your deposit payment.
Shipment: By sea
Loading port: qingdao/Tianjin port, China
Destination port: ...To be advised
Payment: T/T, L/C, Wechat/Alipay
Warranty: 1 year, exceptable for spare parts.
Support: Customised. And thorugh video, picture, and people test the machine before shipping.
3. Q: Sample test
A: If you need one sample for test, we could supply for you. Recommend purchase several model implements to share the shipping cost.
4. Q: Why choose BIA for cooperation?
A: BIA is the goal for BE THE TRUSTED SUPPLIER OF CLIENT. Long time cooperation and future order is our common goal.
Do the best Quality, Do the best Service!
