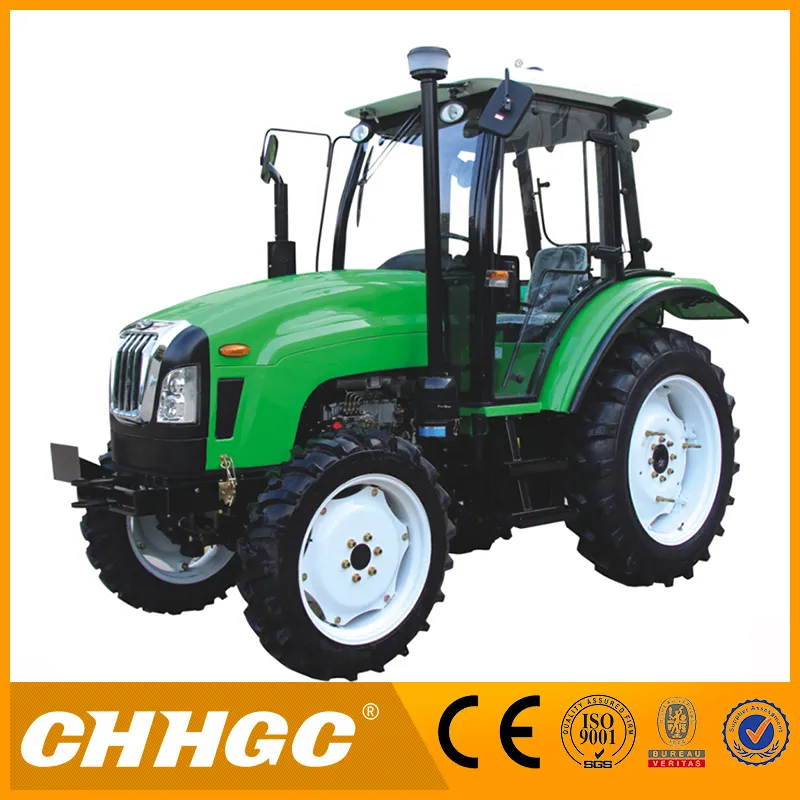

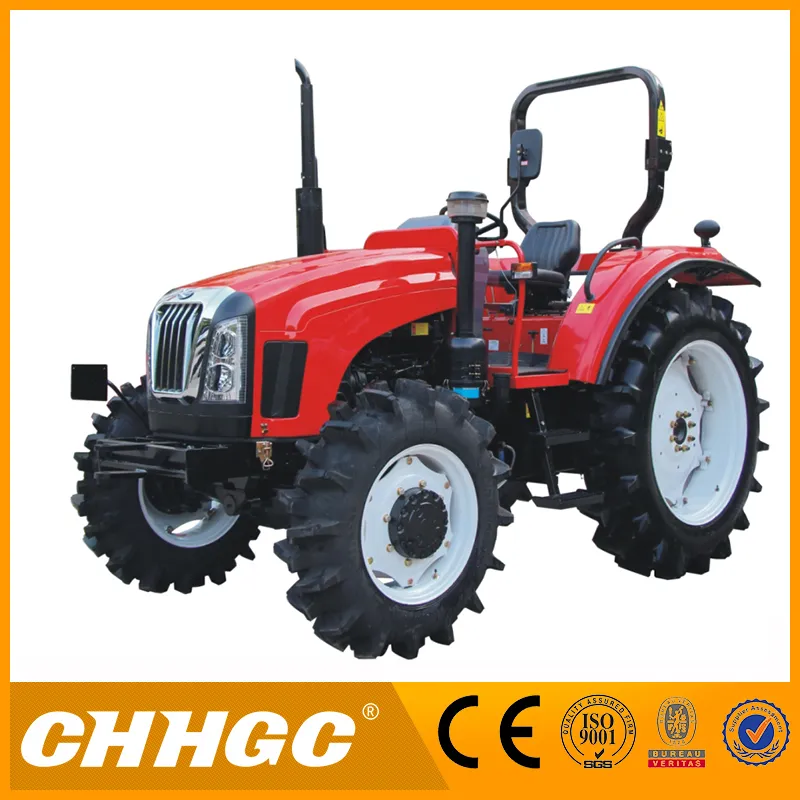

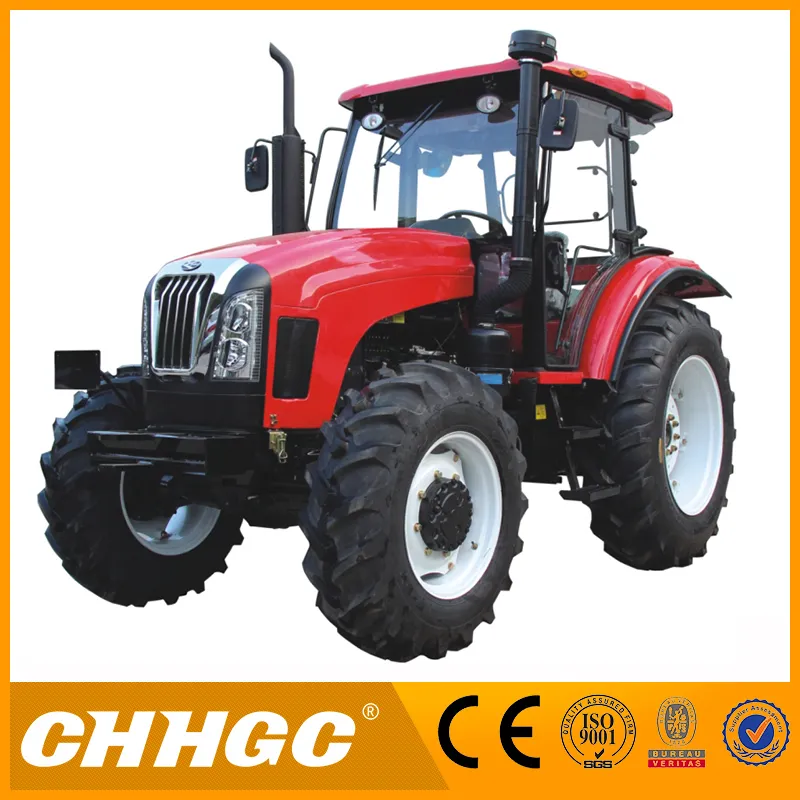

China with Agricultural Equipments 110HP 4WD Farm Wheel Tractor

Product Description

Low price 110HP 4WD farm wheel tractor with agricultural equipments

Product Description

Tractor Model			HH-1104
Tractor Type			4X4
Dimension(MM) LXWXH			4280X2085X2925
Wheelbase(MM)			2195
Clearance(MM)			370
Tread(MM)	Front Wheel		1610
	Rear Wheel		1620-2020(Rated 1620)
Structural Mass(KG)	With Cab		3785
	Without Cab		3570
Power Engine Type Rated Speed(R/Min)			Vertical, Water Cool, Four-stroke, Direct Injection/ 2300
Rated Power (KW)			81
Clutch			Dry-type/Single-Plate/Double-Acting/Spring pressed
Gear Box			F16+R8 (Shuttle Gear)
Rear Axle	Main Drive		Spiral Curved Tooth Bevel Gear
	Differential		Closed 4-Planetary Gears
	Differential Lock		Mechanical Sliding Sleeve
	Final Drive		Inner Built, Planetary Gear Decelerating
Front Drive Axle	Shaft		Central Built
	Front Main Drive		Spiral Bevel Gear
	Front Differential		Closed 2 Planetary Bevel Gear
	Front Final Drive		Single Step Planetary Gear
Steering System Type			Hydraulic Front Wheel Steering
Brake			Wet Double Plate Disc Brake,Independent Handle
Tyre Type		Front Tyre	11.2-24 (11.2-24 Paddy Field)
		Rear Tyre	16.9-34 (13.6-38 Paddy Field)
PTO Type/ Speed(r/min)			Rear Independent Type/ 760/1000
PTO Power (KW)			68.8
PTO Spline Size			φ35 6 Teeth Rectangle Spline Shaft
Suspension Mechanism Type			Rear Three-Point Suspension
Hydraulic Lifting System			Separated Type
Lift-off Weight (KN)(At 610MM)			≥23.8
Towing Equipment			Fixed Drawbar(Optional Swing Drawbar)
Rated Towing Force (KN)			≥23.8

Certificate

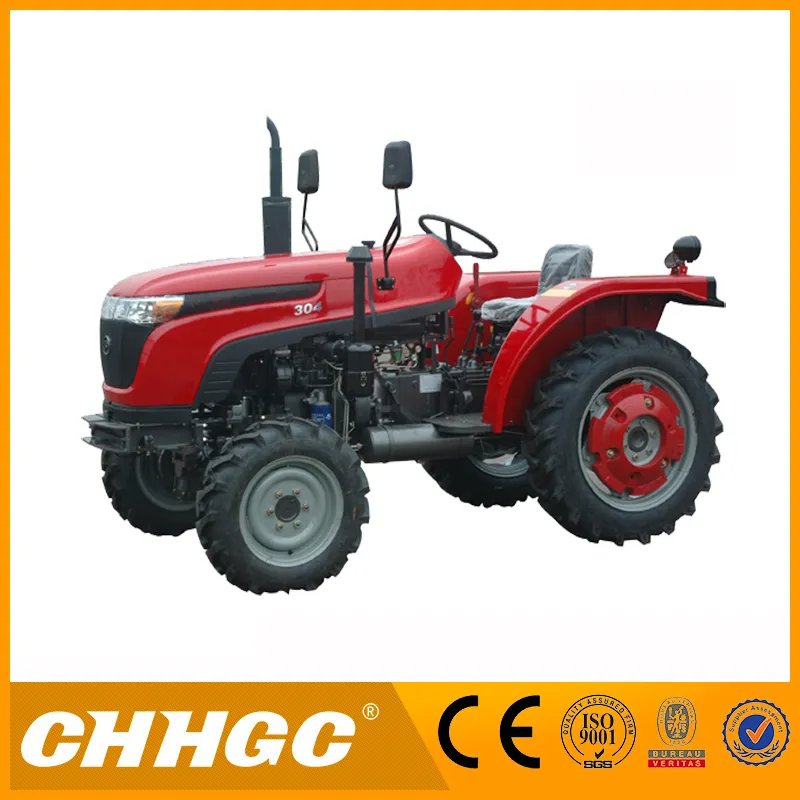

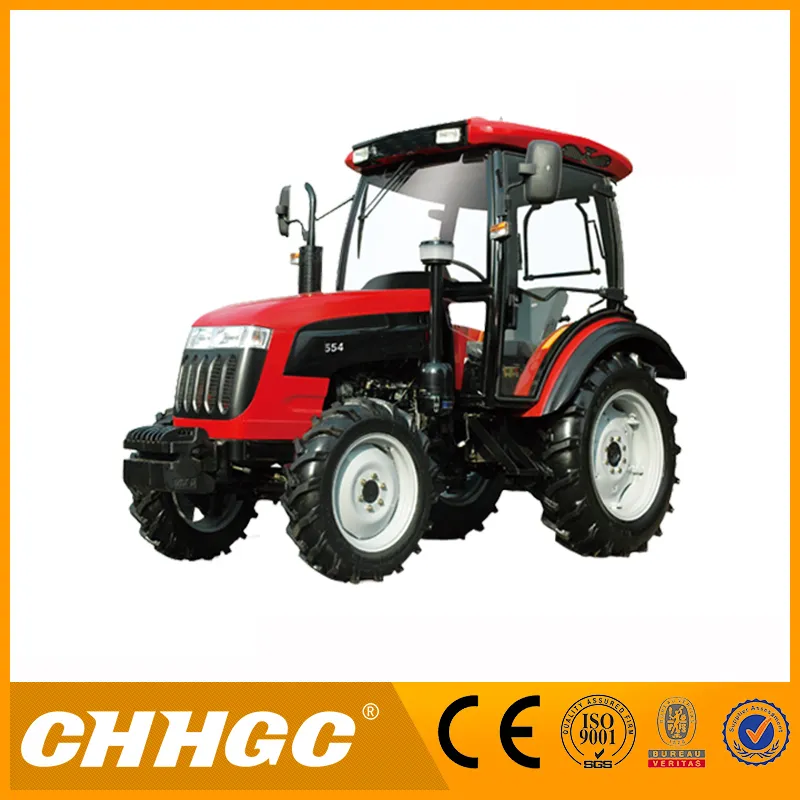

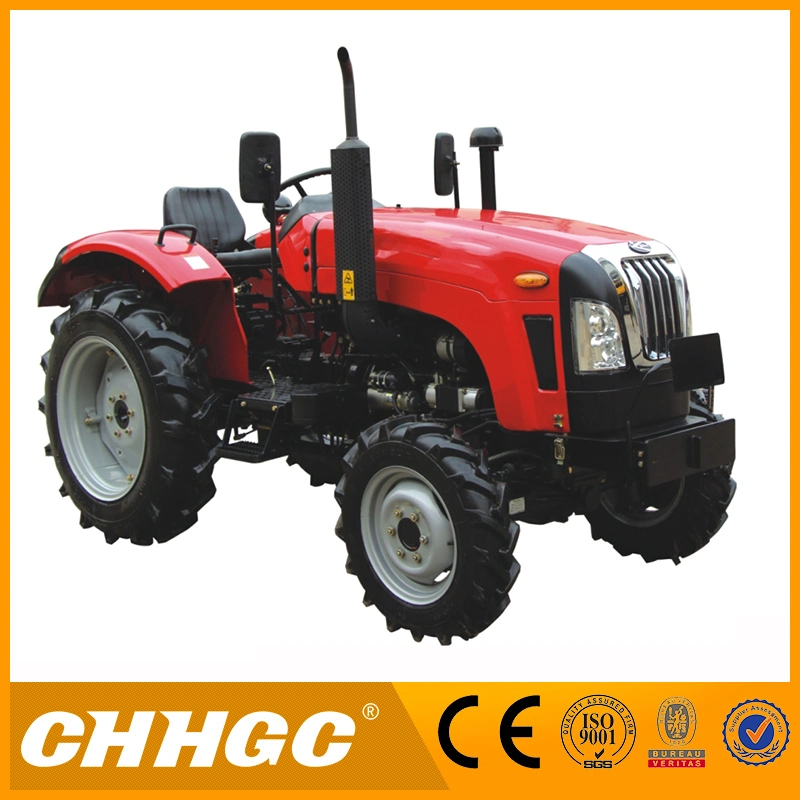

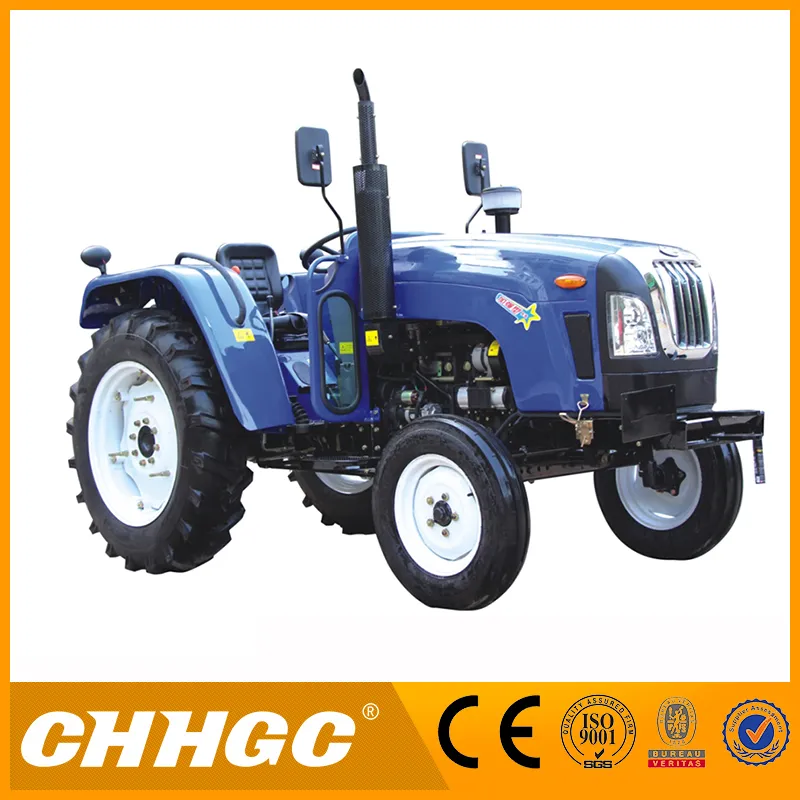

Other Models
with Agricultural Equipments 110HP 4WD Farm Wheel Tractor

Business Partners
with Agricultural Equipments 110HP 4WD Farm Wheel Tractor

FAQ:
Q1. How to ship the vehicles?
A: By container, bulk ship, RORO.

Q2. Do you have RHD(right hand driving) vehicles?
A: Yes, noramlly we supply all LHD vehicles, and we have some RHD model vehicles.

Q3. What is your payment term?
A:  We usually accept T/T or L/C depends on the quantity.
   T/T, deposit in advance, and balance paid before delivery from factory.

Q4. Which model vehicles do you supply?
A: We supply all kinds of vehicles such as SUV, MPV, Pickup,van,truck, bus etc,.

Q5. What is your terms of delivery?
A:   FOB, CIF.

Q6. How about your delivery time?
A:  Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: What can you guarantee to your business partner?
A:  Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
