Wheel Tractors Agri Farm Tractor / Tractores Agricolas Tractores Agricolas
Tractor Products ModelHX1504Wheel Drive4*4 (4*2)Horse Power140Dimension(L*W*H)4530X2050X2930(4530*1980*2630)mmMinimum Service Quality 3690-3840KGFront Wheel Tread1490-1740mm(Can Be Adjustable)Rear Wheel Tread1520-1850mm(Can Be Adjustable)Wheel Base2195(1970) mmMinimum Ground Clearance405(390)mmGear ......
Send Inquiry
Product Description

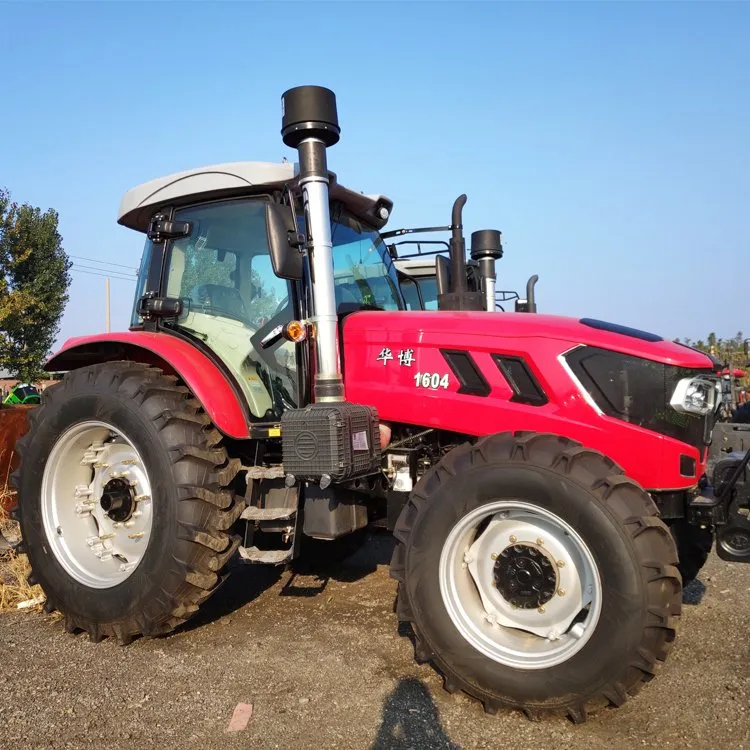

Tractor
Weifang Huaxia Tractor Manufacturing Co.,Ltd.
Lebushan Industry Park,Weifang City,Shandong Porvince,China| Products Model | HX1504 |
| Wheel Drive | 4*4 (4*2) |
| Horse Power | 140 |
| Dimension(L*W*H) | 4530X2050X2930(4530*1980*2630)mm |
| Minimum Service Quality | 3690-3840KG |
| Front Wheel Tread | 1490-1740mm(Can Be Adjustable) |
| Rear Wheel Tread | 1520-1850mm(Can Be Adjustable) |
| Wheel Base | 2195(1970) mm |
| Minimum Ground Clearance | 405(390)mm |
| Gear Shifts | 16F+ 8R |
| Tyre Size | 16.9-34/750-20 |
| Engine Specification | |
| Engine Brand | Weichai / YTO / QC |
| Type | Water Cooled, Vertical, 4 Stroke and Direct Injection |
| Exhaust Emission Standards | Europe 2 |
| Rated Power | 88.2kw |
| Rated Revolution | 2400 r/min |
| Start Way | Electric Start |
| Gear Box | 4x(2+1)X2 Shift |
| Clutch | ingle Chip, Dry Friction, Constant Conjunction, Double Clutch, 11 Inch Size |
| PTO Speed | 6 Spline 750/850 |
| Multi-way Valve | Two Group |
| Drive Cap | With A/C |
Weifang Huaxia Tractor Manufacturing Co.,Ltd.
Web:wfhuabo.en.made-in-china.com
Weifang Huaxia Tractor Manufacturing Co.,Ltd. Is established in 1996 which has been invested
51million and is located in Lebushan Industry park,Weicheng District, Weifang City,Close to Jiaoji Railway,
Qingyin Expressway,And convenient transportation.Covering an area of about 140,000 square meters,
it is a modern private enterprise integrating scientific research, production and marketing. The existing
staff of more than 2000 people, including 10 technical staff, salers and foreign trade staff more than 20 people,
products are sold to all over the world. The company has strong technical force, excellent production equipment,
advanced automatic assembly line, and various inspection equipments. The company is always adhered to the
"quality first, customer first" approach to development.

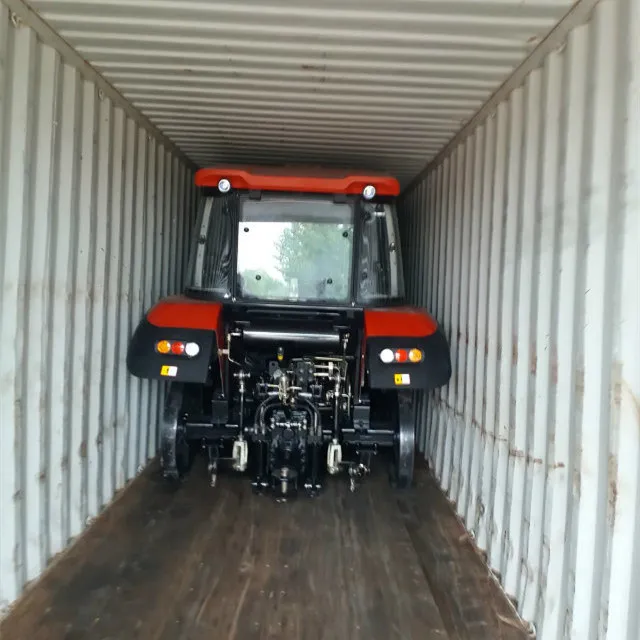

Loading container picture :
