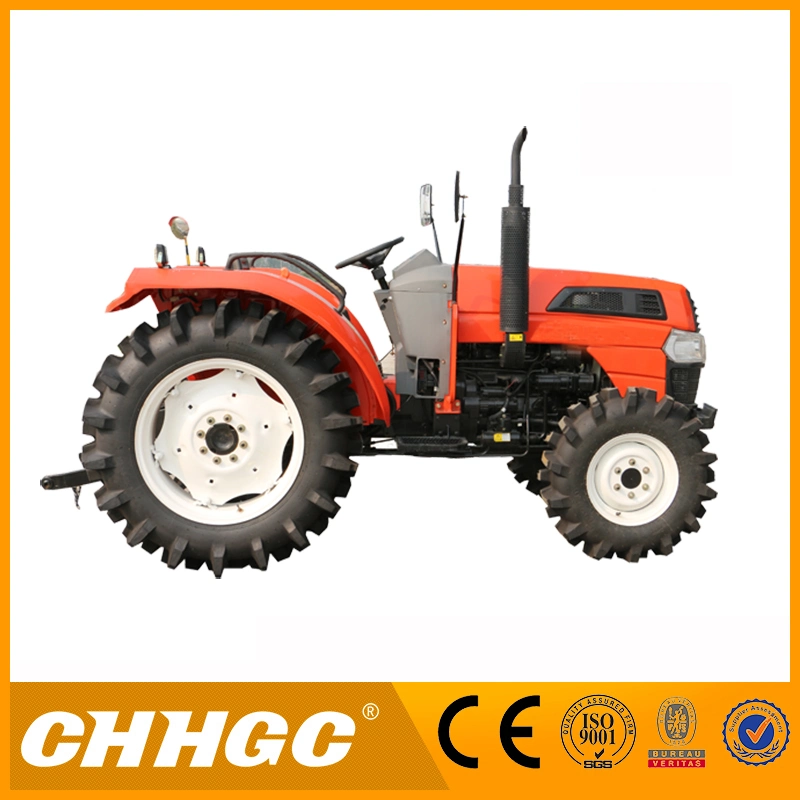

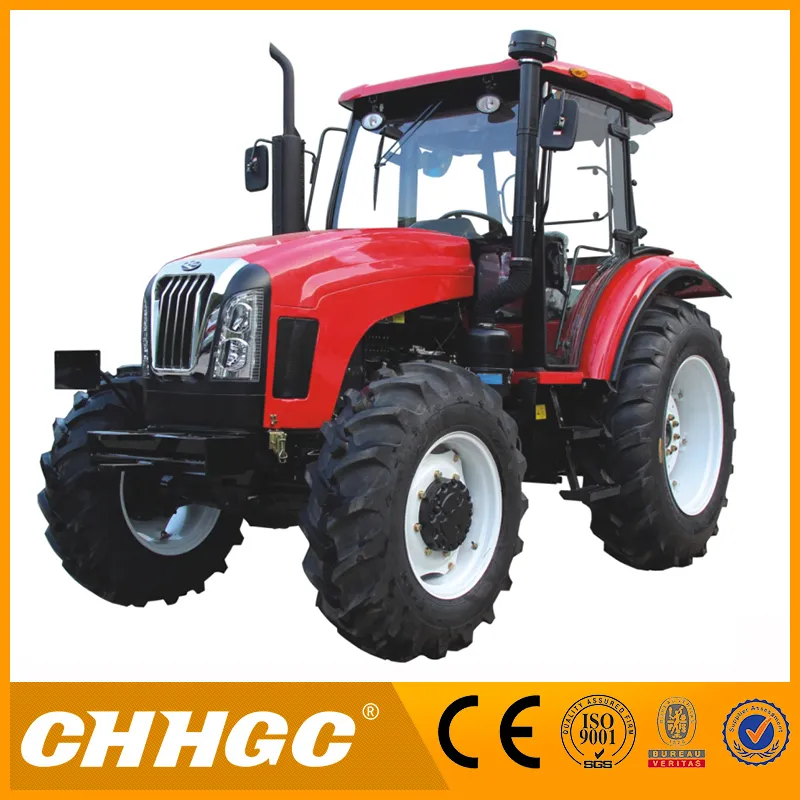

Large Power Farm Wheel Tractor 1004 100HP 4WD with Kinds of Attachments

Product Description

Large power farm wheel tractor 1004 100HP 4WD with kinds of attachments

Product Description
1. Large power with agricultural implements
2. Drive type: 4*4
3. Multi-functional
4. YTO engine

***Basic Configuration:

--4 cylinder diesel engine
--Gearbox:; F18+R6 (with creeper)
--4 Wheel-drive
--Hydraulic power steering
--Hydraulic Output Valve
--Differential lock
--Dual clutch, independent operation
--Partial separated hydraulic hitch
--Draft positional adjustable
--Category II Rear-mounted three-point linkage

****Optional devices
--Front ballast
--Rear ballast
--Air brake
--No cabin and No hydraulic
--LR105T55 engine
--Paddy tire
--Swing drawbar

*****How to Choose a Tractor?
Getting a right tractor is important: It's an one worth investment and a easily last 10, or 20 years or more. Now our Tractor Team will help you to choose a right tractor.

---Which horsepower tractor do you need?
Horsepower is the most basic difference between tractor models: It dictates what work the tractor can perform, what types of attachments it can run, and, to a large degree, how much you'll pay.

We can provide Tractor from 18HP-180HP for your option:

1. Tractors with less than 35 HP:
Make up the small end of the market. They're capable of handling most basic lawn work and small fields, but often can't provide enough power for more demanding jobs like tilling or heavy brush mowing.

2. Between 35 and 65 horsepower
Is a comfortable middle ground that features tractors with capabilities suited for ranchette communities, horse farms, nurseries, and many commercial uses.

3. Above 70 HP,
You get into tractors designed for strenuous agricultural use, such as tilling fields and baling hay. The largest tractors for commercial farming feature 120 HP engines or larger.

Tips: Buy a tractor that's too small and you may not be able to complete the jobs you have in mind.
Buy one that's too large, and you'll be wasting money, as well as increasing the turning radius, clearance requirements, and damage to the ground.

Model			TS1000		TS1004
General Specifications	Type		4x2		4 X 4
	Overall dimensions LxWxH(mm)		445820422879		448120422829
	Constructional weight(kg)		4200		4000
	Rated traction force(k N )		30		36
	Wheel base(mm)		2395		2385
	Front wheel tread(mm)		1450~1950(Adjustable)		1650~2015(Adjustable)
	Rear wheel tread(mm)		1504-2074(Adjustable)		1504-2074(Adjustable)
	Min.land clearance(mm)		484		435
	Min.quality in use(kg)		4420		4600
	Front wheel tyre size		7.5-20		12.4-28
	Rear wheel tyre size		16.9-38		16.9-38
	Min.turning radius(mm)(Unilateral Nonbraking /Unilateral Braking )		4000/3300		4 300/3650
	Theoretical speed(km/h)		I	II	III	Reverse
	High gear	C	28	33.6	40.7	33.5
		B	16.8	20.3	24.4	20.2
		A	10.3	12.5	15	12.5
	Low gear	C	6.6	8.1	9.7	8
		B	3.9	4.8	5.9	4.8
		A	2.5	3	3.6	3
	Creeper	C	1.4	1.7	2	1.6
		B	0.8	1.1	1.3	1.1
		A	0.5	0.6	0.7	0.6
Engine	Model		TD226B-4T
	Type		Vertical,Water-cooling,Four-stroke,Direct injection
	12 hours power(kw)		73.5
	Rated Speed(r/min)		2400
	Fuel consumption(g/kw.h)		≤242
	Max.torque(N.m)		≥364
	Speed of Max.torque(r/min)		1500~1700
	BorexStroke(mm)		Φ105X125
	Diesel Consumption(g/kW.h)		≤1.63
	Starting mode		Electric start
Break System	Service Brake		Mechanical,Hydraulic,Wet,Disc
	Parking Brake		Mechanical cantrol,multiple,Wet,Disc
Transmission	Clutch		Dry,Single Piece,Independnt operation,Double Acting
	Gear box		Combine style(3+1)X3X2:18 forward gear,6 reverse gear; Equiped with creeper (3+1)X3X3: 27 forward gear,9 reverse gear; Main gear box:Constant engaged by oblique gear
	Steering		Hydraulic steering
	Steering type		Front wheel steering
	Main Drive		Spiral bevel gear
	Differential Mechanism		Four planet bevel gear,Closed
	Final Drive		Internal,Planetary gear
Operating System	Lifter tilling depth control		Draft & position adjustable
	Max.lifting capacity(kn)		≥25
	Suspension type		Postposition,Three-point,II category
	Speed of P.T.O.(r/min)		(540,1000),or (720,1000),or (540,720)
	Type of P.T.O.		Independent and synchronous P.T.O
	Traction Equipment		Swing rod
Optional Disposition			Front ballast,Rear ballast,Air brake, No cabin and No hydraulic, LR105T55 engine

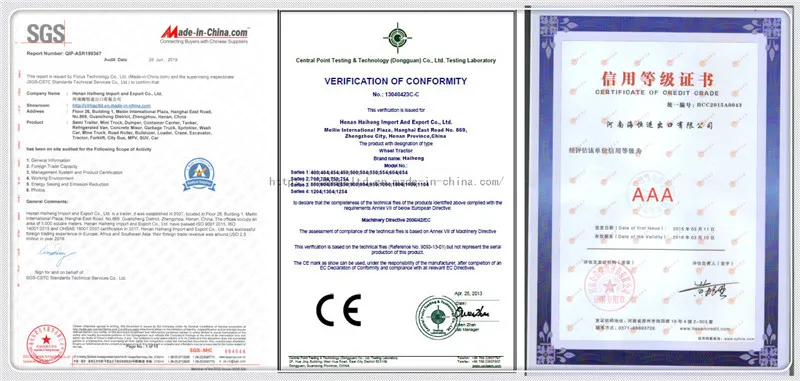

Certificate
Large Power Farm Wheel Tractor 1004 100HP 4WD with Kinds of Attachments

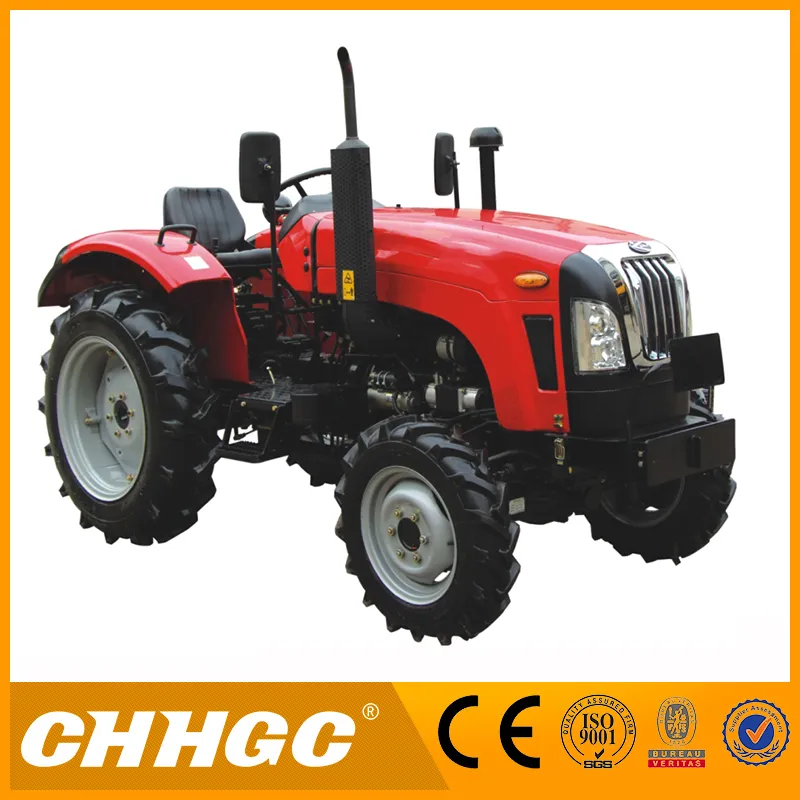

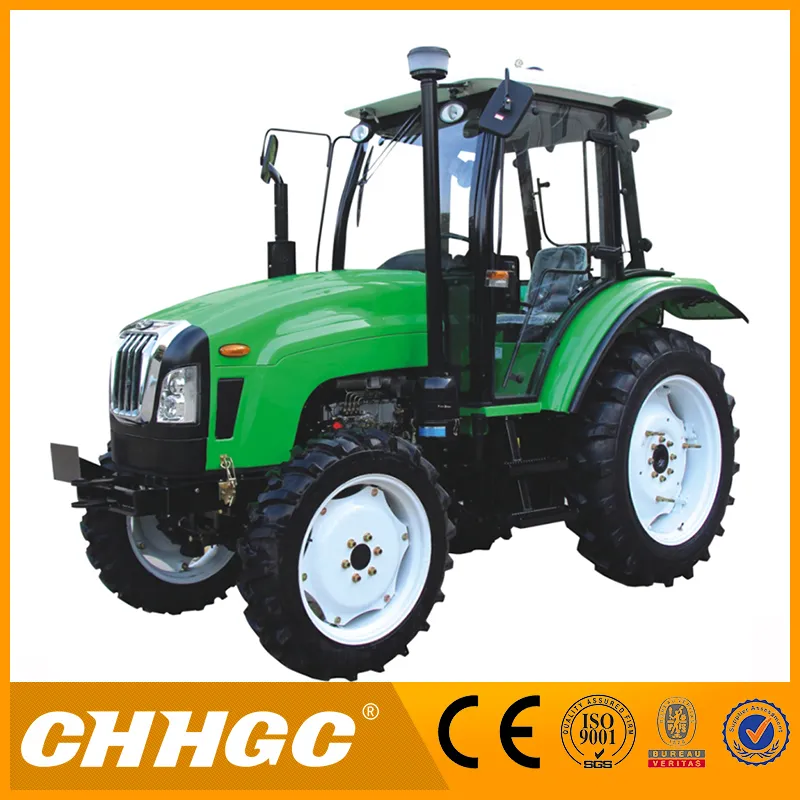

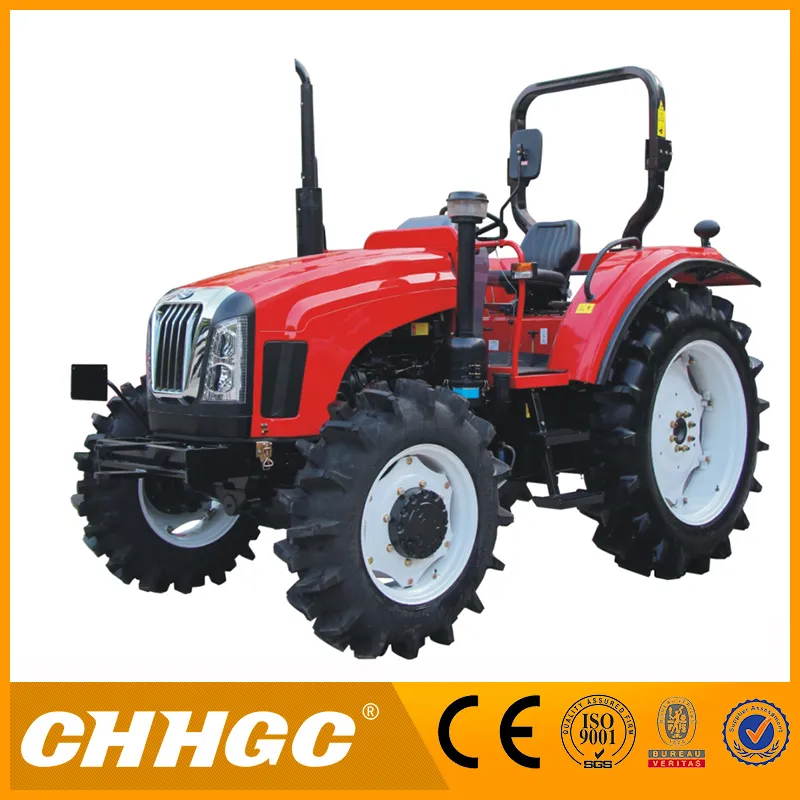

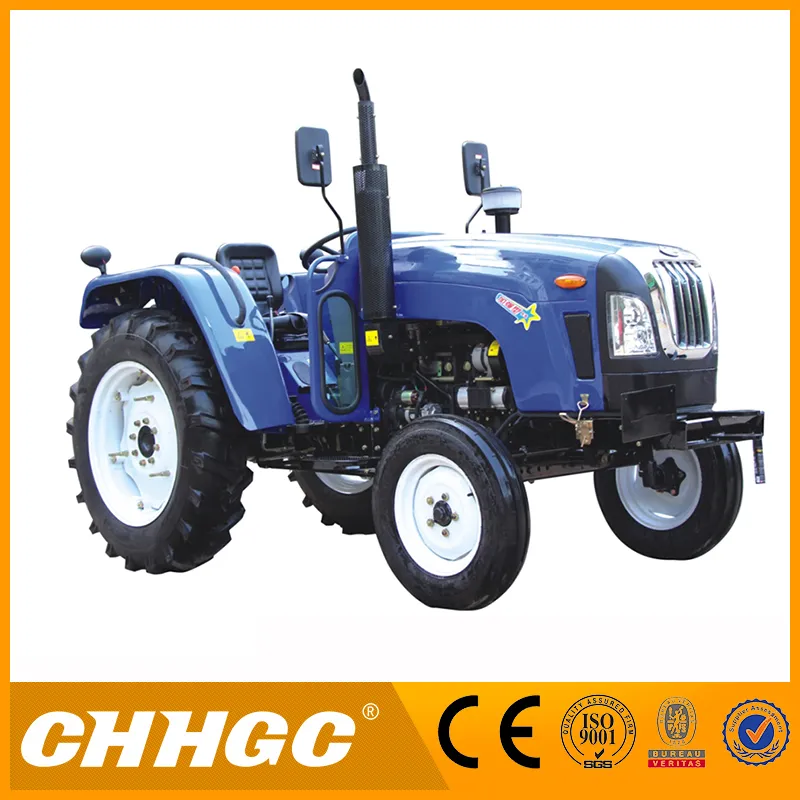

Other Models Large Power Farm Wheel Tractor 1004 100HP 4WD with Kinds of Attachments
