Chinese Tractor Manufacturers 1004 100 HP 4WD Farm Machinery Tractor Price List
Chinese Tractor Manufacturers 1004 100 HP 4wd farm machinery tractor Price List1.Product DescriptionThis series tractor is a versatile, high horsepower agricultural tractors. The model has compact structure, convenient operation, flexible steering, traction, versatile and easy maintenance characteri......
Send Inquiry
Product Description
Chinese Tractor Manufacturers 1004 100 HP 4wd farm machinery tractor Price List
1.Product Description

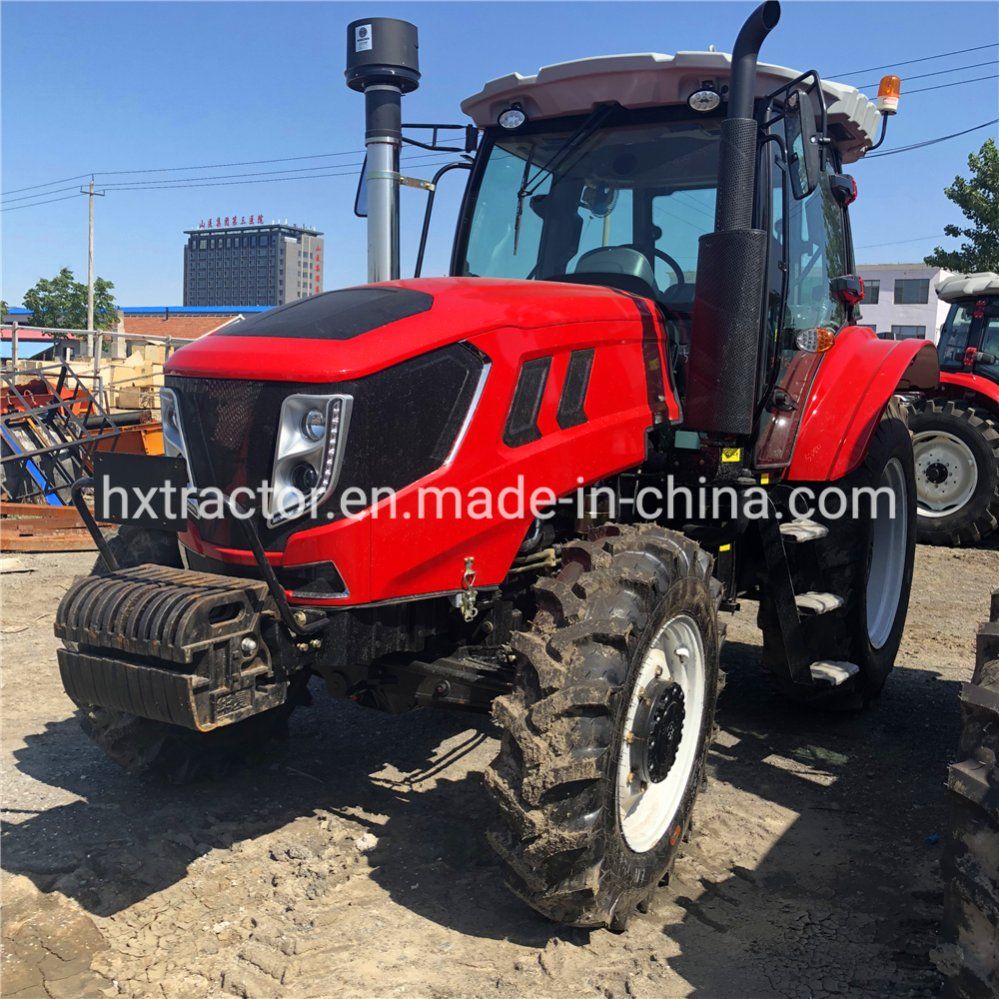

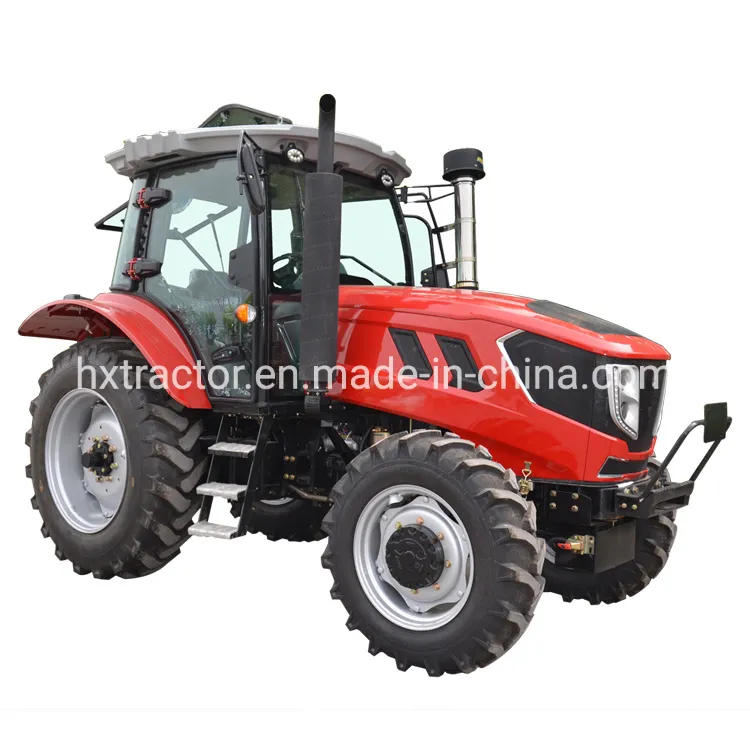

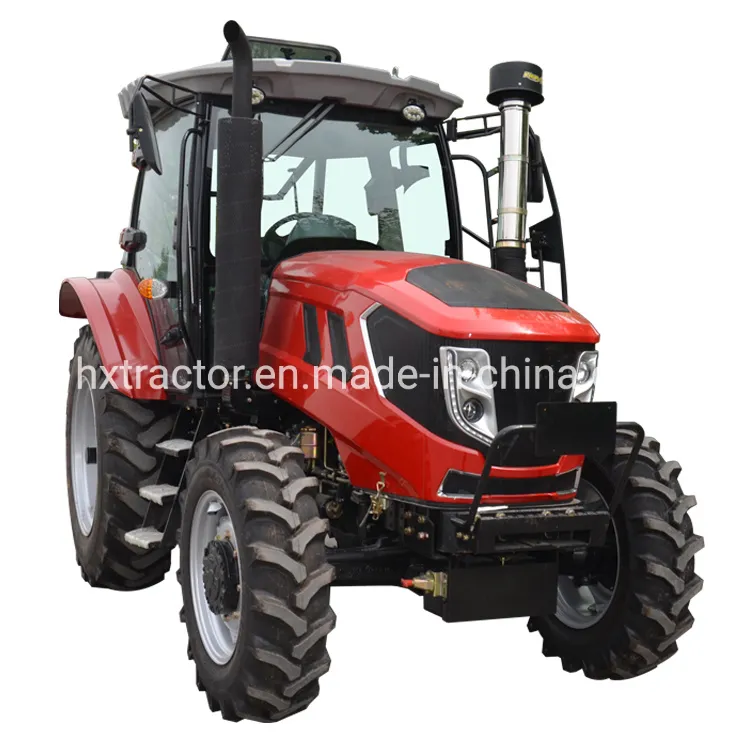

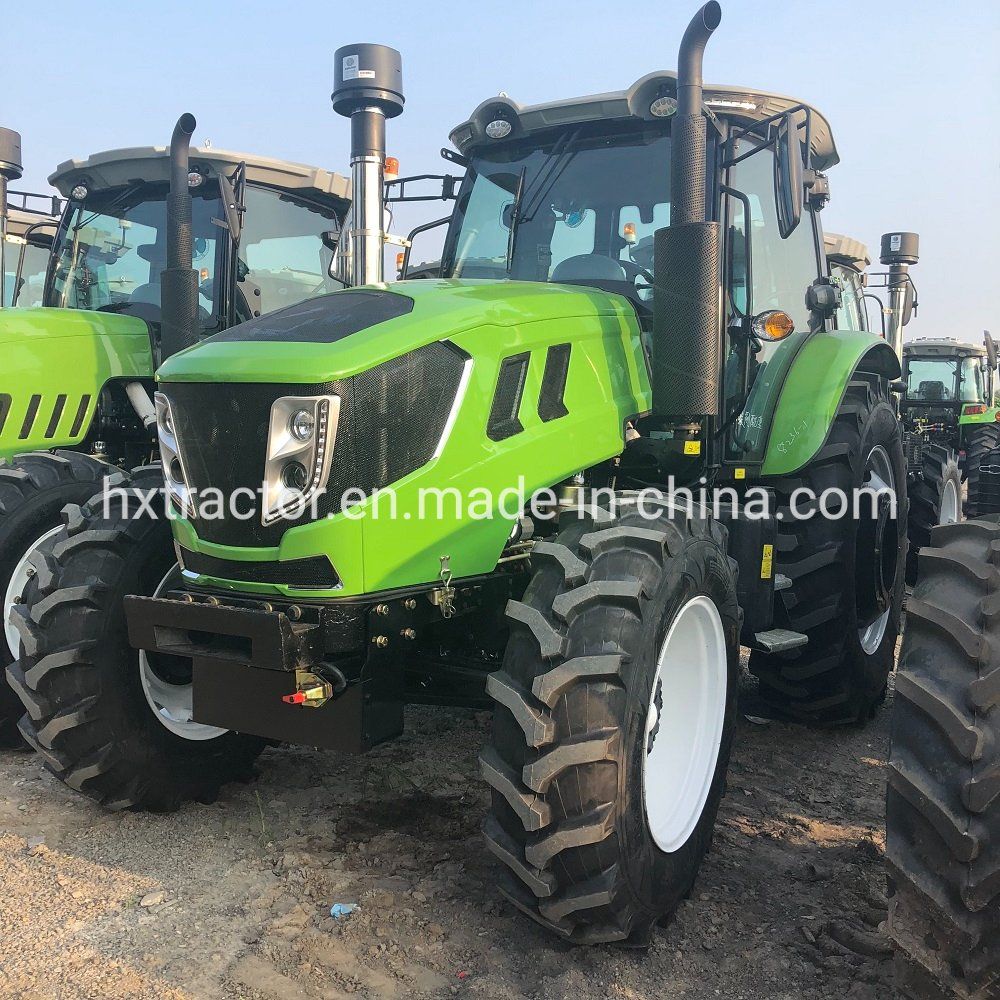

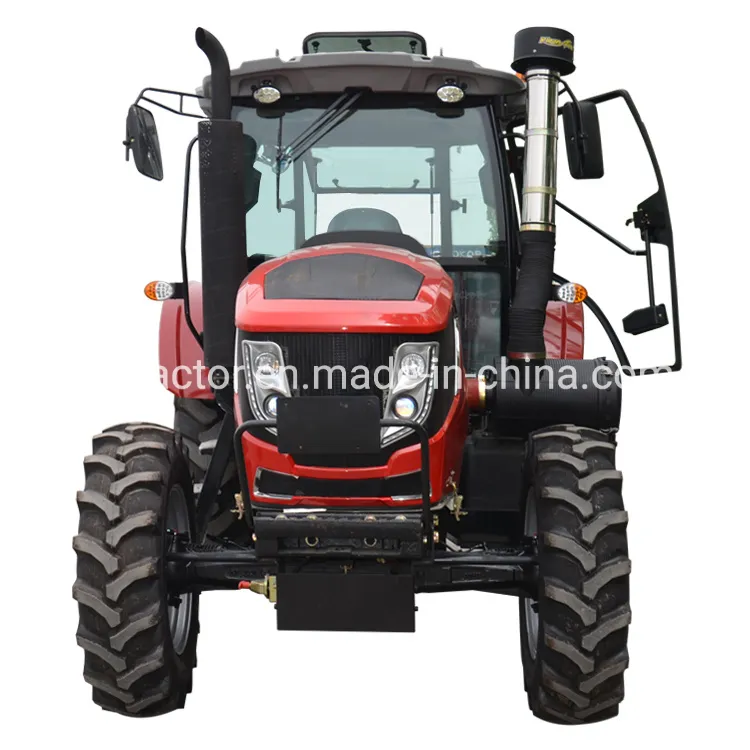

This series tractor is a versatile, high horsepower agricultural tractors. The model has compact structure, convenient operation, flexible steering, traction, versatile and easy maintenance characteristics. The series use TD chassis, four wheel drive, 16F+8R shuttle shifts gear box, hydraulic steering, double stage clutch and the 3-point linkage is adjustable by floating way. The series can choose to equip the roll bar, hydraulic multi-valves, heater and AC cabin
Sales territory: regions like Europe, South America and Australia, Africa and other areas
Matched machines and tools: ploughing tools like disc plough, disc harrow, rotary tiller and cultivator. Optional tools like front loader, backhoe, trailer, mower, rake, spraying machine
| TD Series(90hp-150hp) | |||||||
| Products Model | HX904 | HX1004 | HX1104 | HX1204 | HX1304 | HX1404 | HX1504 |
| wheel Drive | 4x4 | ||||||
| Dimension(L*W*H) | 4530x2050x2930mm | ||||||
| Weight | 3690-3840kg | ||||||
| Front wheel Tread | 1490,1580,1650,1740mm limited adjustable | ||||||
| Rear Wheel | 1520,1620,1740,1850mm limited adjustable | ||||||
| Wheel Base | 2195mm | ||||||
| Min Land Clearance | 405mm | ||||||
| Gear shifts | 16F+8R | ||||||
| Tyre Size | standard tire: 12.4-24/16.9-34, biger tire: 14.9-24/18.4-34 | ||||||
| Steering gear | Hydraulic steering | ||||||
| Rear Suspension | Three-point Suspension | ||||||
| Engine Specification: | |||||||
| Engine Model | YTO or QC | ||||||
| Type | Water cooled ,Vertical,4 stroke and Direct injection | ||||||
| Rated Power(kW) | 66.1 | 73.5 | 80.88 | 88.2 | 95.5 | 102.9 | 110.2 |
| Rated Revolution | 2300/2400r/min | ||||||
| Start Way | Electricity Start | ||||||
| Transmission | 4×(2+1)×2 shifts | ||||||
| Clutch | Single chip,Dry friction, Double clutch. | ||||||
| PTO Speed | 8 spline 540/720 or 540/1000 | ||||||

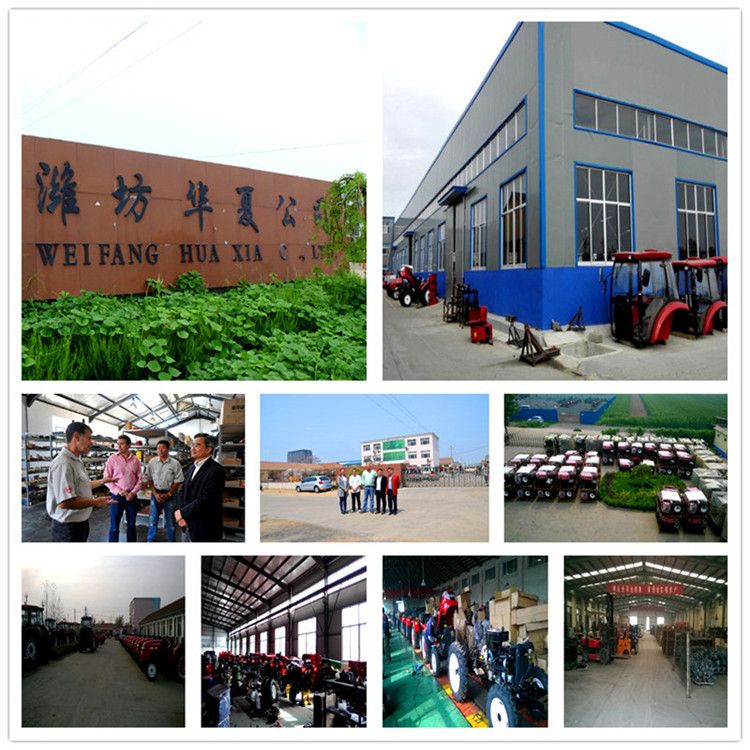

2.Company Overview
| Company Name | Weifang Huaxia Tractor Manufacturering Co.,Ltd |
| Founded in | 1999, Weifang City, Shandong Province (Production Base) |
| Main Products | Mini Tractors / Farm Tractors / Garden tractors/10hp to 180hp |
| Who We Are | We have over 100 Professional Partners located in 36 countries |
| Quality Certificates | CCC, GOST, ISO9001-2008 & CE |
3.Our Serives.
Warranty time and the Spare Parts
(1). Warranty time
We supply you 2 years warranty time.
(2). Spare Parts
The Easy-damage parts, we will send you together with the tractor for free. And in warranty period, if the spare part is not work because of the quality, we will send you new parts for free.
(3).Tool Box
We will send you the tool Box For free.

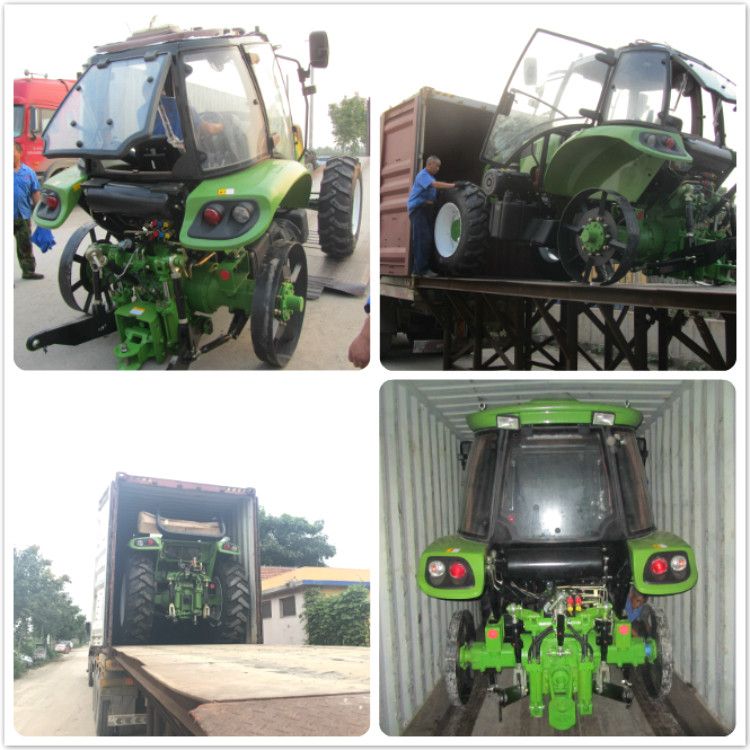

(4).Safe & Professional Package
All the tractors are packed in Iron frame steadily or as your required.
4.Package
5.Contact information.
We are waiting for your inquiry and visiting!
