China Agricultural Machinery Manufacturer Sale 150HP 4X4 Big Compact Garden Mini Farm Tractor with Front End Loader and Backhoe Attachment Price for Agriculture
Product Description:150hp 4wd China agriculture manufacturer price farming tractors for sale This model 150hp 4wd tractor sells very well for its good quality and cheap price.We export this model tractors most to Europe, America, Australia and Brizil and other countries, they are very popular in the......
Send Inquiry
Product Description
150hp 4wd China agriculture manufacturer price farming tractors for sale
This model 150hp 4wd tractor sells very well for its good quality and cheap price.
We export this model tractors most to Europe, America, Australia and Brizil and other countries, they are very popular in the market.
With beautiful appearance, this tractor is also multi-functional. It can match all kinds of farming implements.

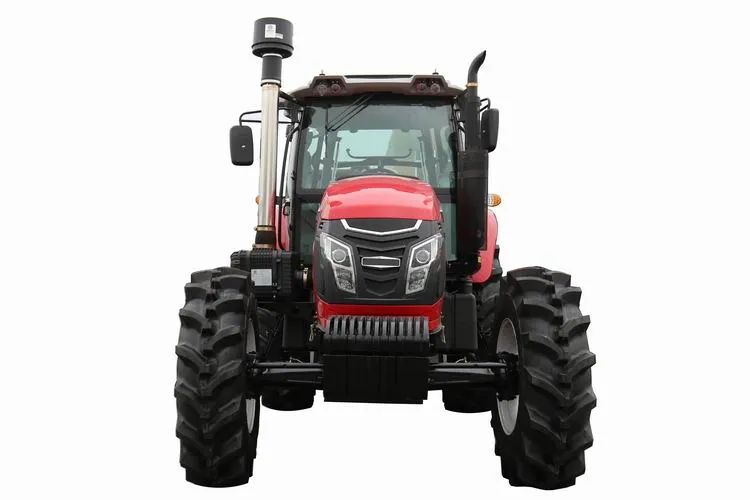

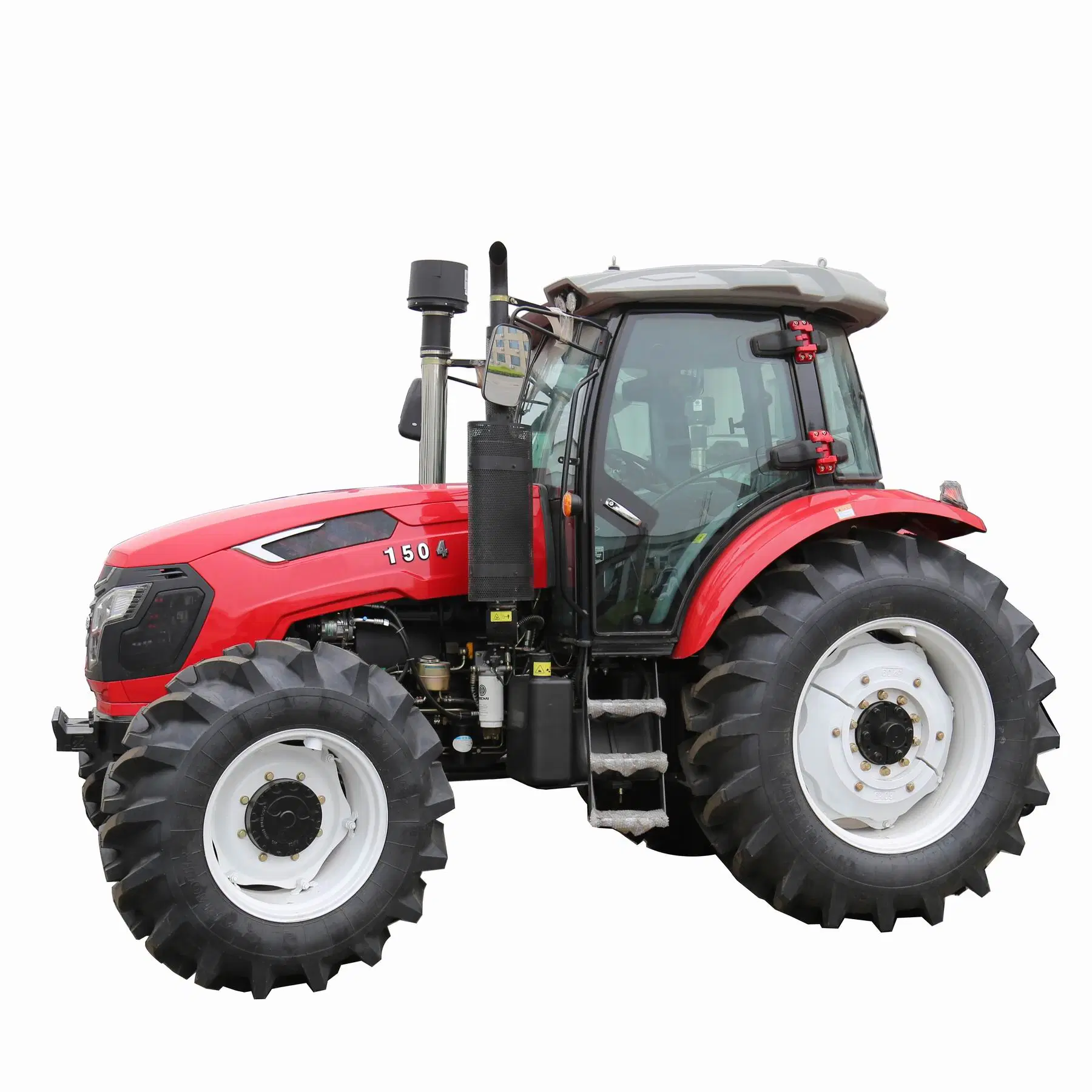

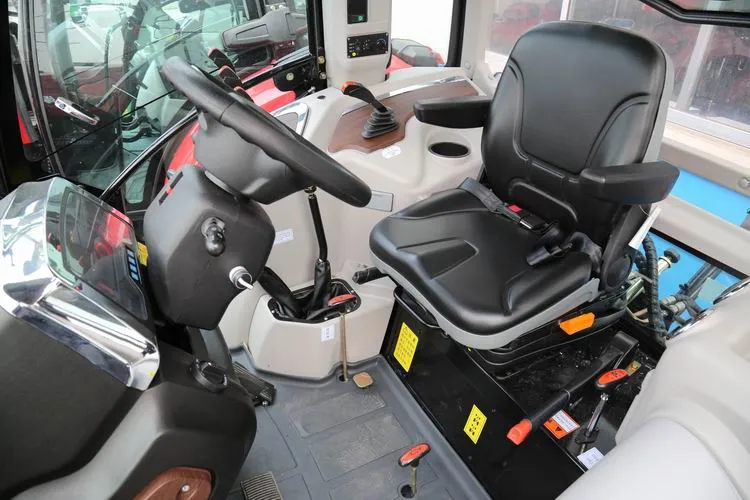

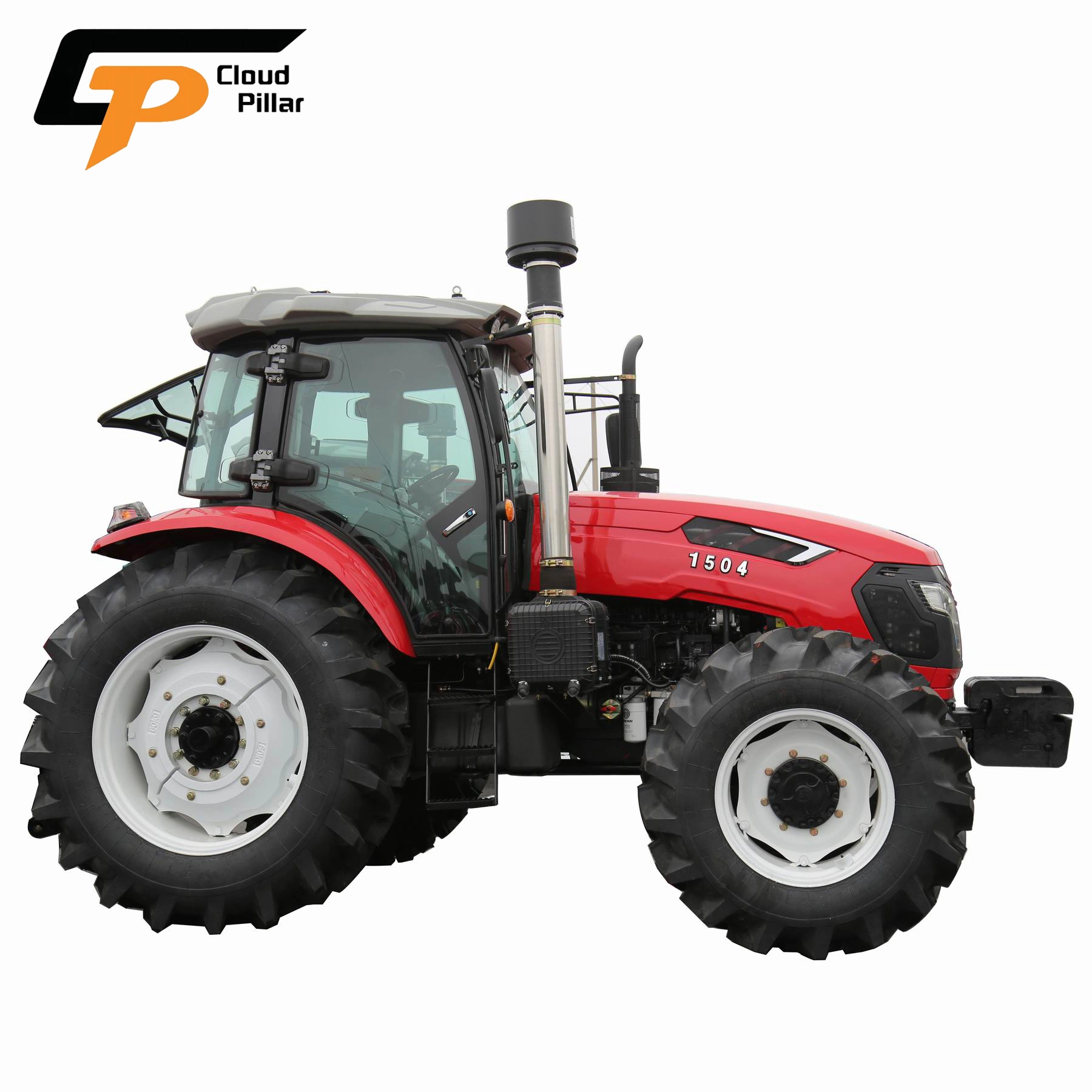

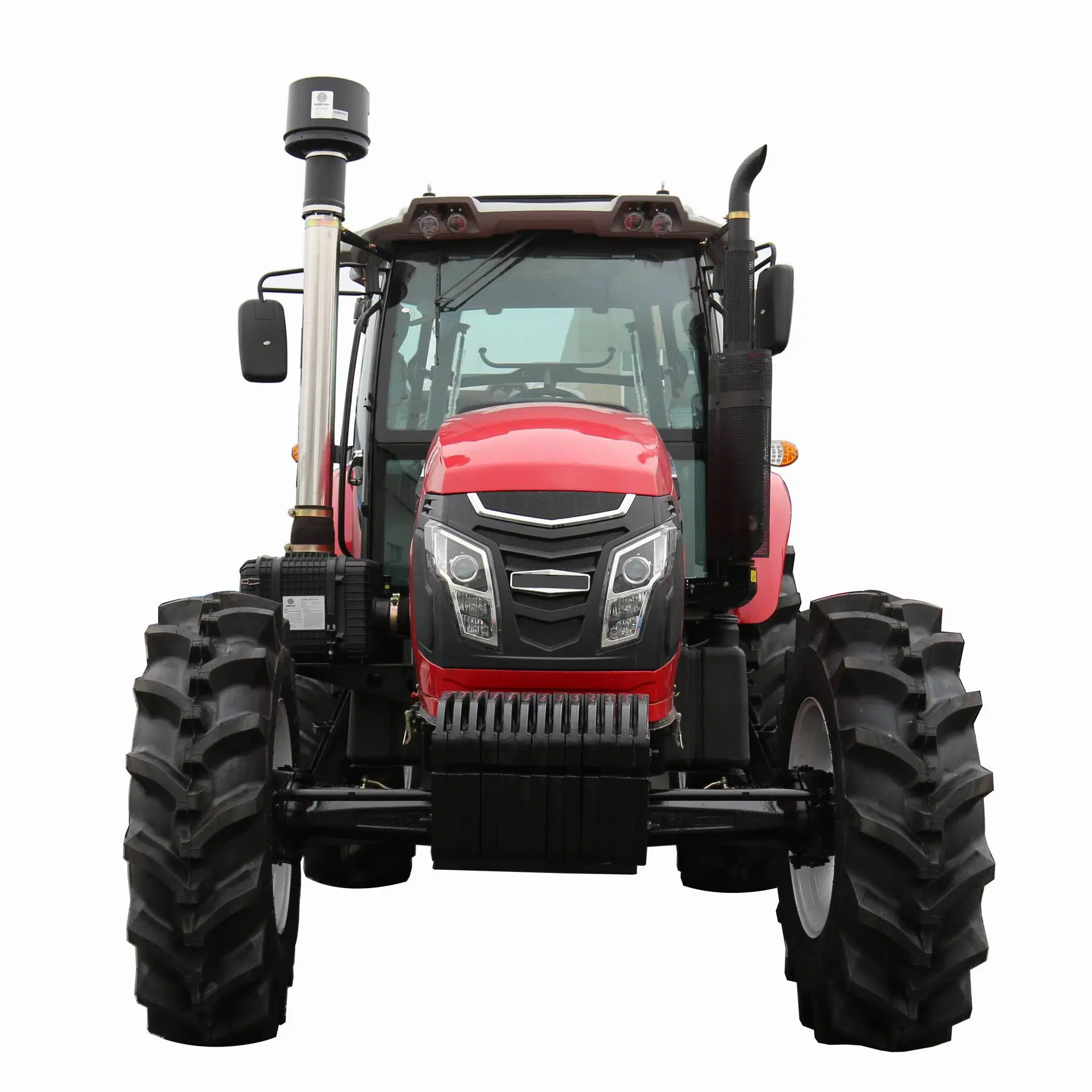

Pictures:
Standard Equipments:
LR6M-3Z-23 Engine,6 Cylinders,16+8 Gear Shift,With Dual-Stage Clutch,Power Steering,Trailer outlet,
protection plate,Tires:14.9-26/18.4-38,hand throttle wire ,4x4 Wheel Drive,3-Point Linkage,
Rear PTO 540/1000, Color follow your need.
Options:
Cab,Canopy,Multi-Way Valve,Air Brake,Front Ballast,Rear Ballast,Tilting Draw Bar,
150hp 4wd Tractor Specs
| Model | 1504 | ||||
| (mm)Dimensions of Tractor | Length (to front ballast) | 5060 | |||
| Width | 2345 | ||||
| Height (to the exhaust vent) | 2995 | ||||
| Tread | Front Wheel | 1612-2202 | |||
| Rear Wheel | 1650-2420 | ||||
| Axle Base | 2582 | ||||
| Min.Ground Clearance | 395 | ||||
| Structure weight (kg) | 5545 | ||||
| Ballast weight (kg) | Front ballast | 440 | |||
| Rear ballast | 480/516 | ||||
| Rated traction force (kN) | 28 | ||||
| Engine | Model | LR6M3Z-23 | |||
| Type | Vertical,6-Cylinder,Water Cooled and 4-stroke | ||||
| Rated Power(kw) | 111.1 kW | ||||
| Rated speed (r/min) | 2300 | ||||
| Fuel | Diesel | ||||
| Tyre | Front Wheel | 14.9-26/(optional 14.9-24) | |||
| Rear Wheel | 18.4-38/(optional 18.4-34) | ||||
| Clutch | Dry, Dual-stage clutch | ||||
| Steering | power steering | ||||
| Transmission Type | 16F+8R Shuttle shift/ Creeper gear shift | ||||
| Suspension Type | 3-point links | ||||
| PTO | Type and Rev | Semi-independent Type 760/1000 or540/1000 (optional) | |||
| Spline Size | F35 Rectangle Spline with 6 teeth | ||||

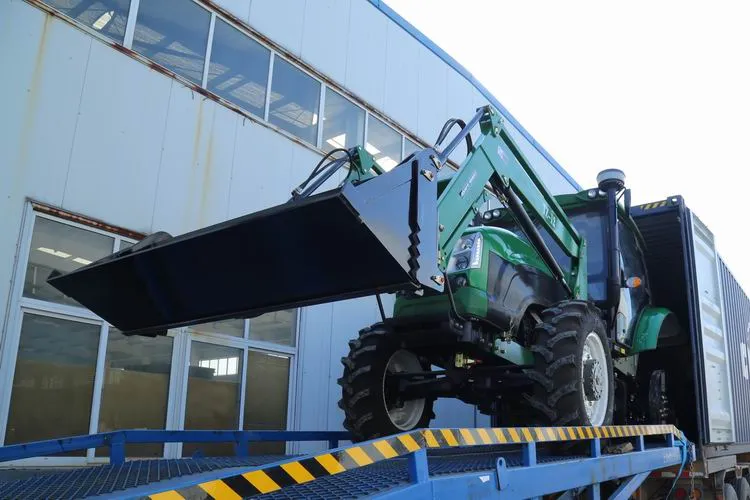

TZ-14 Front End Loader with 4 - in - 1 Bucket Specifications:
| Model | TZ-14 |
| Bucket capacity(m3) | 1.45 |
| Rated Load(Kg) | 1200 |
| Overall dimensions(mm) | 5850×2100×3600 |
| Max. dump height(mm) | 4100 |
| Max. dump distance(mm) | 1400 |
| Bucket rollback angle (degree) | 420 |
| Max. unloading angle (degree) | 460 |
| Max. scraping depth(mm) | 160 |
| Lifting time to pivot pin(s) | 10 |
| Descending time(s) | 10 |
| Recommended Tractor(hp) | 140-160 |
LW-14 Backhoe Specifications:
| Model | LW-14 |
| Bucket Capacity(m3) | 0.07 |
| Bucket Wide(mm) | 550 |
| Max.digging depth(mm) | 3500 |
| Max.digging Radius(mm) | 4300 |
| Max.digging Height(mm) | 4300 |
| Discharging Height(mm) | 2770 |
| Max.digging depth(2ft) Flat bottom(mm) | 3350 |
| Swing Angle(degree) | 180° |
| Bucket Rotation(degree) | 172° |
| Dipper stick Digging Force(Kg) | 2700 |
| Operating pressure(Mpa) | 16 |
Packaging & Delivery:
-2 units inside 1x40'fcl assembled,
-Delivery time: 30 days after receiving your deposit

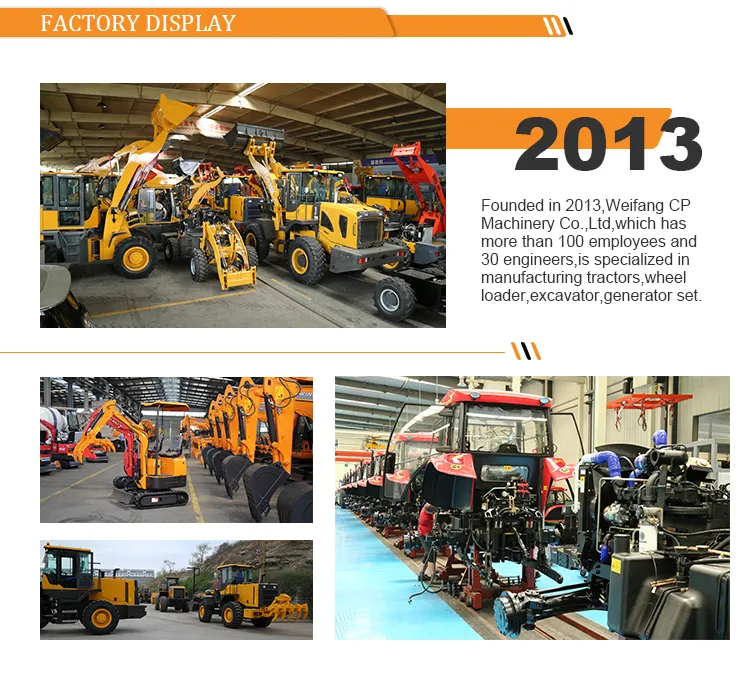

Company Information:
