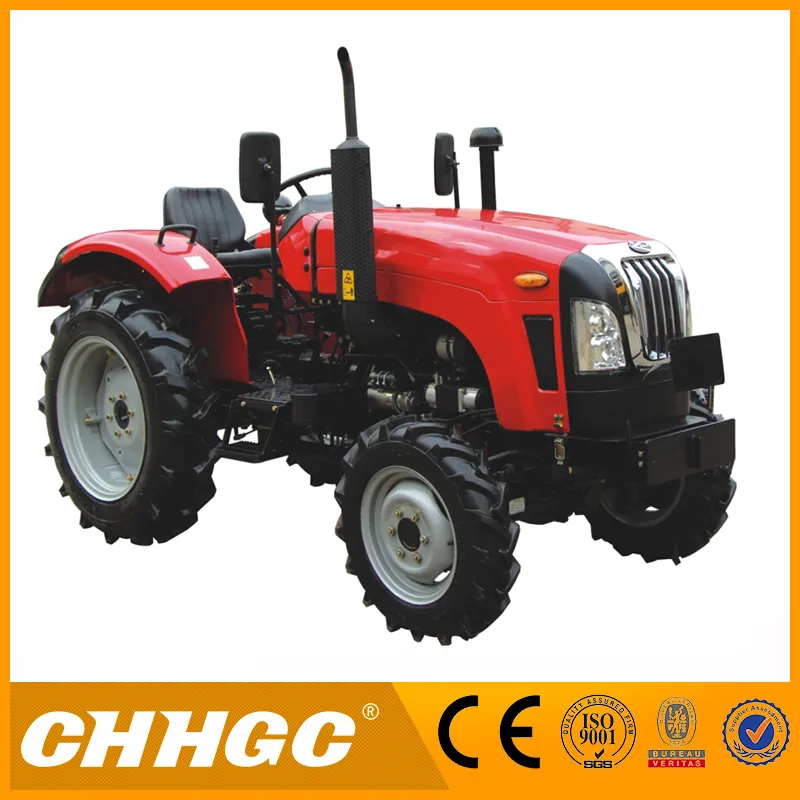

China Cheep Farm Tractor Machinery 50HP Garden Wheeled Tractor

Product Description

Cheep farm tractor machinery 50HP garden wheeled tractor

Products Description
Dimention: 3848× 1708× 2300
Engine: 4 cylinder diesel engine
Rated speed(r/min): 2300
PTO speed(rpm): (540, 1000); Or (720, 1000), or (540, 720)
Clutch: Dry, Single Piece, Independnt operation, Double Acting

Gearbox: 8F+4R, direct gear compound shaft, creeper gear and shuttle gear optional

Linkage: CategoryIIrear-mounted 3-point linkage
The smallest clearance(mm): 370

The features of 50hp farm tractor

1. This series tractors are characterized by compact structure, convenient operation and maintanance, high reliability, high versatility and interchangeability for the parts and wide adaption range
2. There are many optional parts such as one-stage clutch, dual-stage clutch, creeper gear, shuttle gear, air brake system, hydraulic steering, combine panel, hydraulic output system and so on so as to achieve multifunction combination for meeting different requirements of the users.
3. Double speed PTO(540r/min, 1000r/min) according to the international standard.
4. Strong lifting capacity and large traction force.
5. Wide turning angle, good mobility, high ground clearance and good seal.

Farm tractors 25~130hp we can supply.

Our tractor have over 70 types tractor main in 6 series.
1.30 series 250-354 (from 25hp-35hp 2/4wd)
2.40 series 400-554B (from 40hp-55hp 2/4wd)
3.50 series 550-654 (from 55hp-65hp 2/4wd)
4.80 series 700-854B (from 70hp -85hp 2/4wd)
5.90 series 800-1004(from 80hp-100hp 2/4wd)
6.100 series 1104-1304(from 110hp-130hp 4wd)

TS854 tractor technical parameters

Model		TS500		TS504
General Specifications	Type	4x2		4x4
	Overall dimensions LxWxH(mm)	3829 × 1708 × 2200		3848 × 1708 × 2300
	Constructional weight(kg)	1805		1960
	Rated traction force(kn)	12.5		13.5
	Wheel base(mm)	2037		1692
	Front wheel tread(mm)	1270-1670Adjustable		1430-1630Adjustable
	Rear wheel tread(mm)	1220-1620Adjustable		1320-1620Adjustable
	Min.land clearance(mm)	420		370
	Min.quality in use(kg)	1965		2120
	Front wheel tyre size	6.0-16		8.3-20
	Rear wheel tyre size	12.4-28		12.4-28
	Min.turning radius(mm)Unilateral Braking/ Unilateral Nonbraking )	4.1/3.4		4.2/3.5
	Theoretical speed(km/h)	Creeper	shuttle gear	Creeper	shuttle gear
Engine	Model	JD4100
	Type	Straight line,upright,water-cooled,4-stroke
	12 hours power ( kw )	36.8
	Rated Speed ( r/min )	2300
	Fuel consumption(g/kw.h)	≤ 242
	Max.torque(N.m)	≥ 210
	Speed of Max.torque ( r/min )	≤ 1680
	BorexStroke(mm)	φ 100 × 105
	Diesel Consumption ( g/kW.h )	≤ 2.04
	Starting mode	Electric
Break System	Service Brake	mechanical,wet,disk
	Parking Brake	locking pedaltype
Transmission	Clutch	Dry type,single disk,two stage,constant mesh
	Gear box	8F+4R,direct gear compound shaft,creeper gear and shuttle gear optional
	Steering	Hydraulic steering
	Steering type	Wheelsteering
	Main Drive	Spiral bevel gear
	Differential Mechanism	Dowel pin type,two planetary gearing,closed
	Final Drive	Single stage,external,planetary gearing
Operating System	Lifter tilling depth control	Draft & position adjustable lifter
	Max.lifting capacity(kn)	≥ 8.3
	Suspension type	postposition, Three- point,I category
	Speed of P.T.O.(r/min)	( 540 , 1000 ); or ( 720 , 1000 ), or ( 540 , 720 )
	Type of P.T.O.	postposition semiindependent
	Traction Equipment	Swing draw bar

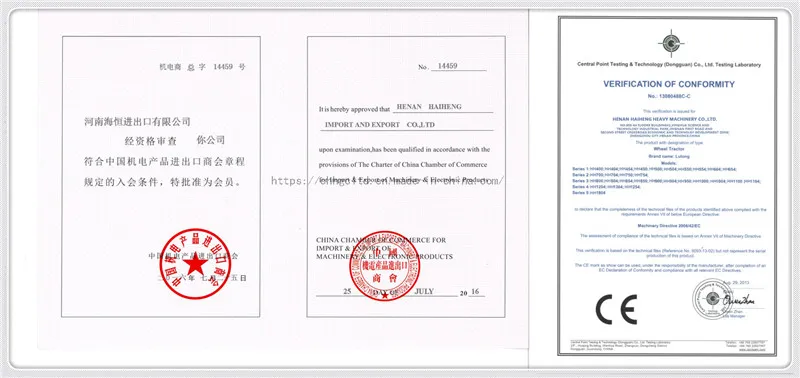

Certificate
Cheep Farm Tractor Machinery 50HP Garden Wheeled Tractor

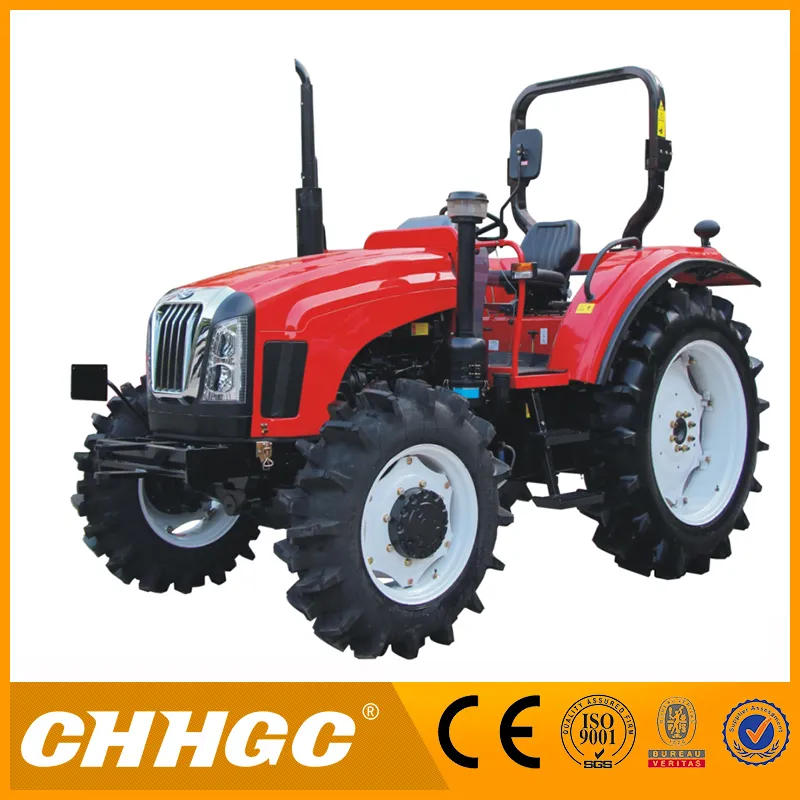

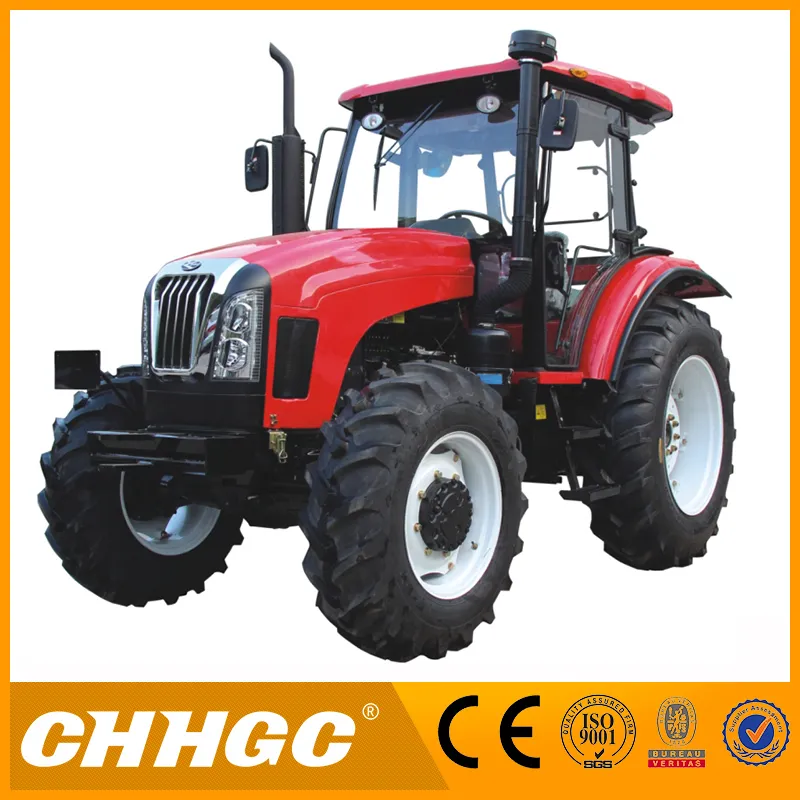

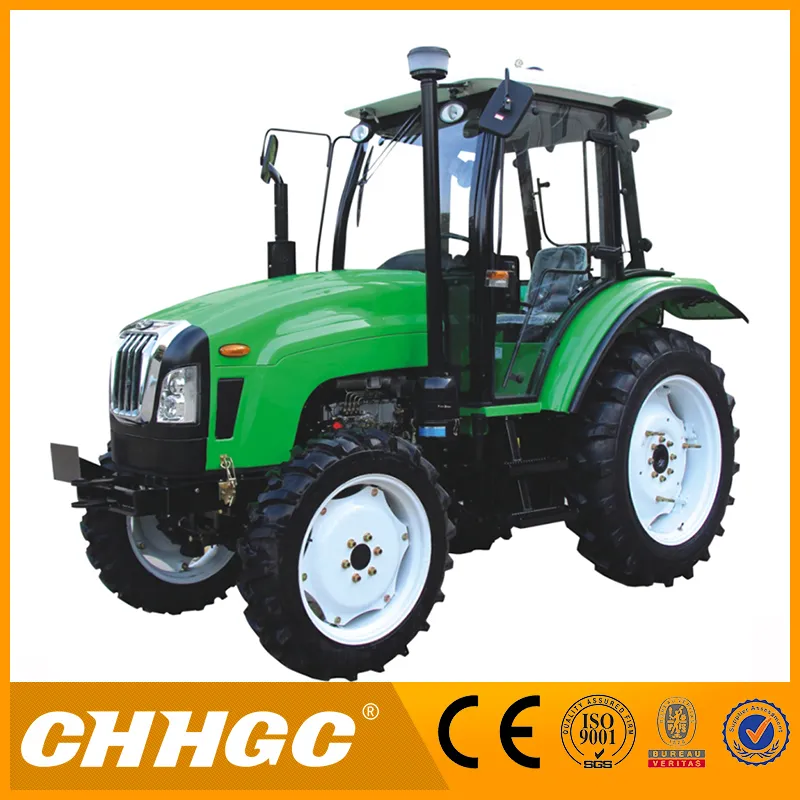

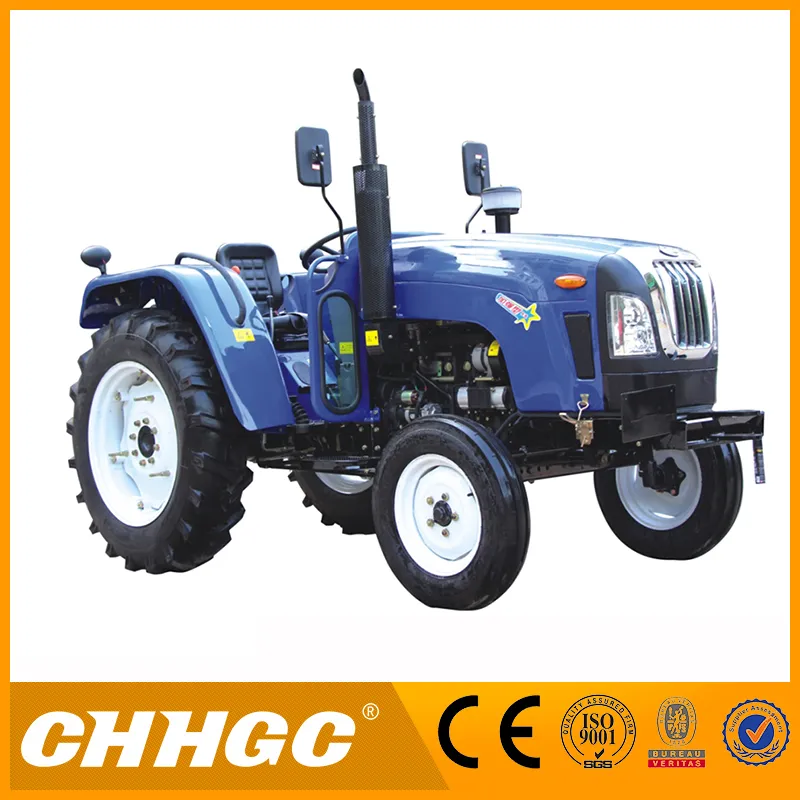

Other Models
