CE Approved Energy Saving 4WD 150HP Agriculture Machinery
PRODUCT NAMEHX1504 150HP 4x4 4WD Tractor with AC Cabin/sunshade CE approved BRIEF INTRODUCTION OF HUAXIA TRACTORBRIEF INTRODUCTIONBRIEF INTRODUCTION OF HUAXIA TRACTOR FACTORY1. We have the MOST ADVANCED HIGH HORSE POWER TRACTOR production line in China or even the world with the highest labor produc......
Send Inquiry
Product Description
PRODUCT NAME
HX1504 150HP 4x4 4WD Tractor with AC Cabin/sunshade CE approved
BRIEF INTRODUCTION OF HUAXIA TRACTOR
BRIEF INTRODUCTION
BRIEF INTRODUCTION OF HUAXIA TRACTOR FACTORY
1. We have the MOST ADVANCED HIGH HORSE POWER TRACTOR production line in China or even the world with the highest labor productivity,
2. We are one of the largest tractor manufacturers in china for 17 years . Our main product is 10hp to 150hp fit with implements.
3. Reasonable prices;
4. More than 20000.00 sets annual output;
5. More and more mature After-Sales Service;
6. CE and ISO9001 Certified .
SPECIFICATIONS
| HX1354,HX1454,HX1504 | |||||
| Model | 1304 | 1354 | 1454 | 1504 | 1604 |
| Tractor | |||||
| 4×4 | |||||
| Wheel-Driving | 5060×2330×2983 | 5060×2345×2940 | |||
| Dimensions | 5510 | 5700 | |||
| Weight(kg) | 1784,1792,1912,1954,2074,2082,2202 | ||||
| Front Wheel Tread(mm) | 1650~2285 | 1620~2420 | |||
| Rear Wheel Thread(mm) | 2582 | ||||
| Wheel Base(mm) | 480 | ||||
| Gear Shift | 16F+8R | ||||
| Tyre | 14.9-24/18.4-34 | 14.9-26/18.4-38 | |||
| Engine | |||||
| Model | QC6108/LR6M5-T90 | QC6110/LR6A3Z | LR6M3Z-T173 | QC6105Z/LR6M3Z-T146X | LR6M3Z-T146Y |
| Engine | Water cooling,Vertical,4 Stroke,Direct Injection | ||||
| Rated Power(kW) | 95.6 | 99.3 | 106.6 | 110 | 117 |
| Rated Speed(r/min) | 2200/2300/2400 | ||||
| Starting Method | Electric | ||||
| Transmission | 4×(2+1)×2 | ||||
| Clutch | Single,Dry Friction, Dual Stage Clutch | ||||
| PTO speed | 8 540/760 or 760/1000 or 540/1000 | ||||

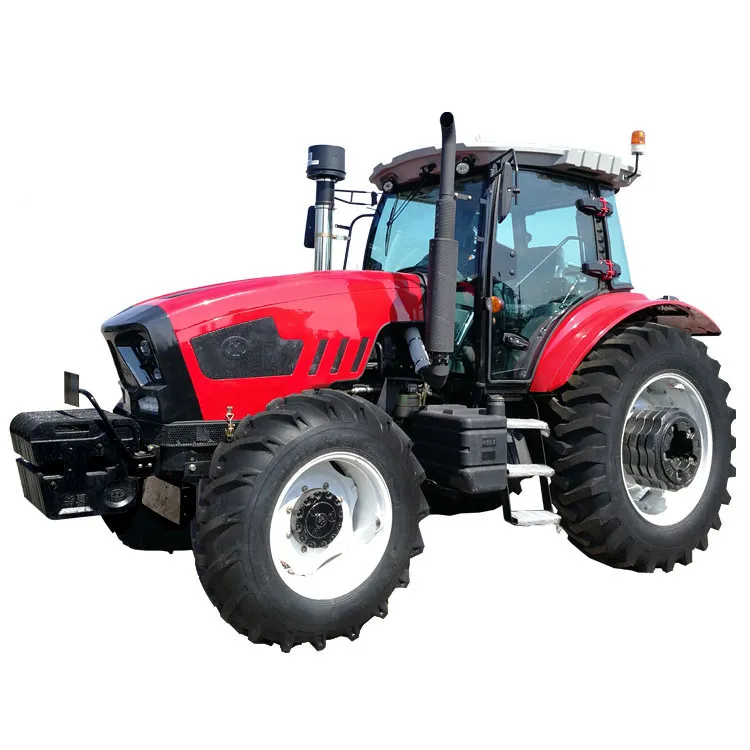

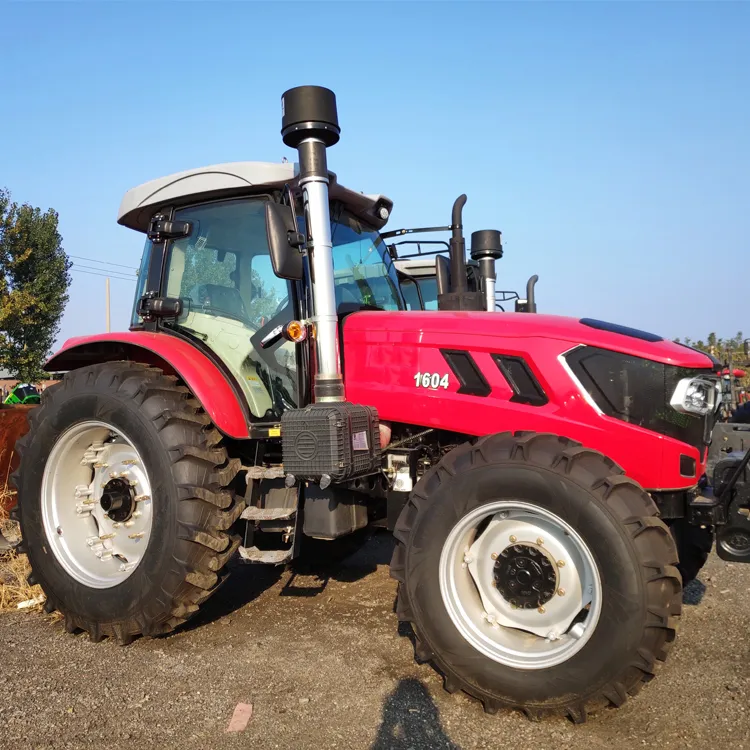

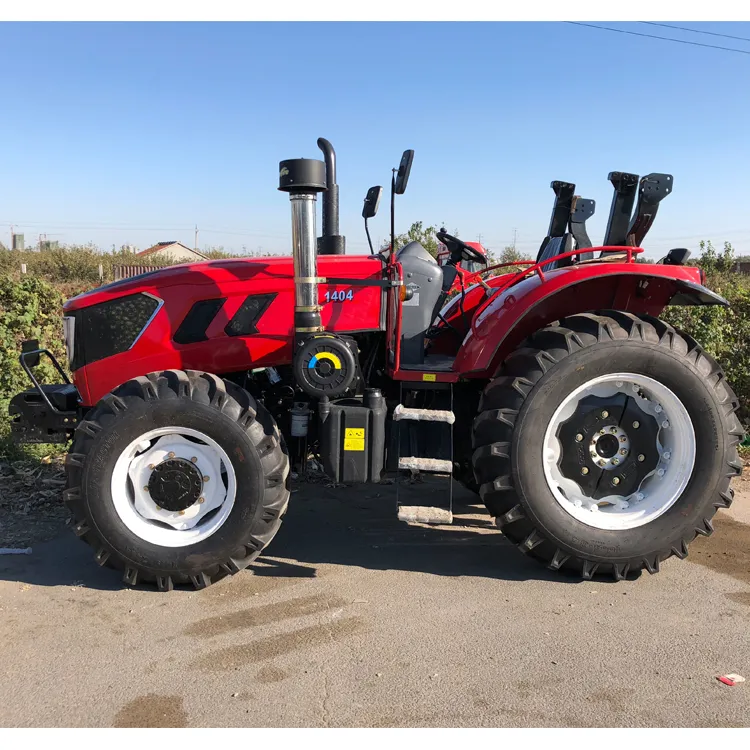

Tractor PICTURES
CUSTOMERS' VISITING & SHIPMENT
LOADING
Without cab ,20ft container load 1 unit .
With cab ,90hp to 110hp ,20ft container load 1 unit ,40ft container load 3 units.
120hp with cab ,40ft container load 2 units .
COMPANY PROFILE & TEAM
OUR SERVICE
Warranty time and the Spare Parts
1. Warranty time
We supply you 2 years warranty time.
2. Spare Parts
The Easy-damage parts, we will send you together with the tractor for free. And in warranty period, if the spare part is not work because of the quality, we will send you new parts for free.
3. Tool Box
We will send you the tool Box For free.
CONTACT DETAILS
TEL:+86-536-7599999
