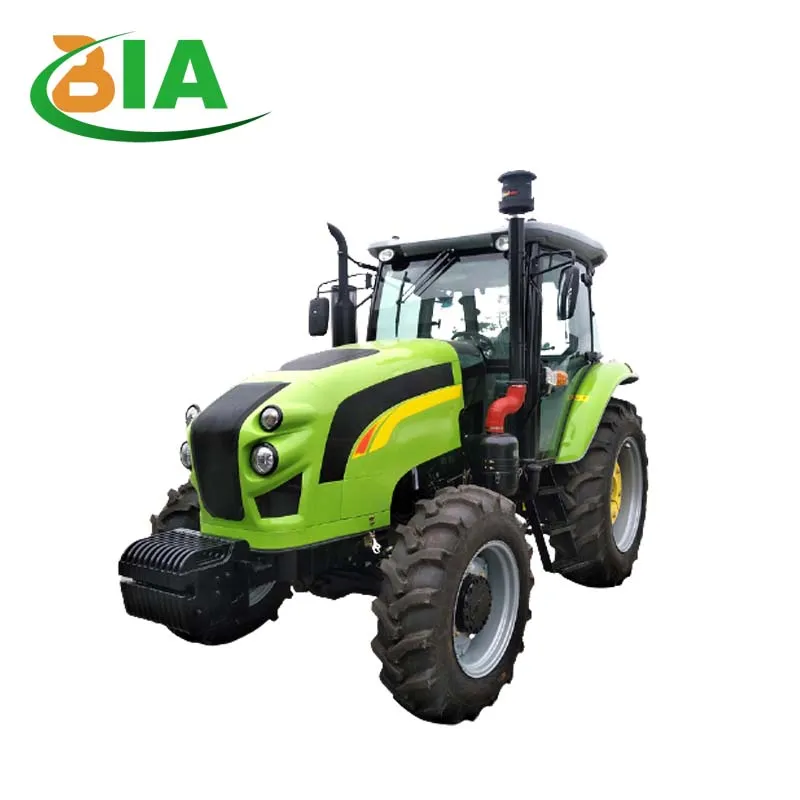

Bia 140HP 150 HP 160 HP 180HP Wheel Tractor for Farm Using
BIA 140HP 150 HP 160 HP 180HP Wheel Tractor For Farm Usingwelcome to contact with us to get more products information, special customized for you.Product DescriptionProduct Parameters ItemsUnitParameterModel BIA 1504Name Wheel tractorDrive type 4WDUsage Farm, TransportOverall dimension:mm5200*2480*......
Send Inquiry
Product Description

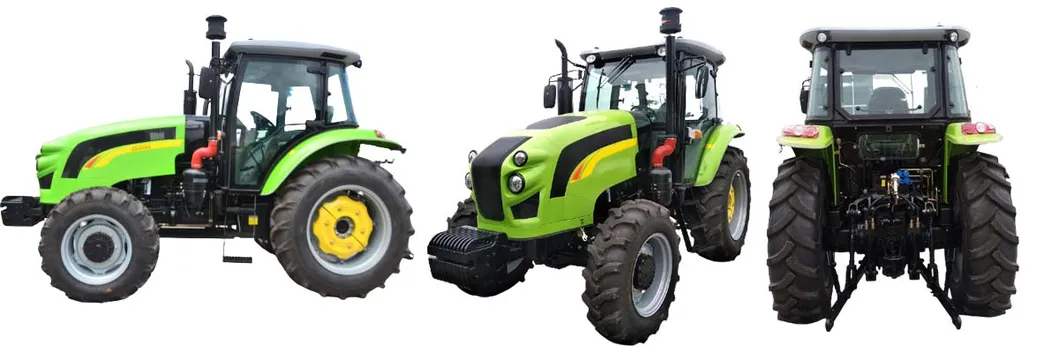

BIA 140HP 150 HP 160 HP 180HP Wheel Tractor For Farm Using
welcome to contact with us to get more products information, special customized for you.
| Items | Unit | Parameter |
| Model | BIA 1504 | |
| Name | Wheel tractor | |
| Drive type | 4WD | |
| Usage | Farm, Transport | |
| Overall dimension: | mm | 5200*2480*3020 |
| Cabin | ||
| Type | Latest safe cabin , Optional: Fan or Heater or A/C | |
| Engine: | ||
| Type | 6-cylinder, in-line, water cooled, four-stroke | |
| Aspiration | Natural | |
| Cylinder | 6 | |
| Bore x stroke | mm | ø105×130 |
| Displacement | L | 6.75 |
| Compression ratio | 17:1 | |
| Rated power | Kw(hp) | 103/140 |
| Rated Rev. | r/min | 2200 |
| Steering, Brake system | ||
| Steering type | Hydraulic | |
| Brake type | Wet, Disc and Hydraulic | |
| Transmission system | ||
| Clutch | Dry, Double-stage | |
| Transmission box | 4x(2+1) x2 combined type | |
| Shift gear mode | Engagement sleeve | |
| Running system | ||
| Frame type | New enhanced frameless | |
| Tire (Front/Rear) | 7.50-20/16.9-34 (2WD)/13.6-24/16.9-34 (4WD) Option: Paddy-field tire | |
| Tire pressure | kPa | 230-210/160 (2WD)/ 230-210/180 (4WD) |
| Working device | ||
| Suspension system mode | Split type | |
| Suspension device type | Post-position three point suspension | |
| Category of suspension system | II category | |
| Adjusting way | Force and position | |
| Gear pump | CB-F325L | |
| Hydraulic output device | Double-way valve | |
| Safety valve open pressure | Mpa | 17.5-18 |
| PTO shaft type | Post-position, Independent | |
| PTO shaft spline | 6/8 | |
| PTO shaft spline diameter | ø35/ ø38 | |
| PTO shaft rev. | 760/850, Optional: 540/1000 | |

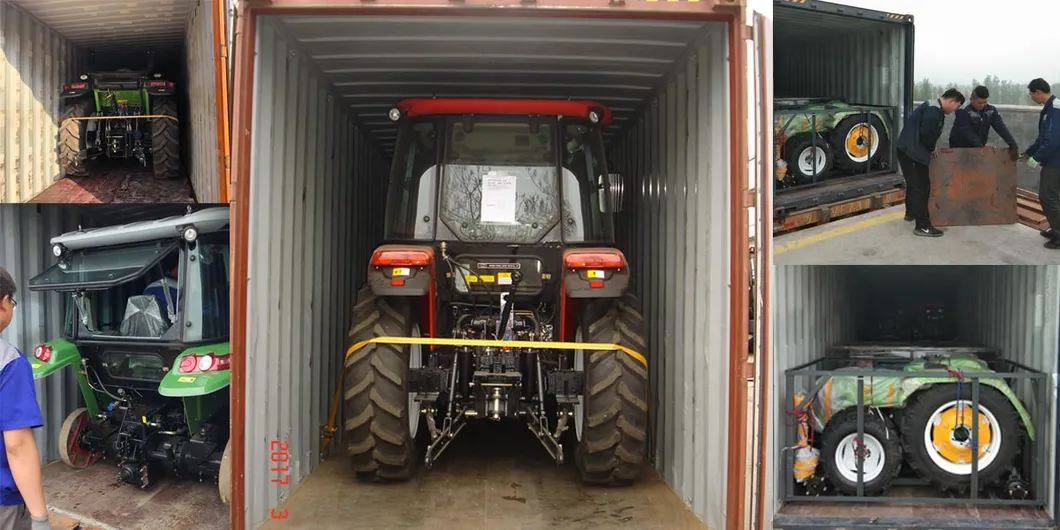

Bulk order we will using Iron box to packing, before packing will disasemble the tyres,ROPS,silencer and so on, Let the container can loading more. If only one or three tractor will be loading in whole body, becuase if disassemble it the client will be hardly to assembly it, influence the working efficiency.
 |  |  |  |
| tractor Trailer |
1. Q: What 's the price of this products?
A: Dear client, please let me know which model or which tractor you want equipped, we will according to your need to choose the most suitable model send you the price list, hoping our service can let you sertisfied.
2. Q: Business terms
A: Shipment time: 20-30days after your deposit payment.
Shipment: By sea
Loading port: qingdao/Tianjin port, China
Destination port: ...To be advised
Payment: T/T, L/C, Wechat/Alipay
Warranty: 1 year, exceptable for spare parts.
Support: Customised. And thorugh video, picture, and people test the machine before shipping.
3. Q: Sample test
A: If you need one sample for test, we could supply for you. Recommend purchase several model implements to share the shipping cost.
4. Q: Why choose BIA for cooperation?
A: BIA is the goal for BE THE TRUSTED SUPPLIER OF CLIENT. Long time cooperation and future order is our common goal.
Do the best Quality, Do the best Service!
