Agricultural Tractor 70-100HP Compact Mini Tractor Th 1004 Power Tiller Tractor
1. Basic Technical DataModel TH1004-Dtype 4×4 wheel typeOverall dimension(mm) length4175 width 1710 height 1260 wheel treadfront wheel 1290/1390rear wheel 1140-1300Wheel base 2060Min.Ground clearance290structure weight (kg)2545Diesel engine model LD4TD100 type inline water cooled four str......
Send Inquiry
Product Description
1. Basic Technical Data
2. Characteristics
Strong Power:
The farm tractor is in the top rank among the same industry in China. Its matched power brand can be Laidong
High efficiency:
1.The tractor adopts fully power steering hydraulic brakes system ,three-point linkage with Category II
2.PTO speed can be selected as 540/1000rpm to be suitable for different farm implements.
3.The tractor independently operated two stage clutch, reasonable 12F+12R shift gears to keep high working efficiency in various field work, transportation and engineering tasks.
High reliability: Strong double pressure lifting device, powerful lifting power, fast lifting speed, stable and reliable.

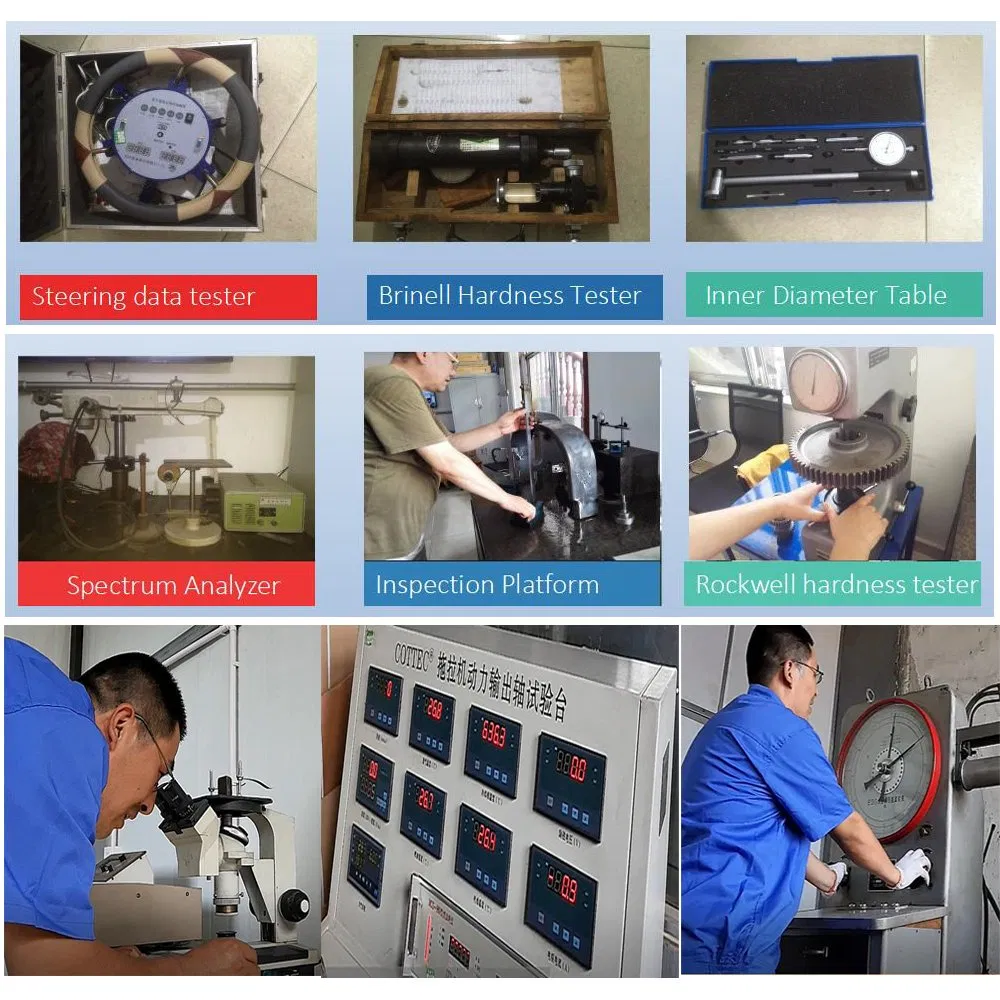

3. Quality control on Spares and finished to keep quality and performance consistent.

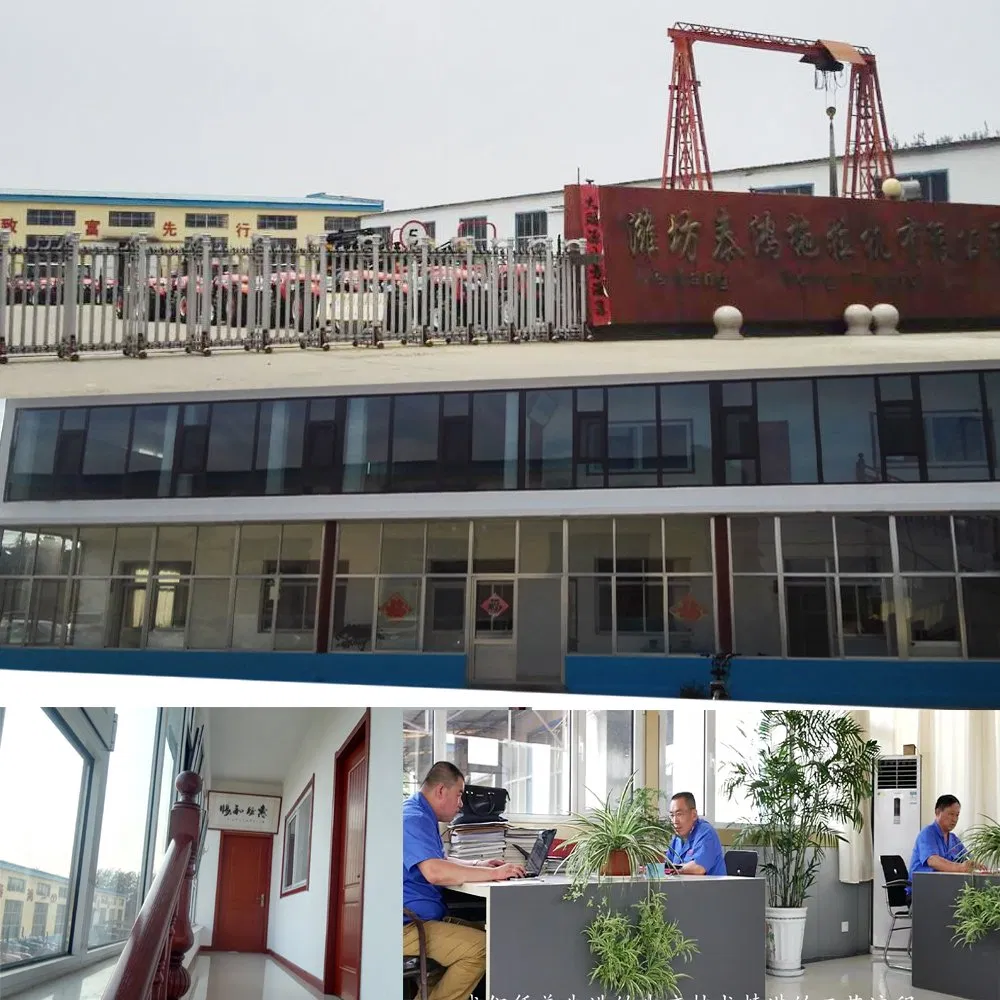

4. About us
Weifang Taihong Tractor Co.,Ltd established in 1990, with coverage of 206677 square meters, is one of the most professional tractor manufacturer in China. With 20 years development, Taihong is capable of producing tractor from 25hp to 240hp and has a large market share at home and abroad. Taihong has its own foundry, casting, machinery processing center. Some parts are made by itself to realize the whole quality control from spare parts.
The products are certified by ISO9001, SGS, CCC and BV.

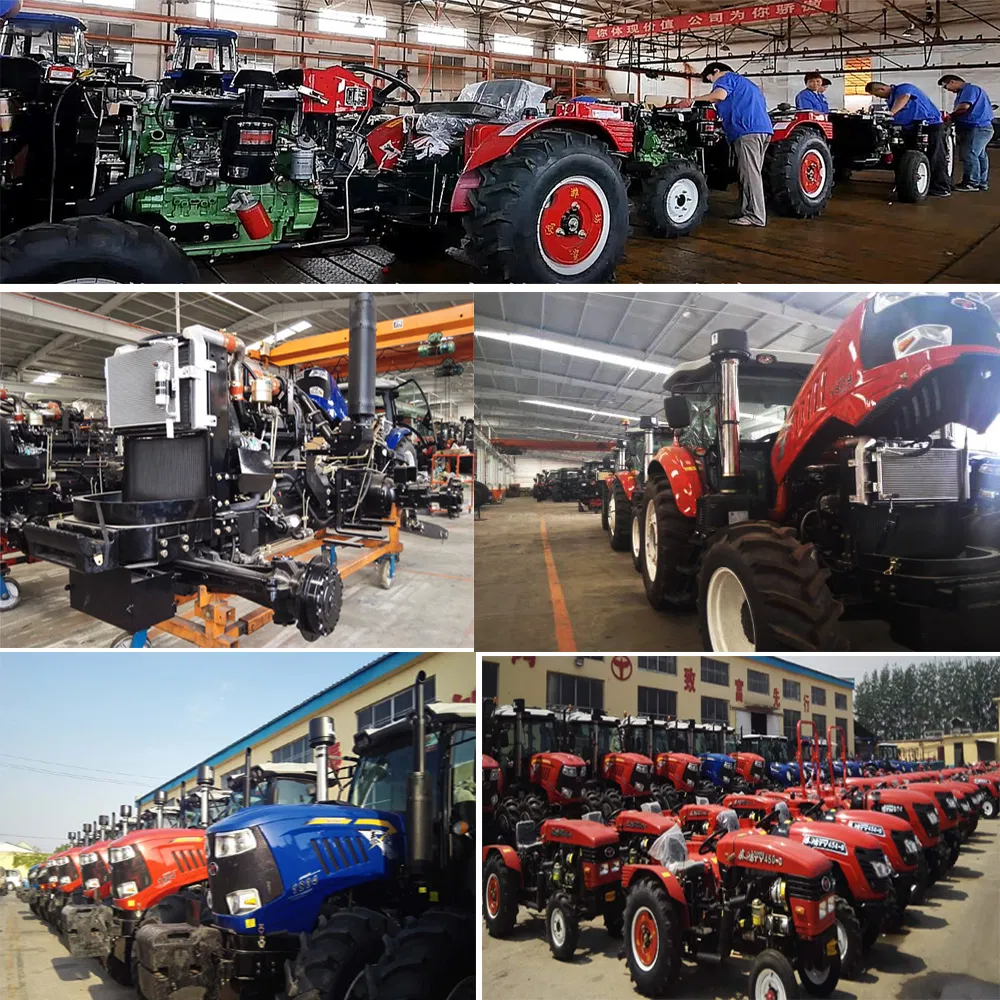

5. Assembly lines and suffiecient stock
6. Our Tractor 25hp-240hp and Certificates
7. The farm implements: Disc plough, disc harrow, cultivator, potato harvestor, mower, front end loader and pbackhoe, snowbrush, hay baler, planter etc.

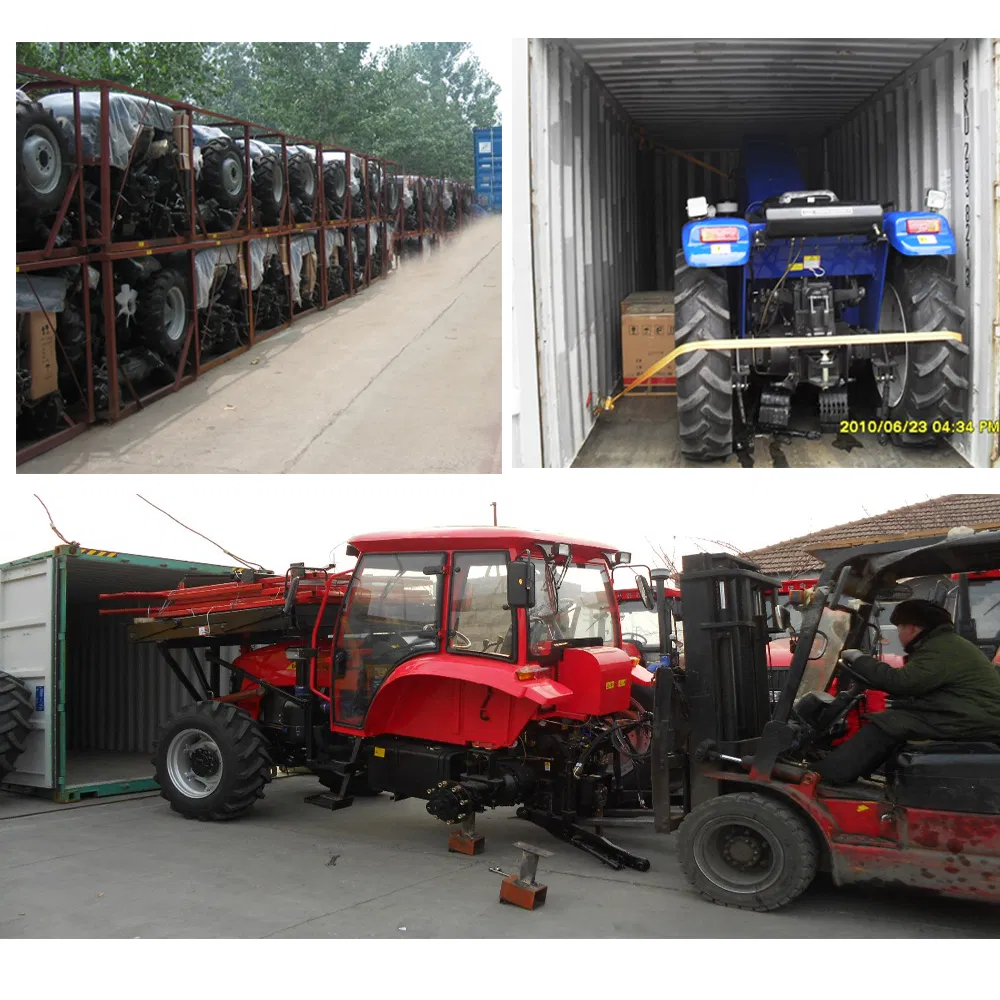

7.Package: metal frame package or nude package
8. Service and Warranty: For main parts,warrnty period is one year from the BL date. During the warranty, if the problem is occuring, please send us problem desctriptions and photos for technical analysis, we will be acting immediately and give solution within 24 hours. From technical analysis,if the problem is because of make, craftsmanship and the manufacturing reason; the relative charges will be borne by seller; if the problem is caused by improper operation, the buyer will take the responsibility and bear the relative charges and seller will try his best provide and other possible support and assistance to solve the problem.
9. Contact Us:
Weifang Taihong Tractor Co.,Ltd
Address: Baotong Street, Weifang City, Shandong Province, China.
wftaihong.en.made-in-china.com
Mobile : 0086-13853650151
Mr. George Li
| Model | TH1004-D | ||
| type | 4×4 wheel type | ||
| Overall dimension(mm) | length | 4175 | |
| width | 1710 | ||
| height | 1260 | ||
| wheel tread | front wheel | 1290/1390 | |
| rear wheel | 1140-1300 | ||
| Wheel base | 2060 | ||
| Min.Ground clearance | 290 | ||
| structure weight (kg) | 2545 | ||
| Diesel engine | model | LD4TD100 | |
| type | inline water cooled four stroke four cylinder | ||
| rated power (kw) | 73.5 | ||
| rated speed (r/min) | 2200 | ||
| fuel type | diesel | ||
| tire | front wheel | 650-16 | |
| rear wheel | 11.2-24 | ||
| clutch | dual stage clutch | ||
| steering | cycloid rotary valve ,all hydraulic steering | ||
| transimission | 12F+12R | ||
| Suspension type | rear postioned 3-ponit links catageory I | ||
| PTO | type and speed | 540/1000 or 720/1000 | |
| spline size | ø35 6 teeth | ||
2. Characteristics
Strong Power:
The farm tractor is in the top rank among the same industry in China. Its matched power brand can be Laidong
High efficiency:
1.The tractor adopts fully power steering hydraulic brakes system ,three-point linkage with Category II
2.PTO speed can be selected as 540/1000rpm to be suitable for different farm implements.
3.The tractor independently operated two stage clutch, reasonable 12F+12R shift gears to keep high working efficiency in various field work, transportation and engineering tasks.
High reliability: Strong double pressure lifting device, powerful lifting power, fast lifting speed, stable and reliable.
3. Quality control on Spares and finished to keep quality and performance consistent.
4. About us
Weifang Taihong Tractor Co.,Ltd established in 1990, with coverage of 206677 square meters, is one of the most professional tractor manufacturer in China. With 20 years development, Taihong is capable of producing tractor from 25hp to 240hp and has a large market share at home and abroad. Taihong has its own foundry, casting, machinery processing center. Some parts are made by itself to realize the whole quality control from spare parts.
The products are certified by ISO9001, SGS, CCC and BV.
5. Assembly lines and suffiecient stock
6. Our Tractor 25hp-240hp and Certificates
7. The farm implements: Disc plough, disc harrow, cultivator, potato harvestor, mower, front end loader and pbackhoe, snowbrush, hay baler, planter etc.
7.Package: metal frame package or nude package
8. Service and Warranty: For main parts,warrnty period is one year from the BL date. During the warranty, if the problem is occuring, please send us problem desctriptions and photos for technical analysis, we will be acting immediately and give solution within 24 hours. From technical analysis,if the problem is because of make, craftsmanship and the manufacturing reason; the relative charges will be borne by seller; if the problem is caused by improper operation, the buyer will take the responsibility and bear the relative charges and seller will try his best provide and other possible support and assistance to solve the problem.
9. Contact Us:
Weifang Taihong Tractor Co.,Ltd
Address: Baotong Street, Weifang City, Shandong Province, China.
wftaihong.en.made-in-china.com
Mobile : 0086-13853650151
Mr. George Li
