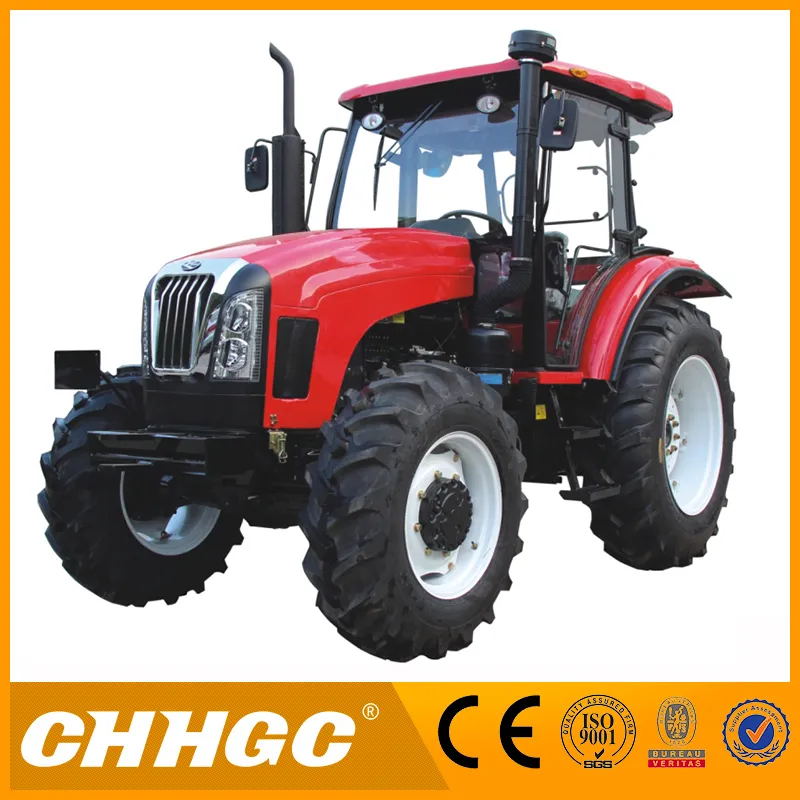

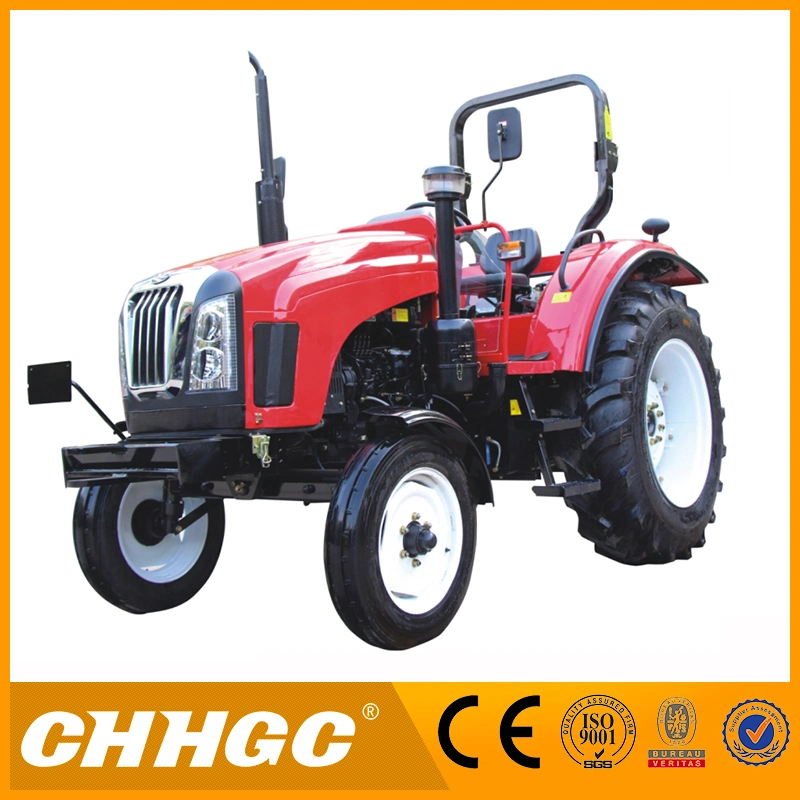

China 110HP 4WD Tractor with Farm Tractor Implements

Product Description

110hp 4WD tractor with farm tractor implements
Main Features:
1. Adopt Xinchai diesel engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency;
2. Double-function clutch,10 inches, high transmission capacity, reliable, comfortable manipulation;
3. Gearbox using 4 × 3(1 +1) engaging sleeve, shuttle-type gearshift, there are 12 forward gears, 12 reverse gears, reasonable match between the gears, and have high efficiency;
4. Independent power take off device, smooth transmission, large capacity, speed (540/760, 540/1000 r/min) for selection to meet the different operation requirements;
5. Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save energy;
6. Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good;
7. Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned;
8. Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio;
9. New streamlined appearance, generous, modern, fashion;
10. Control levers can be mounted at side as optional, more convenient and comfortable.

Model		HH1104
Drive Type		4×4
Overall Dimension L×W×H(mm)		4650×2038×2970
Wheel base(mm)		2449
Front wheel tread(mm)		1610
Rear wheel tread(mm)		1620-2020
Min. ground clearance(mm)		379
Min. steering radius	Unilateral brake(m)	4.8±0.2
	Not unilateral brake(m)	5.5±0.2
Min. operating weight (KG)		4249
Gearbox gears number		16F+8R
Speed	Forward(Kw/h)	1.58-33.69
	Reverse(Kw/h)	2.41-34.67
Engine	Model	LR6W5U22/0810E
	Rated power (Kw)	81
	Rated speed (r/min)	2300
Tires spec.	Front tires	12.4-24
	Rear tires	16.9-34
Steering Type		Full hydraulic front wheels steering
Max. lifting force( KN )		19.5
PTO	Type	Rear-mounted, Independent type
	Speed (r/min)	760/1000 or 540/1000 or 540/760 or 760/850
	Power(Kw)	68.9
Control type of ploughing depth		Height control & flotation control
Max. traction force (KN)		25.7
Front / rear Ballast (KG)		270/470

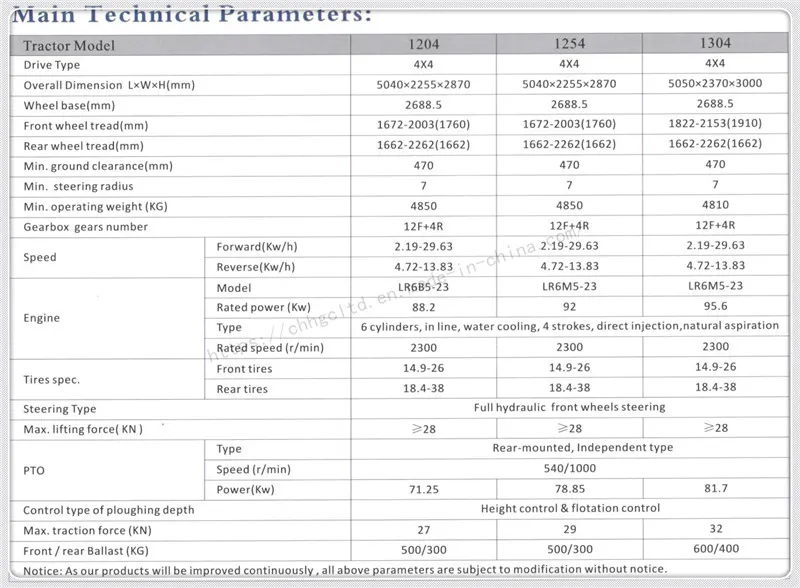

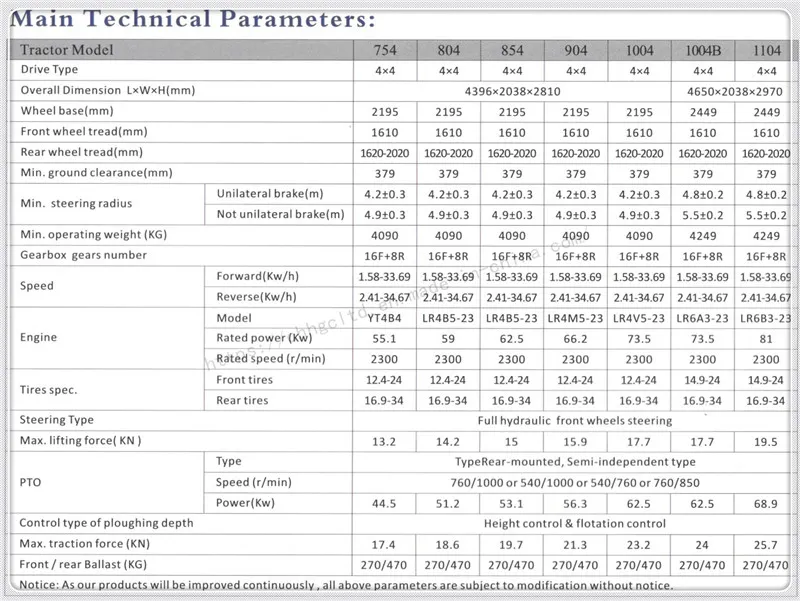

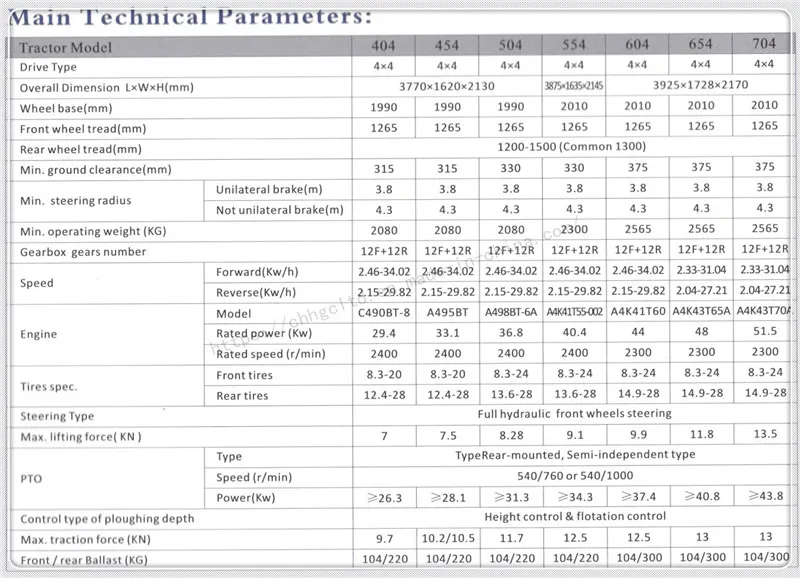

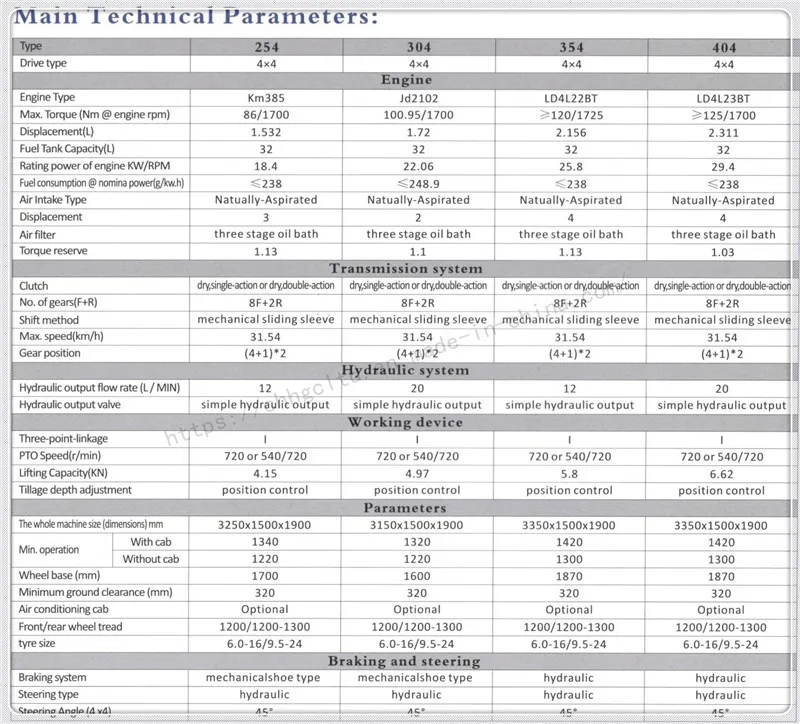

Technical Parameters

110HP 4WD Tractor with Farm Tractor Implements

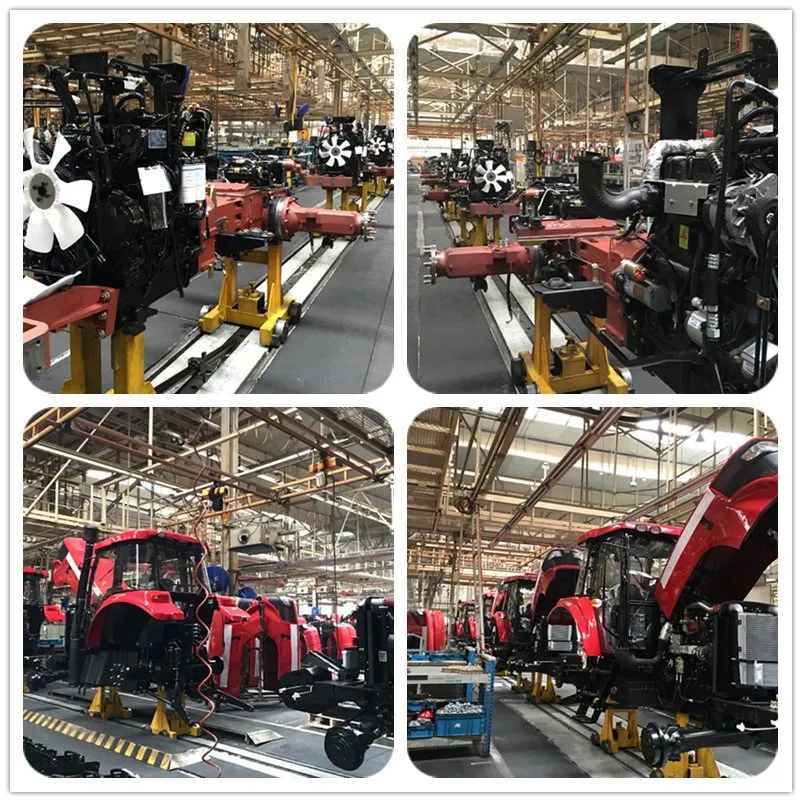

Production Workshop
110HP 4WD Tractor with Farm Tractor Implements

Certificate
110HP 4WD Tractor with Farm Tractor Implements

Business Partners
110HP 4WD Tractor with Farm Tractor Implements

FAQ

Q1. How to ship the Tractors?
A: By container, bulk ship, RORO.

Q2. Do you have different horsepower tractors?
A: Yes,we supply different model tractors and exported to many countries.

Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
T/T, deposit in advance, and balance paid before delivery from factory.

Q4. Which model tractors do you supply?
A: We supply all kinds of tractors such as walking tractors, wheel tractors etc,.

Q5. What is your terms of delivery?
A: FOB, CIF.

Q6. How about your delivery time?
A: Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: What can you guarantee to your business partner?
A: Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
