The King of Quantity 2.5ton 550*1150mm Hand Pallet Truck
China Warehouse Equipment Hand Pallet TruckFeature:1. Hand brake / drive hand pallet truck2.Easy 3 position control handle-- Raise, Lower, Neutral.3. Ergonomic rubber wrapped handle, which is comfortable and convenient to operate.4. Fork Lowering speed is controllable, operated by hand control and f......
Send Inquiry
Product Description
China Warehouse Equipment Hand Pallet Truck
Feature:
1. Hand brake / drive hand pallet truck
2.Easy 3 position control handle-- Raise, Lower, Neutral.
3. Ergonomic rubber wrapped handle, which is comfortable and convenient to operate.
4. Fork Lowering speed is controllable, operated by hand control and foot pedal.

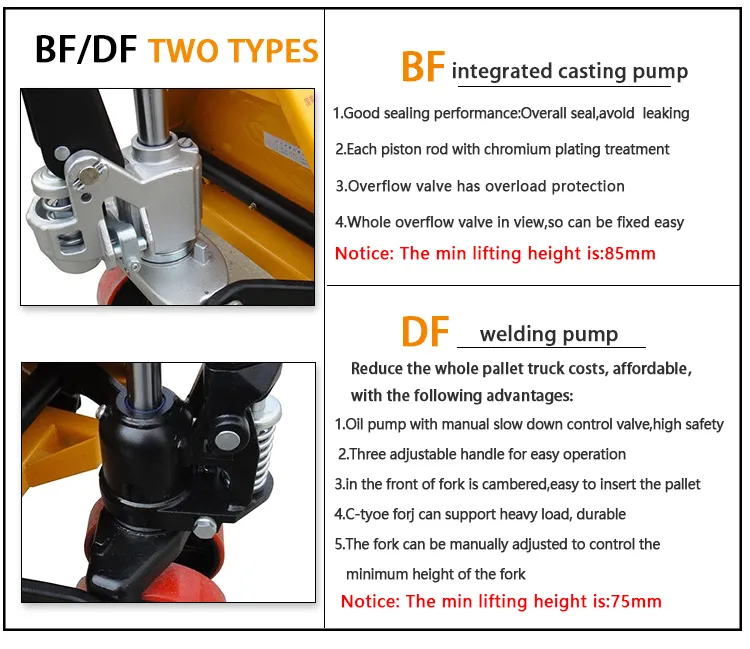

5. Integrated casting pump without welding, with safety overload&bypass system
6.Hand pallet truck is with entry & exit rollers
7.Tope Balanceable reinforced fork frame
8.Solid steel lifting rods for extra strength
9.Optiions : Nylon wheel ,Rubber Wheel , gingle fork load wheel or tandem fork load wheel
10.Special requirements are available
11.Materials and specifications are subject to change without notice
Specifications
| Model | BF | DF | ||
| Capacity | Q(kg) | 2500/3000 | 3500 | 2500/3000 |
| Service weight | kg | 65-80 | 100 | 65-77 |
| Fork wheel single | mm | 200/180 | 200/180 | 180 |
| Fork wheel tandem | mm | 80/74 | 80/74 | 80/74 |
| Max.lift height | h3(mm) | 115 | 115 | 110 |
| Max./min height of the handle in the drive position | h14 (mm) | 1224/1214 | 1234/1224 | 1233.5/1223.5 |
| Lowered fork height | h13(mm) | 85/75 | 85/75 | 85/75 |
| Overall length | l1(mm) | 1533(1483/1603) | 1533(1483/1603) | 1528.5/1598.5 |
| Fork size | s/e/l | 45/160/1150(1100/1220) | 53/160/1150(1100/1220) | 53/160/1150(1220) |
| Width overall forks | b5(mm) | 520/550/685 | 520/550/685 | 520/550/685 |
| Ground clearance,centre of wheelbase | m2(mm) | 40/30 | 32/22 | 32/22 |
| Aisle width for pallets 1000*1200 crossways | Ast(mm) | 1733/1803 | 1733/1803 | 1728.5/1798.5 |
| Aisle width for pallets 800*1200 lengthways | Ast(mm) | 1783/1803 | 1783/1803 | 1778.5/1798.5 |
| Turning radius | Wa(mm) | 1266/1336 | 1249/1319 | 1244.5/1314.5 |
Find the Right Pallet Truck for You

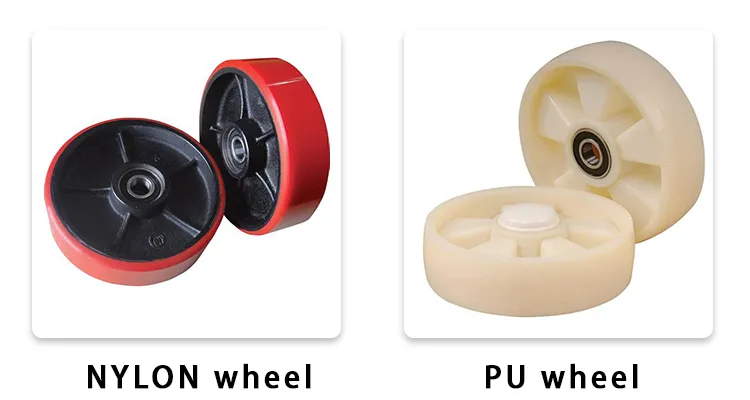

two types of wheel can choose

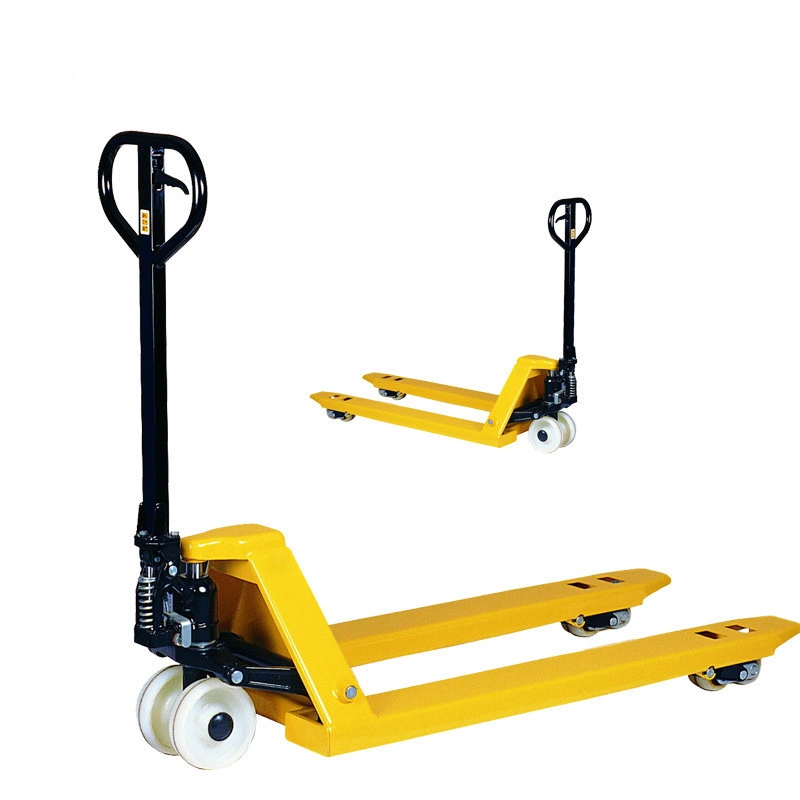

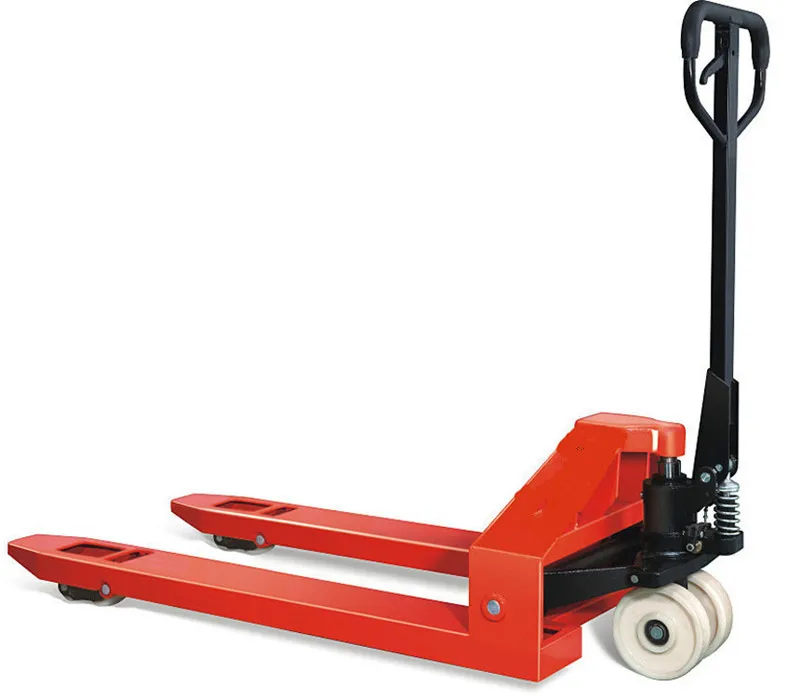

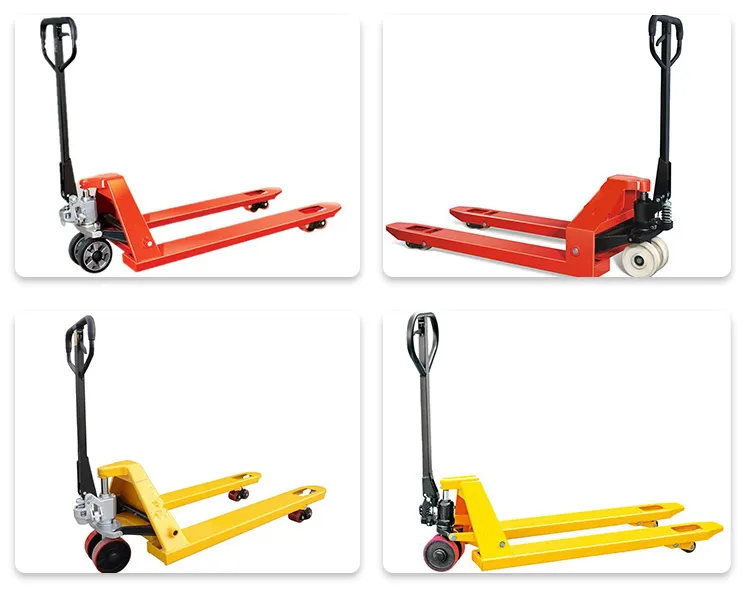

Product Show:
Payment
| Payment term | L/C | l/c amount above 40.000 usd,we can accept L/C at sight | |
| T/T | EXW | 30% T/T in advance,paid the balance before shipment | |
| FOB | |||
| CIF | 30% T/T in advance,paid the balance against copy of B/L | ||
| cfr(c&f) | |||
| paypal | amount lower than 4000usd | ||
| west | |||
| Delivery time | 15~35days after receiving payment for one container |
| We welcome use trade assurance,you`ll enjoy: 100% product quality protection 100% on-time shipment protection 100% payment protection for your covered amount |
1.One copper core oil valve group, oil pump service life longer;
2.Oil leak proof and reliable hydraulic system;
3.Three section of plastic handle;
4.Strong light steel structure;
5.Optional:
1)Nylon, PU, Rubber, single loading wheel, tandem loading wheel;
2)Fork length: 500-3000mm.
Contact: Miss Angela dong
Hangzhou Dele Electrical Co.,Ltd
