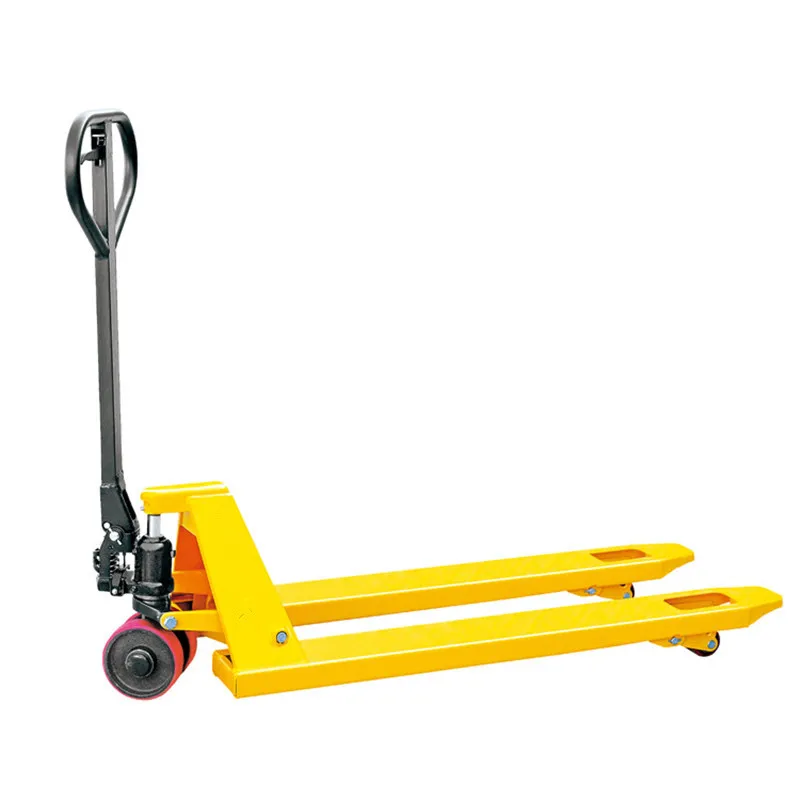

Reliable Quality 2.5t Whole Pump 550* 1150 Hand Pallet Truck
2017 China Warehouse Equipment Hand Pallet TruckIntroduct:1.Sometimes known as a pallet jack or a pallet lifterpallet truck is specially designed to lift and transport the widest variety of loads in stores and warehouses. Easy and convenient to work with, the trucks are fast and reliable for a vast ......
Send Inquiry
Product Description
2017 China Warehouse Equipment Hand Pallet Truck
Introduct:
1.Sometimes known as a pallet jack or a pallet lifterpallet truck is specially designed to lift and transport the widest variety of loads in stores and warehouses. Easy and convenient to work with, the trucks are fast and reliable for a vast range of materiel and goods handling jobs.
2.Body and frame
Almost any kind of load can be carried by the strong, torsion-resistant steel construction. Lead-in/lead-out rollers under the fork tips enable pallets to be entered across the bottom deck boards. Wheels Easy-running wheels made of hard-wearing polyurethene keep rolling resistance low. Two pieces wheel frame, avoiding rope to be wrapped in. Standard Polyurethane wheels of low rolling resistance, tandem load wheels. Fork length 1150mm. Truck width 530mm or 685mm. Ergonomically designed Linde control tiller. Steer wheel lock-to-lock 210 degrees with forks lifted. Packaged hydraulic lift unit. Fork lead-in/lead-out rollers. Quick lift function is available when the load weight is less than 2500kg.
Feature:
1. Hand brake / drive hand pallet truck
2.Easy 3 position control handle-- Raise, Lower, Neutral.
3. Ergonomic rubber wrapped handle, which is comfortable and convenient to operate.
4. Fork Lowering speed is controllable, operated by hand control and foot pedal.
5. Integrated casting pump without welding, with safety overload&bypass system
6.Hand pallet truck is with entry & exit rollers
7.Tope Balanceable reinforced fork frame
8.Solid steel lifting rods for extra strength
9.Optiions : Nylon wheel ,Rubber Wheel , gingle fork load wheel or tandem fork load wheel
10.Special requirements are available
11.Materials and specifications are subject to change without notice
Specifications
Find the Right Pallet Truck for You
Two types of wheel can choose
Product Show
Our advantages
1.One copper core oil valve group, oil pump service life longer;
Payment
CONTACT ME
Contact: Miss Sunny
Phone:86 15216011416
Hangzhou Dele Electrical Co.,Ltd
1.Sometimes known as a pallet jack or a pallet lifterpallet truck is specially designed to lift and transport the widest variety of loads in stores and warehouses. Easy and convenient to work with, the trucks are fast and reliable for a vast range of materiel and goods handling jobs.
2.Body and frame
Almost any kind of load can be carried by the strong, torsion-resistant steel construction. Lead-in/lead-out rollers under the fork tips enable pallets to be entered across the bottom deck boards. Wheels Easy-running wheels made of hard-wearing polyurethene keep rolling resistance low. Two pieces wheel frame, avoiding rope to be wrapped in. Standard Polyurethane wheels of low rolling resistance, tandem load wheels. Fork length 1150mm. Truck width 530mm or 685mm. Ergonomically designed Linde control tiller. Steer wheel lock-to-lock 210 degrees with forks lifted. Packaged hydraulic lift unit. Fork lead-in/lead-out rollers. Quick lift function is available when the load weight is less than 2500kg.
Feature:
1. Hand brake / drive hand pallet truck
2.Easy 3 position control handle-- Raise, Lower, Neutral.
3. Ergonomic rubber wrapped handle, which is comfortable and convenient to operate.
4. Fork Lowering speed is controllable, operated by hand control and foot pedal.
5. Integrated casting pump without welding, with safety overload&bypass system
6.Hand pallet truck is with entry & exit rollers
7.Tope Balanceable reinforced fork frame
8.Solid steel lifting rods for extra strength
9.Optiions : Nylon wheel ,Rubber Wheel , gingle fork load wheel or tandem fork load wheel
10.Special requirements are available
11.Materials and specifications are subject to change without notice
Specifications
| Hand Pallet Truck | ||||
| Model | BF | DF | ||
| Capacity | Q(kg) | 2500/3000 | 3500 | 2500/3000 |
| Service weight | kg | 65-80 | 100 | 65-77 |
| Fork wheel single | mm | 200/180 | 200/180 | 180 |
| Fork wheel tandem | mm | 80/74 | 80/74 | 80/74 |
| Max.lift height | h3(mm) | 115 | 115 | 110 |
| Max./min height of the handle in the drive position | h14 (mm) | 1224/1214 | 1234/1224 | 1233.5/1223.5 |
| Lowered fork height | h13(mm) | 85/75 | 85/75 | 85/75 |
| Overall length | l1(mm) | 1533(1483/1603) | 1533(1483/1603) | 1528.5/1598.5 |
| Fork size | s/e/l | 45/160/1150(1100/1220) | 53/160/1150(1100/1220) | 53/160/1150(1220) |
| Width overall forks | b5(mm) | 520/550/685 | 520/550/685 | 520/550/685 |
| Ground clearance,centre of wheelbase | m2(mm) | 40/30 | 32/22 | 32/22 |
| Aisle width for pallets 1000*1200 crossways | Ast(mm) | 1733/1803 | 1733/1803 | 1728.5/1798.5 |
| Aisle width for pallets 800*1200 lengthways | Ast(mm) | 1783/1803 | 1783/1803 | 1778.5/1798.5 |
| Turning radius | Wa(mm) | 1266/1336 | 1249/1319 | 1244.5/1314.5 |

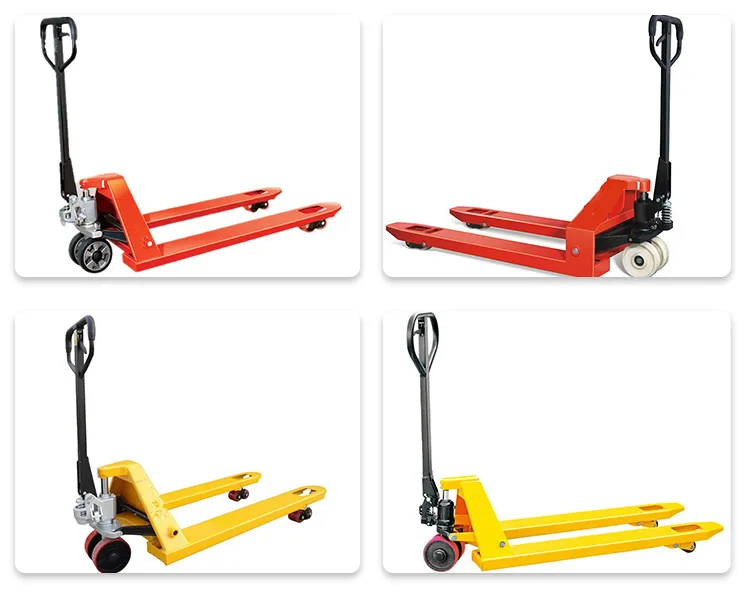

Find the Right Pallet Truck for You
Two types of wheel can choose

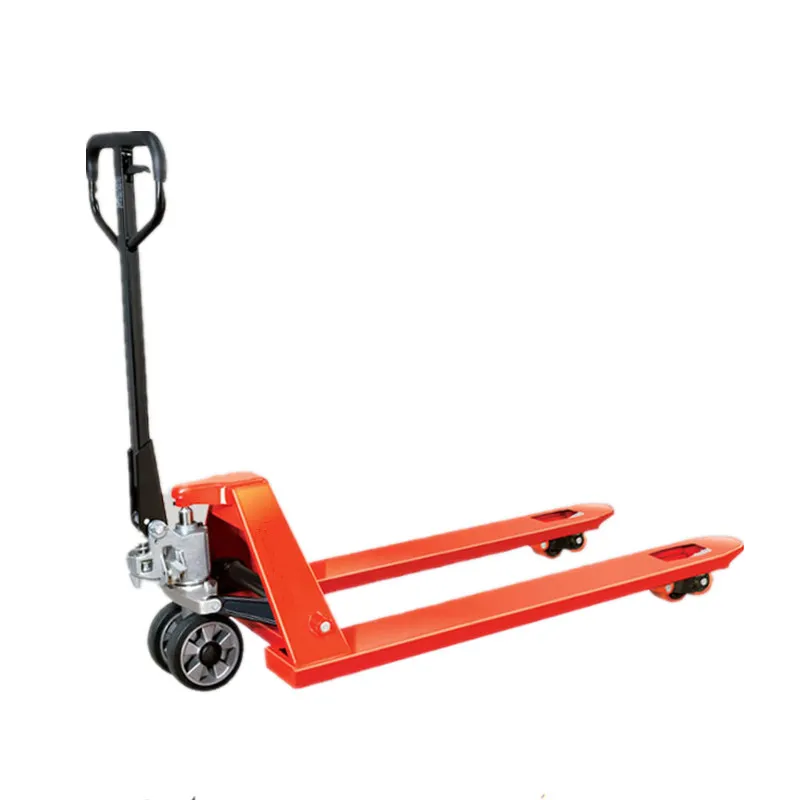

Product Show
Our advantages
1.One copper core oil valve group, oil pump service life longer;
2.Oil leak proof and reliable hydraulic system;
3.Three section of plastic handle;
4.Strong light steel structure;
5.Optional:
1)Nylon, PU, Rubber, single loading wheel, tandem loading wheel;
2)Fork length: 500-3000mm.
Payment
| Payment term | L/C | l/c amount above 40.000 usd,we can accept L/C at sight | |
| T/T | EXW | 30% T/T in advance,paid the balance before shipment | |
| FOB | |||
| CIF | 30% T/T in advance,paid the balance against copy of B/L | ||
| cfr(c&f) | |||
| paypal | amount lower than 4000usd | ||
| west | |||
| Delivery time | 15~35days after receiving payment for one container |
| We welcome use trade assurance,you`ll enjoy: 100% product quality protection 100% on-time shipment protection 100% payment protection for your covered amount |
CONTACT ME
Contact: Miss Sunny
Phone:86 15216011416
Hangzhou Dele Electrical Co.,Ltd
