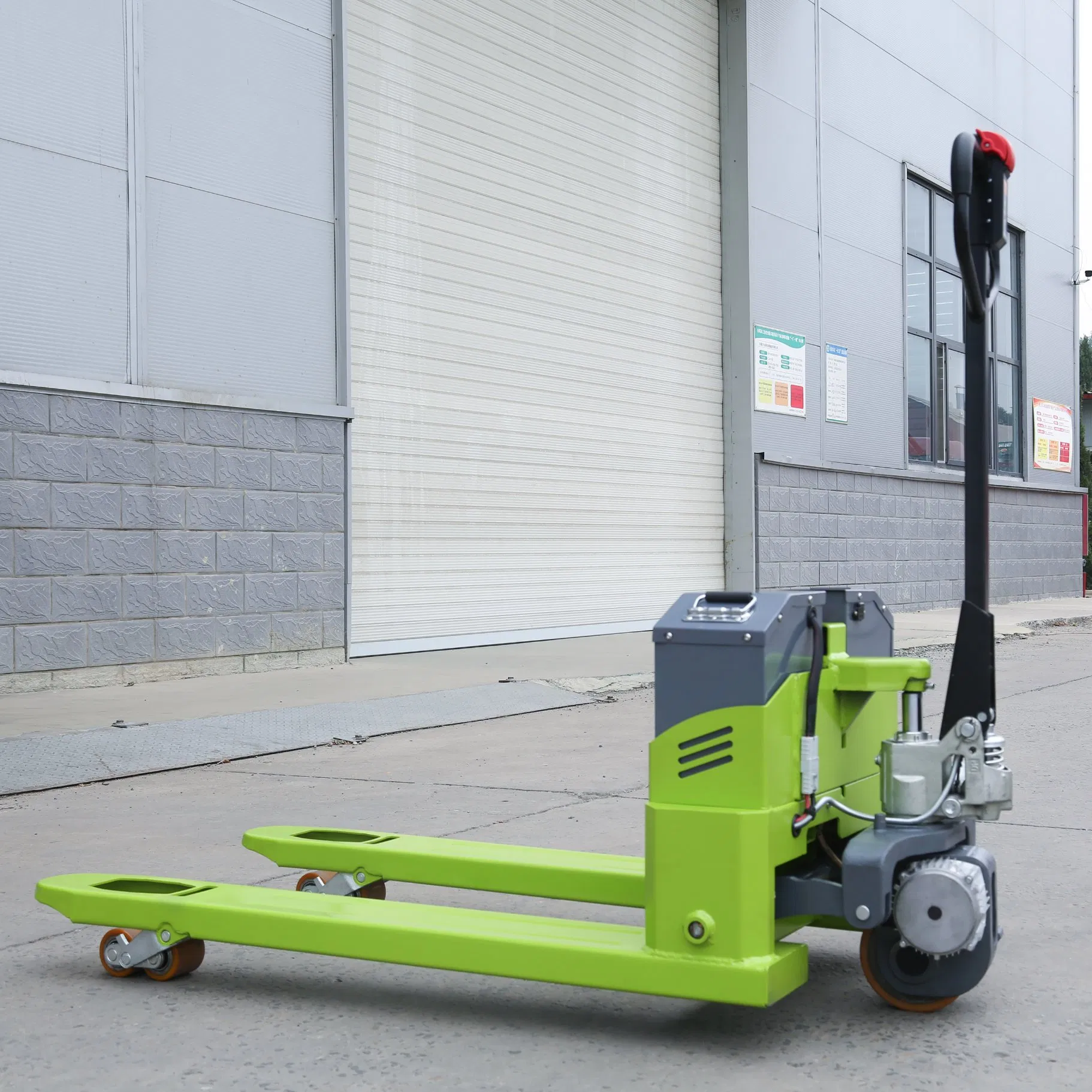

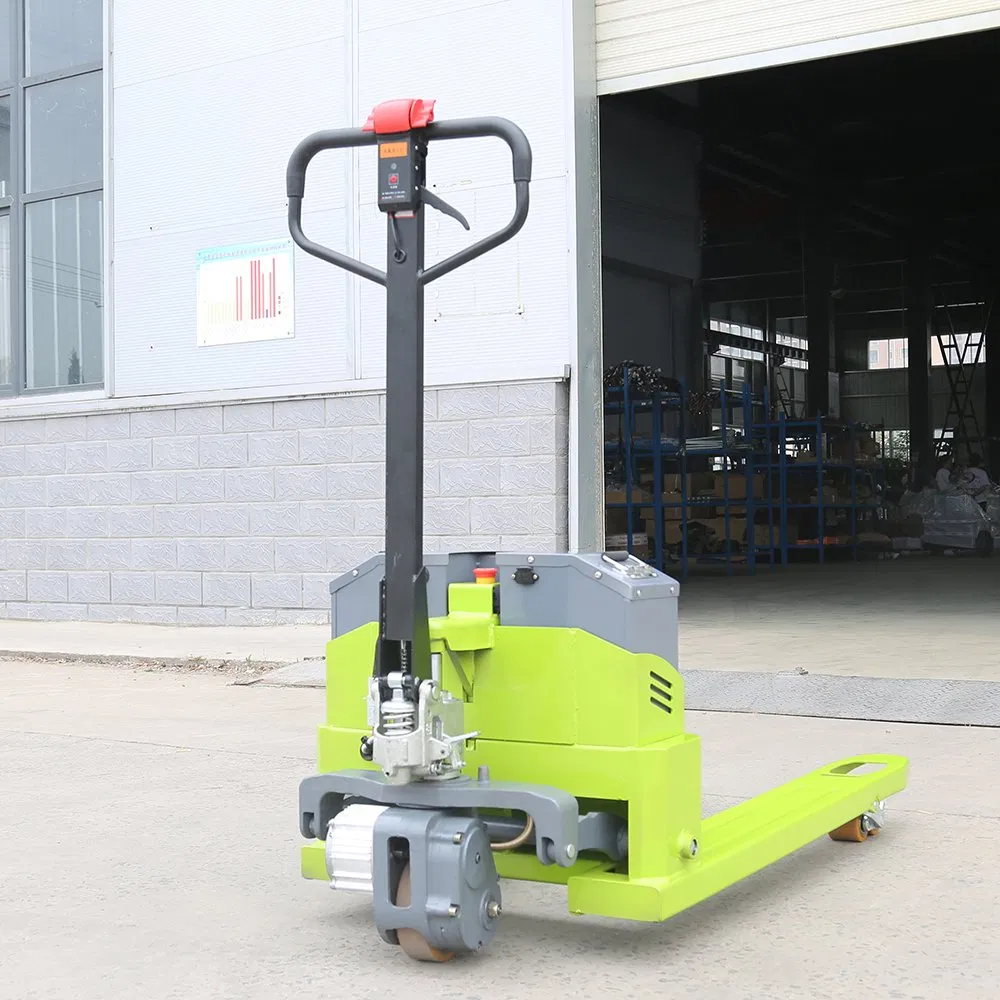

Factory Price Self Loading Lift Full Electric Pallet Truck

Product Description

Factory Price Self Loading Lift Full Electric Pallet Truck

Model		CTXB-15
Power Type		Lead Battery
Operation Type		Walking
Rated Capacity	kg	1500
Load Center	mm	600
Lifting Height	mm	200
Overall Dimension(L/W/H)	mm	1710×(550/685)×1370
Fork Sizes	mm	1150×155×55
Fork Width Min./Max.	mm	550/688
Min. Ground Clearance	mm	5
Turning Radius	mm	1300
Min.Right Angle Channel Width	mm	1500
Self-weight(with battery)	kg	175
Battery Weight	kg	20
Wheel Type (driving/turning)		Solid PU
Driving Wheel Sizes	mm	210×70
Loading Wheel Sizes	mm	85×70
Driving Motor	kw(60min)	0.85
Lifting Motor	kw(60min)	0.8
Battery Dimension	mm	271×174×213
Battery Voltage/Capacity	V/ah	2×12/60
Controller		DC
Working Pressure	mpa	14
Travel speed(laden/unladen)	km/h	3.5/4
Lifting speed(laden/unladen)	mm/s	27/31
Max Climbing Ability	%	4
Braking		electromagnetic induction
Driving Type		electric
Steering System		Manual
Noise Level		63
Waterproof Grade		IP54

WHAT WE CAN DO FOR YOU:
√Most competitive price by actively seeking the best options and manage the supply chain.
√A strong R&D Team and strict QC system ensure the quality
√Large stock and quick delivery than every competitor
√1-year warranty and best after-sale service support by our team.

HOW WE CAN GROW TOGETHER:
√Giving my best solution based on my professional experience
√Giving your best support on products perfect balance between performance and cost
√Help you develop and win more market share on your side

√We believe in delivering value through innovation, we believe in an open and honest relationship, we believe in speed-to-market. And DO NOT believe in shortcuts.
√If you have the same core value, we are glad to be your partner.
