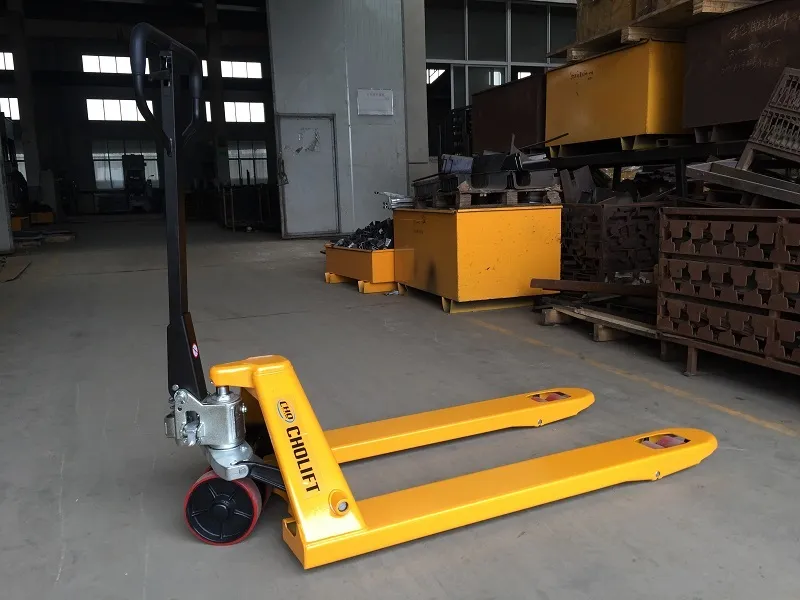

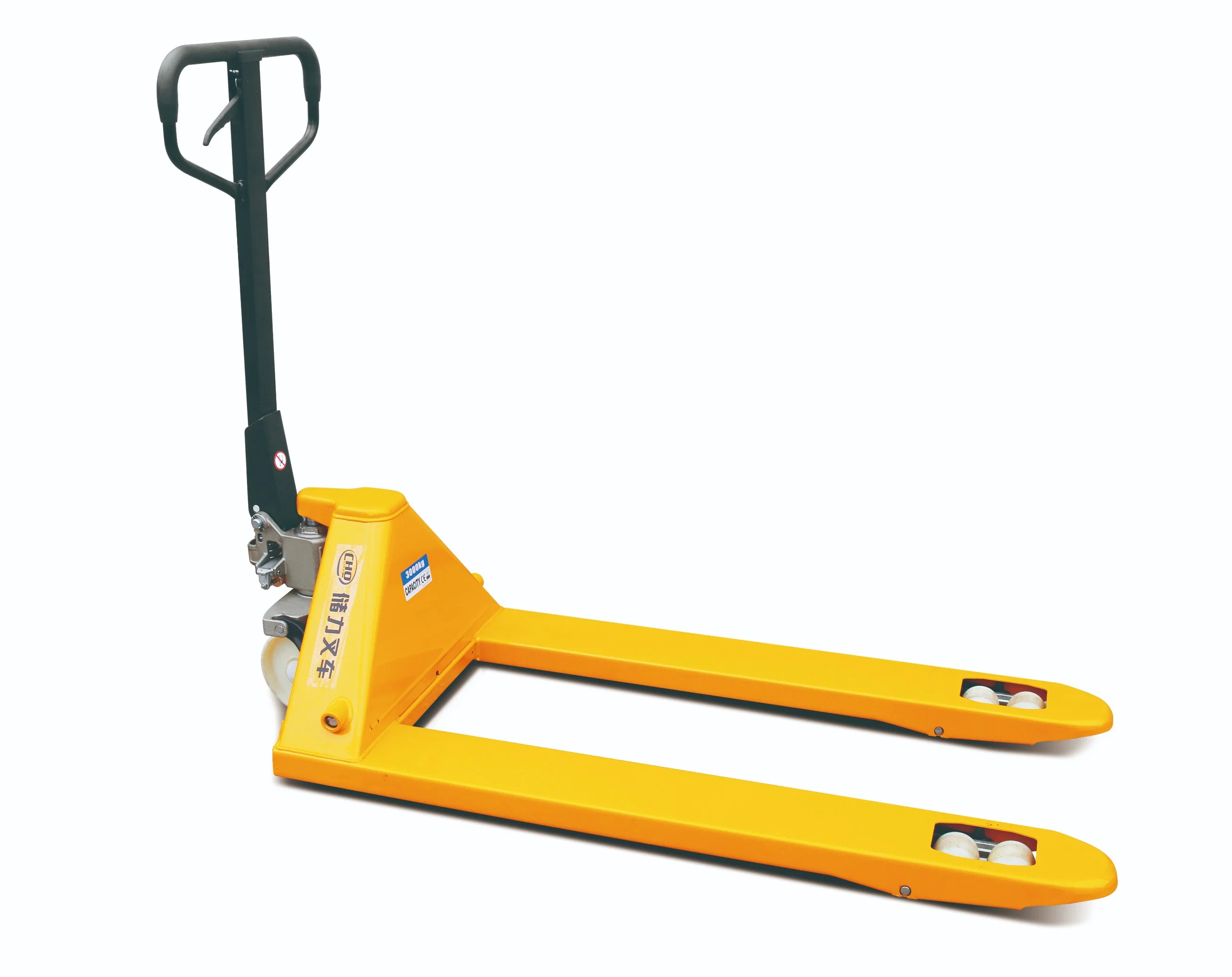

2500kgs Hand Pallet Trucks Sba Pallet Jack for Sale
2500kgs hand pallet truck MODEL SBA25 HYDRAULIC PUMP HAND PALLET TRUCK 1. Color : red/ yellow/ blue/ green/ black etc. Able to do as per customer request.2. Capacity: 2500kg, 3000,3500kg3. Fork Width: 520/550/685mm, can be customized4. Fork Length: 800/900/1150/1220 or other size customer need5.......
Send Inquiry
Product Description
2500kgs hand pallet truck MODEL SBA25
HYDRAULIC PUMP HAND PALLET TRUCK
1. Color : red/ yellow/ blue/ green/ black etc. Able to do as per customer request.
2. Capacity: 2500kg, 3000,3500kg
3. Fork Width: 520/550/685mm, can be customized
4. Fork Length: 800/900/1150/1220 or other size customer need
5. Packing: 6pcs/pallet, pallet size: 210*70*70cm
6. Advanced Robot welding ensure high strength, good finish, no bubble in the welding
7. With CE certificates, waiting for your order!

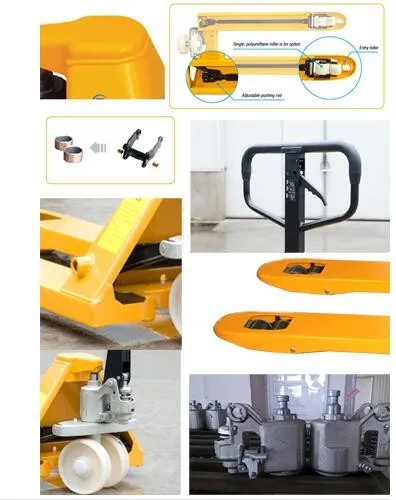

1. Galvanized casting pump with 3years warranty
2. Galvanized support base
3. Rubber wrapped handle
4. Perfect welding, ensures the high strengh
and beauty appearance
5. Curve design on top tips help truck in/ out pallet
6. With entry roller
7. Adjustable pushing rod

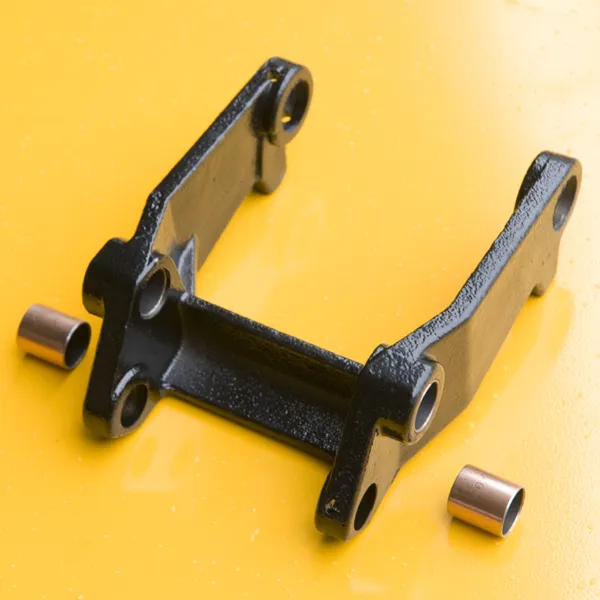

8. With copper bushing, no need to add grease,
reduce maintenance cost

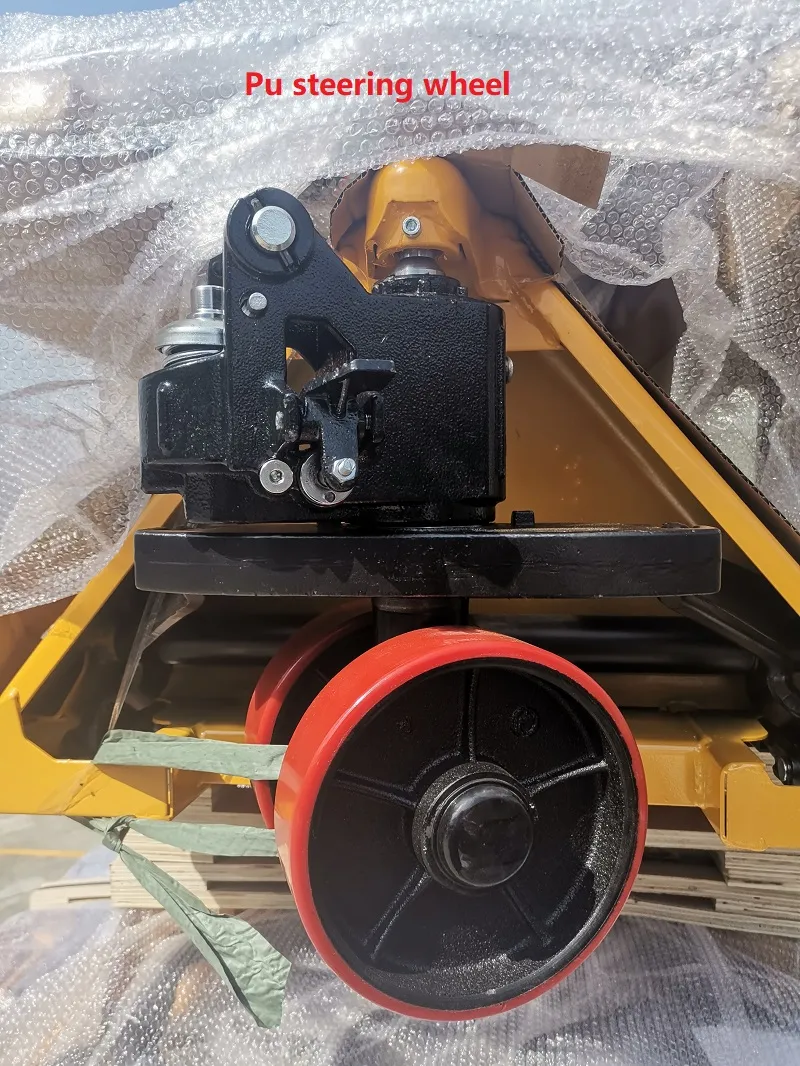

9. Rubber/ PU/ Nylon wheels for option
| Model | SBA | ||
| Load capacity/rated load | Q(kg) | 2500 | 3000 |
| Load centre distance | c (mm) | 500 | 500 |
| Net weight | kg | 70-80 | 70-80 |
| Tyre size,front | mm | Φ180*50 | Φ180*50 |
| Tyre size rear | mm | Φ70*60 | Φ70*60 |
| Lifting height | h 3(mm) | 190 | 190 |
| Height of tiller in drive position min./max. | h 14(mm) | 1234/1224 | 1234/1224 |
| Lowered height | h 13(mm) | 75 | 75 |
| Overall length | l 1(mm) | 1534/1604 | 1534/1604 |
| Fork dimensions | s/e/l | 54/150/1150 | 54/150/1150 |
| Distance between fork-arms | b 5(mm) | 520/550/685 | 520/550/685 |
| Aisle width for pallets 1000x1200 crossways | Ast(mm) | 1733/1803 | 1733/1803 |
| Aisle width for pallets 800x1200 lengthways | Ast(mm) | 1780/1800 | 1780/1800 |
| Turning radius | Wa (mm) | 1249/1319 | 1249/1319 |
