2K Injection Mould

A 2K injection mold, also known as a two-shot or two-component injection mold, is a specialized type of injection mold used to produce plastic parts with two different materials or colors in a single molding process. It allows the creation of complex and versatile products that incorporate multiple materials or colors in a seamless and efficient manner.

The 2K injection molding process typically involves the following steps:

1. Mold Design: The mold is designed to have two or more cavities, each corresponding to a specific part of the final product. The cavities are positioned in such a way that they allow the injection of different materials or colors in a sequential or simultaneous manner.

2. First Shot: In the first injection stage, the primary material is injected into the first cavity of the mold. This material forms the base or main part of the product.

3. Rotary or Indexing System: After the first shot, the mold typically rotates or indexes to position the second cavity for the second shot. Alternatively, some 2K injection molding machines have a movable injection unit to inject the second material without rotating the mold.

4. Second Shot: In the second injection stage, a different material or color is injected into the second cavity, bonding with the first shot material. The two materials fuse together to create the final product with two different colors or materials in specific areas.

5. Cooling and Ejection: The combined part is then allowed to cool and solidify within the mold. Once cooled, the mold opens, and the finished 2K molded part is ejected.

2K injection molding offers several advantages:

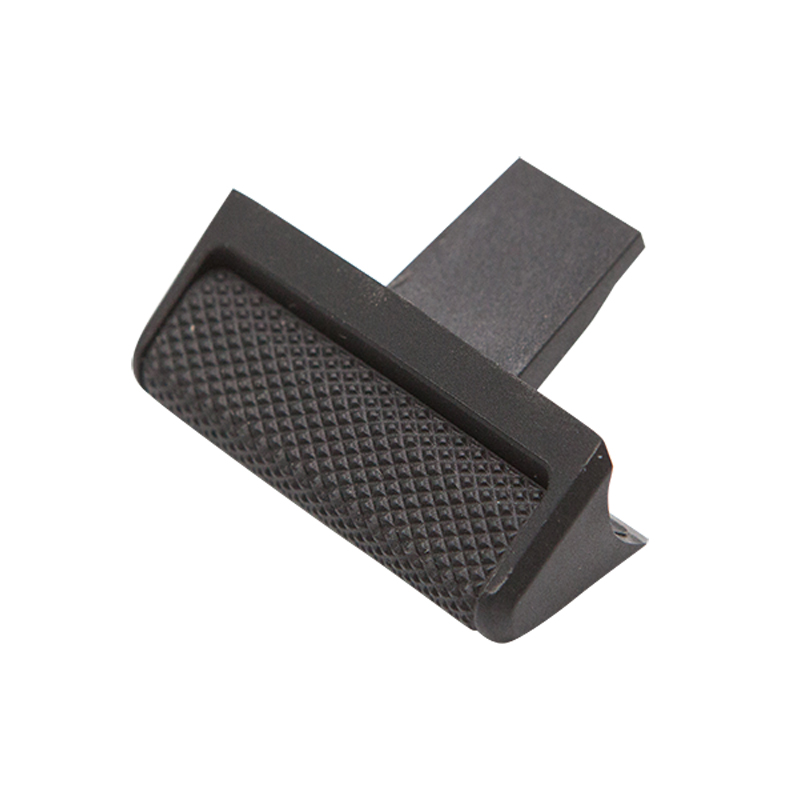

1. Enhanced Design Capabilities: With 2K injection molding, designers can create products with intricate designs, soft-touch surfaces, overmolding for added grip or functionality, and multiple color patterns.

2. Cost and Time Savings: Producing multi-material or multi-colored parts in a single molding cycle saves time and reduces the need for assembly processes, leading to cost savings in production.

3. Improved Product Performance: 2K molding allows for the combination of different materials with specific properties, enhancing the performance and functionality of the final product.

Applications of 2K injection molding include automotive components with soft-touch surfaces, multi-colored cosmetic packaging, medical devices with overmolded grips, and consumer electronics with integrated buttons or seals. The process is used in various industries where complex and visually appealing parts are required.
